037627 - Dodge - P4B522-TAF-400RE
Regular price
$1,935.06 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.

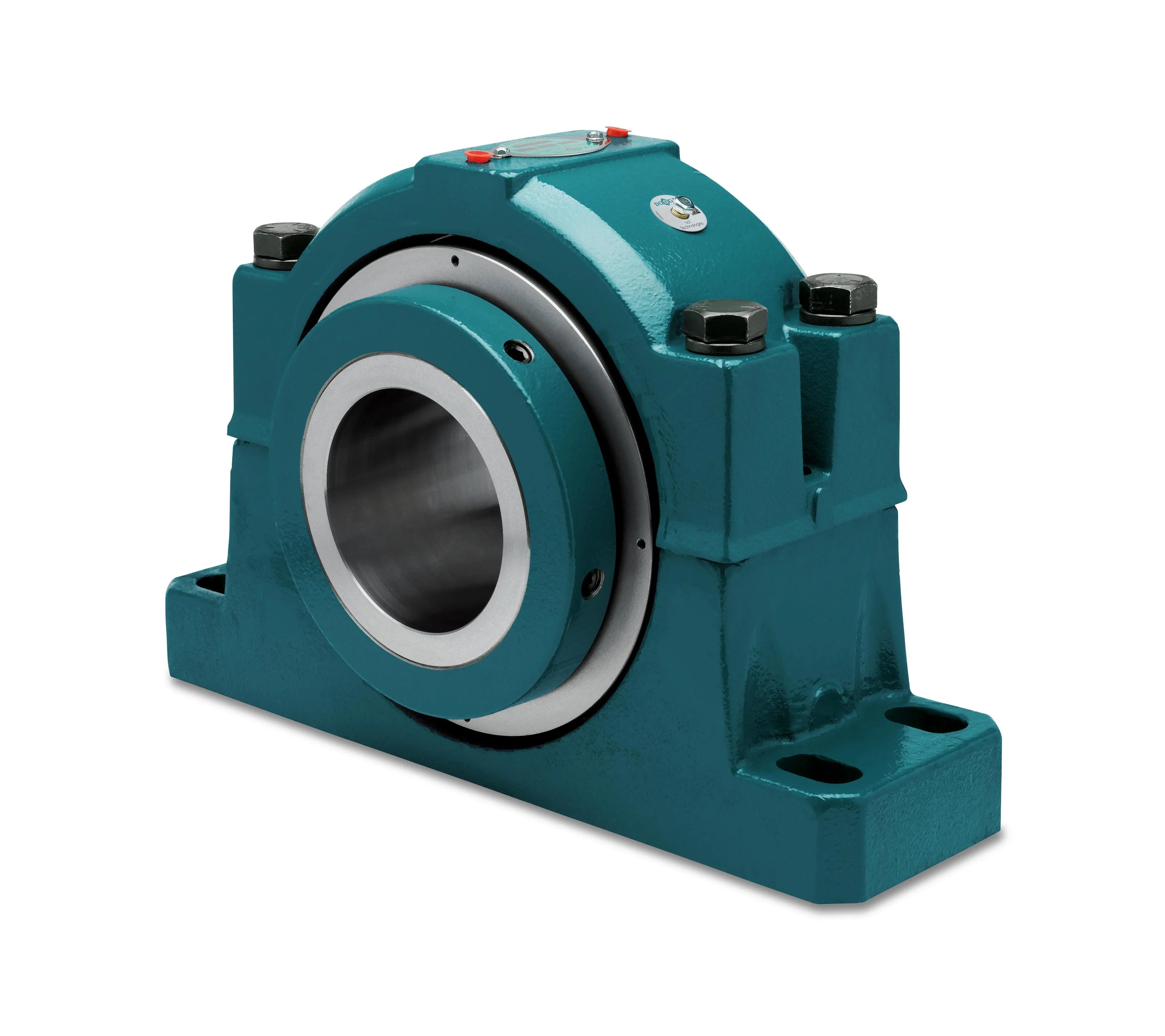

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
037627 - Dodge - P4B522-TAF-400RE
P4B522-TAF-400RE
Technical Specifications
| Base to Center Height | 4.9400 |
| Base to Center Height (Unit) | INCH |
| Bearing Type | Tapered Roller |
| Bolt Diameter | 0.7500 |
| Bolt Diameter (Unit) | INCH |
| Bolt to Bolt (Max) | 14.5000 |
| Bolt to Bolt (Max) (Unit) | INCH |
| Bolt to Bolt (Min) | 12.5900 |
| Bolt to Bolt (Min) (Unit) | INCH |
| Bolt Width | 2.7500 |
| Bolt Width (Unit) | INCH |
| Bore Length | 6.2500 |
| Bore Length (Unit) | INCH |
| CAD Link | https://dodge-embedded.partcommunity.com/3d-cad-models/?info=dodge/mounted_bearings/tapered_roller_bearings/taf/p4b_taf_ex_asmtab.prj&varset={SS=4},{SERIES=522},{PN=037627},{DESCRIPTION=P4b-taf-400re},{HF=4},{EF=Expansion Type},{A=6.25},{B=16.50},{C=4.75},{DMIN=12.59},{DMAX=14.50},{E=2.75},{F=3/4},{G=1.83},{H=1.78},{J=10.36},{K=3.125},{L=6},{M=4.94},{P=10.71},{T=0.34},{SC=154000},{DC=21000},{RN=26},{RMD=0.51},{PD=5.120},{EP=0.008/0.012},{CSS=5/8-11x1},{CST=1325},{HM=A48 CLASS 30},{CM=4118 CASE CARB.},{CUM=4118 CASE CARB.},{RM=STEEL},{ROM=4118 CASE CARB.},{SM=3.55}&hidePortlets=searchHeader |
| Dynamic Load Capacity | 24400 |
| Dynamic Load Capacity (Unit) | POUND_FORCE |
| Expansion Capability | Expansion (Float) |
| Grease Name | MobilGrease XHP222 |
| Housing Construction | Split |
| Housing Dimensional Standard | SAF |
| Housing Material | Cast Iron |
| Housing Type | Four-Bolt Pillow Block |
| Insert Material | Steel |
| Lubrication | Grease |
| Maximum Speed | 1530 |
| Maximum Speed (Unit) | RPM |
| Seal Type | Triple-Lip Contact |
| Shaft Attachment | Setscrew |
| Shaft Diameter | 4.0000 |
| Shaft Diameter (Unit) | INCH |
| Static Load Capacity | 154000 |
| Static Load Capacity (Unit) | POUND_FORCE |
| Take-Up Frame Size | HD-400,TS-500 |
