037580 - Dodge - P2B509-TAF-107R
Regular price
$459.65 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.

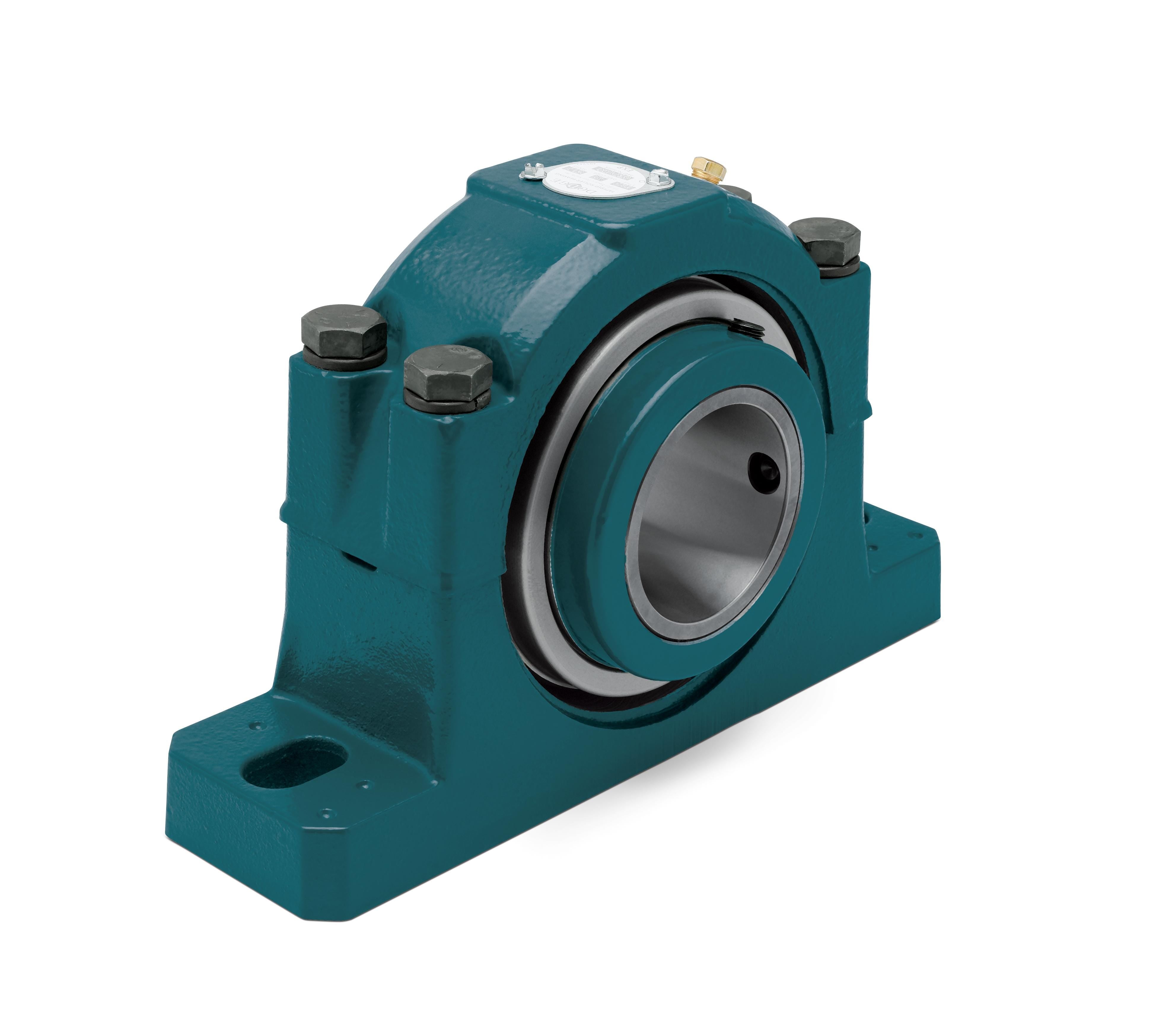

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
037580 - Dodge - P2B509-TAF-107R
P2B509-TAF-107R
Technical Specifications
| Base to Center Height | 2.2500 |
| Base to Center Height (Unit) | INCH |
| Bearing Type | Tapered Roller |
| Bolt Diameter | 0.5000 |
| Bolt Diameter (Unit) | INCH |
| Bolt to Bolt (Max) | 7.0000 |
| Bolt to Bolt (Max) (Unit) | INCH |
| Bolt to Bolt (Min) | 6.2500 |
| Bolt to Bolt (Min) (Unit) | INCH |
| Bore Length | 3.0000 |
| Bore Length (Unit) | INCH |
| CAD Link | https://dodge-embedded.partcommunity.com/3d-cad-models/?info=dodge/mounted_bearings/tapered_roller_bearings/taf/p2b_taf_nex_asmtab.prj&varset={SS=1-7/16},{SERIES=509},{PN=037580},{DESCRIPTION=P2b-taf-107r},{HF=2},{EF=Non Expansion Type},{A=3},{B=8.25},{C=2.19},{DMIN=6.25},{DMAX=7.00},{E=N/A},{F=1/2},{G=0.93},{H=0.88},{J=5.11},{K=1.50},{L=2.75},{M=2.25},{P=5.51},{T=0.09},{SC=26000},{DC=4760},{RN=20},{RMD=0.29},{PD=2.084},{EP=0.004/0.012},{CSS=5/16-18x5/8},{CST=165},{HM=A48 CLASS 30},{CM=4118 CASE CARB.},{CUM=4118 CASE CARB.},{RM=STEEL},{ROM=4118 CASE CARB.},{SM=2.84}&hidePortlets=searchHeader |
| Dynamic Load Capacity | 5500 |
| Dynamic Load Capacity (Unit) | POUND_FORCE |
| Expansion Capability | Non-Expansion (Fixed) |
| Grease Name | MobilGrease XHP222 |
| Housing Construction | Split |
| Housing Dimensional Standard | SAF |
| Housing Material | Cast Iron |
| Housing Type | Two-Bolt Pillow Block |
| Insert Material | Steel |
| Insert Outer Diameter | 3.2500 |
| Insert Outer Diameter (Unit) | INCH |
| Lubrication | Grease |
| Maximum Speed | 3820 |
| Maximum Speed (Unit) | RPM |
| Seal Type | Triple-Lip Contact |
| Shaft Attachment | Setscrew |
| Shaft Diameter | 1.4375 |
| Shaft Diameter (Unit) | INCH |
| Static Load Capacity | 26000 |
| Static Load Capacity (Unit) | POUND_FORCE |
