023690 - Dodge - P4B-E-315R TYPE E-XTRA
Regular price
$1,571.33 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.

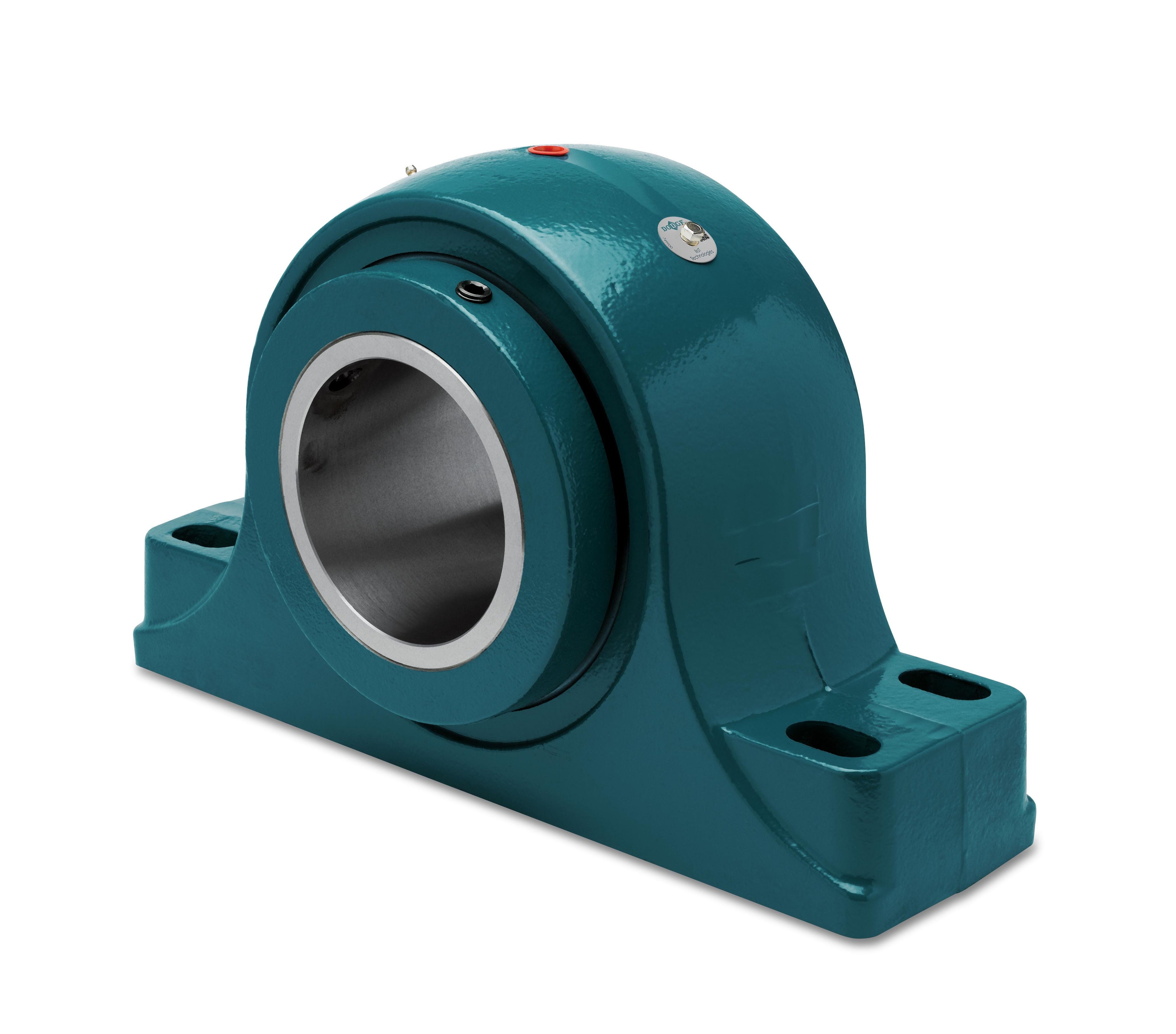

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
023690 - Dodge - P4B-E-315R TYPE E-XTRA
P4B-E-315R
Technical Specifications
| Base to Center Height | 4.2500 |
| Base to Center Height (Unit) | INCH |
| Bearing Type | Tapered Roller |
| Bolt Diameter | 0.7500 |
| Bolt Diameter (Unit) | INCH |
| Bolt to Bolt (Max) | 12.7500 |
| Bolt to Bolt (Max) (Unit) | INCH |
| Bolt to Bolt (Min) | 12.2500 |
| Bolt to Bolt (Min) (Unit) | INCH |
| Bolt Width | 2.2500 |
| Bolt Width (Unit) | INCH |
| Bore Length | 6.2500 |
| Bore Length (Unit) | INCH |
| CAD Link | https://dodge-embedded.partcommunity.com/3d-cad-models/?info=dodge/mounted_bearings/tapered_roller_bearings/type_e/p4b_gi_asmtab.prj&varset={SS=3-15/16},{PN=023690},{DESCRIPTION=P4B-E-315R},{A=6-1/4},{B=15-1/4},{C=4-1/2},{DMIN=12-1/4},{DMAX=12-3/4},{E=2-1/4},{F=3/4},{G=1-1/8},{H=2-7/16},{J=8-1/2},{J1=8-7/16},{L=6},{M=4-1/4}&hidePortlets=searchHeader |
| Dynamic Load Capacity | 24400 |
| Dynamic Load Capacity (Unit) | POUND_FORCE |
| Expansion Capability | Non-Expansion (Fixed) |
| Grease Name | MobilGrease XHP222 |
| Housing Construction | Solid |
| Housing Dimensional Standard | Type E |
| Housing Material | Cast Iron |
| Housing Type | Four-Bolt Pillow Block |
| Insert Material | Steel |
| Lubrication | Grease |
| Maximum Speed | 1530 |
| Maximum Speed (Unit) | RPM |
| Seal Type | Triple-Lip Contact |
| Shaft Attachment | Setscrew |
| Shaft Diameter | 3.9375 |
| Shaft Diameter (Unit) | INCH |
| Static Load Capacity | 154000 |
| Static Load Capacity (Unit) | POUND_FORCE |
| Take-Up Frame Size | HD-400 |
