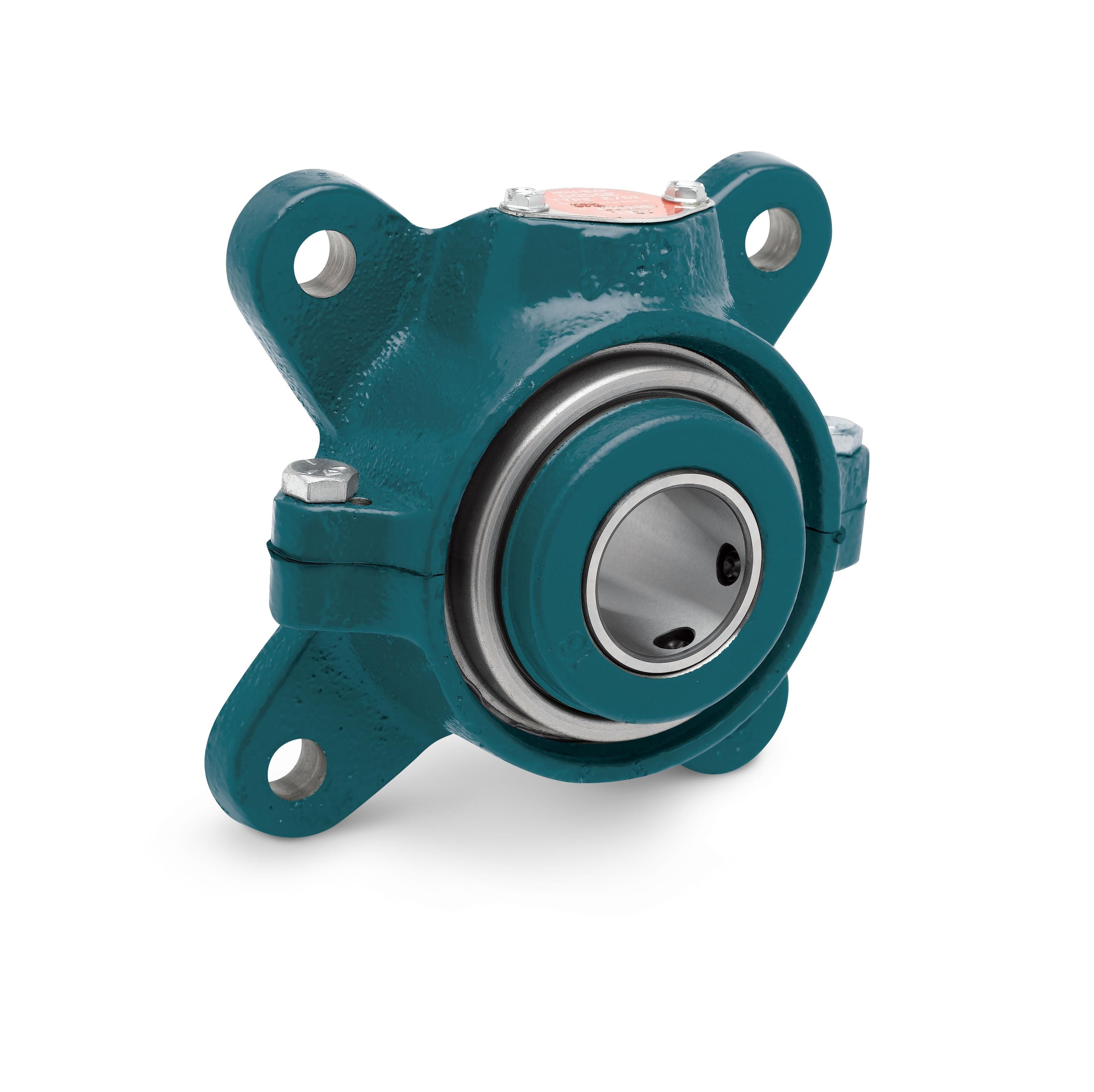

023474 - Dodge - F4B-DI-315RE DBL INTERLOCK
F4B-DI-315RE DBL INTERLOCK
Technical Specifications
| Bearing Type | Tapered Roller |
| Bolt Circle | 13.0000 |
| Bolt Circle (Unit) | INCH |
| Bolt Diameter | 1.0000 |
| Bolt Diameter (Unit) | INCH |
| Bolt to Bolt (Max) | 9.1920 |
| Bolt to Bolt (Max) (Unit) | INCH |
| Bolt to Bolt (Min) | 9.1920 |
| Bolt to Bolt (Min) (Unit) | INCH |
| Bore Length | 6.2500 |
| Bore Length (Unit) | INCH |
| CAD Link | https://dodge-embedded.partcommunity.com/3d-cad-models/?info=dodge/mounted_bearings/tapered_roller_bearings/double_interlock/f4b_di_exp_asmtab.prj&varset={SS=3-15/16},{PN=023474},{DESCRIPTION=F4B-DI-315RE},{EF=Expansion Type},{A=6-1/4},{B=11-7/16},{C=4-5/8},{D=13},{E=3/4},{F=1},{G=12-7/8},{H=13/16},{J=9-3/16},{L=6},{T=5/16}&hidePortlets=searchHeader |
| Dynamic Load Capacity | 24400 |
| Dynamic Load Capacity (Unit) | POUND_FORCE |
| Expansion Capability | Expansion (Float) |
| Grease Name | MobilGrease XHP222 |
| Housing Construction | Split |
| Housing Material | Ductile Iron |
| Housing Type | Four-Bolt Flange (Square) |
| Insert Material | Steel |
| Lubrication | Grease |
| Maximum Speed | 1530 |
| Maximum Speed (Unit) | RPM |
| Seal Type | Triple-Lip Contact |
| Sensor Ready | Adapter Required |
| Shaft Attachment | Setscrew |
| Shaft Diameter | 3.9375 |
| Shaft Diameter (Unit) | INCH |
| Static Load Capacity | 154000 |
| Static Load Capacity (Unit) | POUND_FORCE |
