023440 - Dodge - F4B-DI-300R DBL INTERLOCK
Regular price
$1,950.02 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.

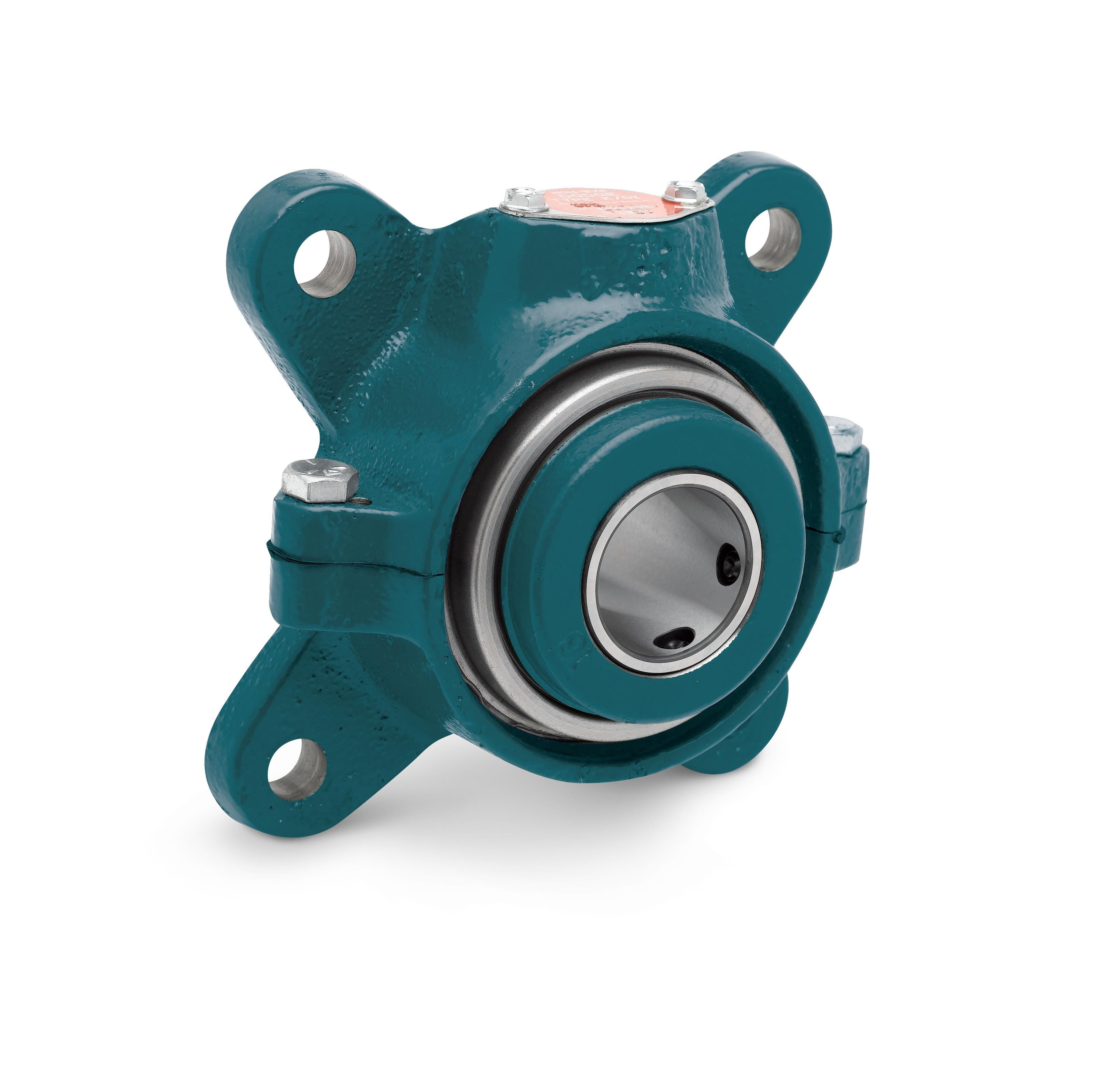

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
023440 - Dodge - F4B-DI-300R DBL INTERLOCK
F4B-DI-300R DBL INTERLOCK
Technical Specifications
| Bearing Type | Tapered Roller |
| Bolt Circle | 9.7500 |
| Bolt Circle (Unit) | INCH |
| Bolt Diameter | 0.7500 |
| Bolt Diameter (Unit) | INCH |
| Bolt to Bolt (Max) | 6.8900 |
| Bolt to Bolt (Max) (Unit) | INCH |
| Bolt to Bolt (Min) | 6.8900 |
| Bolt to Bolt (Min) (Unit) | INCH |
| Bore Length | 4.5000 |
| Bore Length (Unit) | INCH |
| CAD Link | https://dodge-embedded.partcommunity.com/3d-cad-models/?info=dodge/mounted_bearings/tapered_roller_bearings/double_interlock/f4b_di_ne_asmtab.prj&varset={SS=3},{PN=023440},{DESCRIPTION=F4B-DI-300R DBL INTERLOCK},{EF=Non-Expansion Type},{A=4-1/2},{B=8-7/8},{C=3-11/32},{D=9-3/4},{E=1/2},{F=3/4},{G=9-1/2},{H=11/16},{J=6-57/64},{L=4-23/32}&hidePortlets=searchHeader |
| Dynamic Load Capacity | 11120 |
| Dynamic Load Capacity (Unit) | POUND_FORCE |
| Expansion Capability | Non-Expansion (Fixed) |
| Grease Name | MobilGrease XHP222 |
| Housing Construction | Split |
| Housing Material | Ductile Iron |
| Housing Type | Four-Bolt Flange (Square) |
| Insert Material | Steel |
| Lubrication | Grease |
| Maximum Speed | 2060 |
| Maximum Speed (Unit) | RPM |
| Seal Type | Triple-Lip Contact |
| Sensor Ready | Adapter Required |
| Shaft Attachment | Setscrew |
| Shaft Diameter | 3.0000 |
| Shaft Diameter (Unit) | INCH |
| Static Load Capacity | 61200 |
| Static Load Capacity (Unit) | POUND_FORCE |
