023420 - Dodge - P4B-DI-615RE DBL INTERLOCK
Regular price
$15,099.42 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.

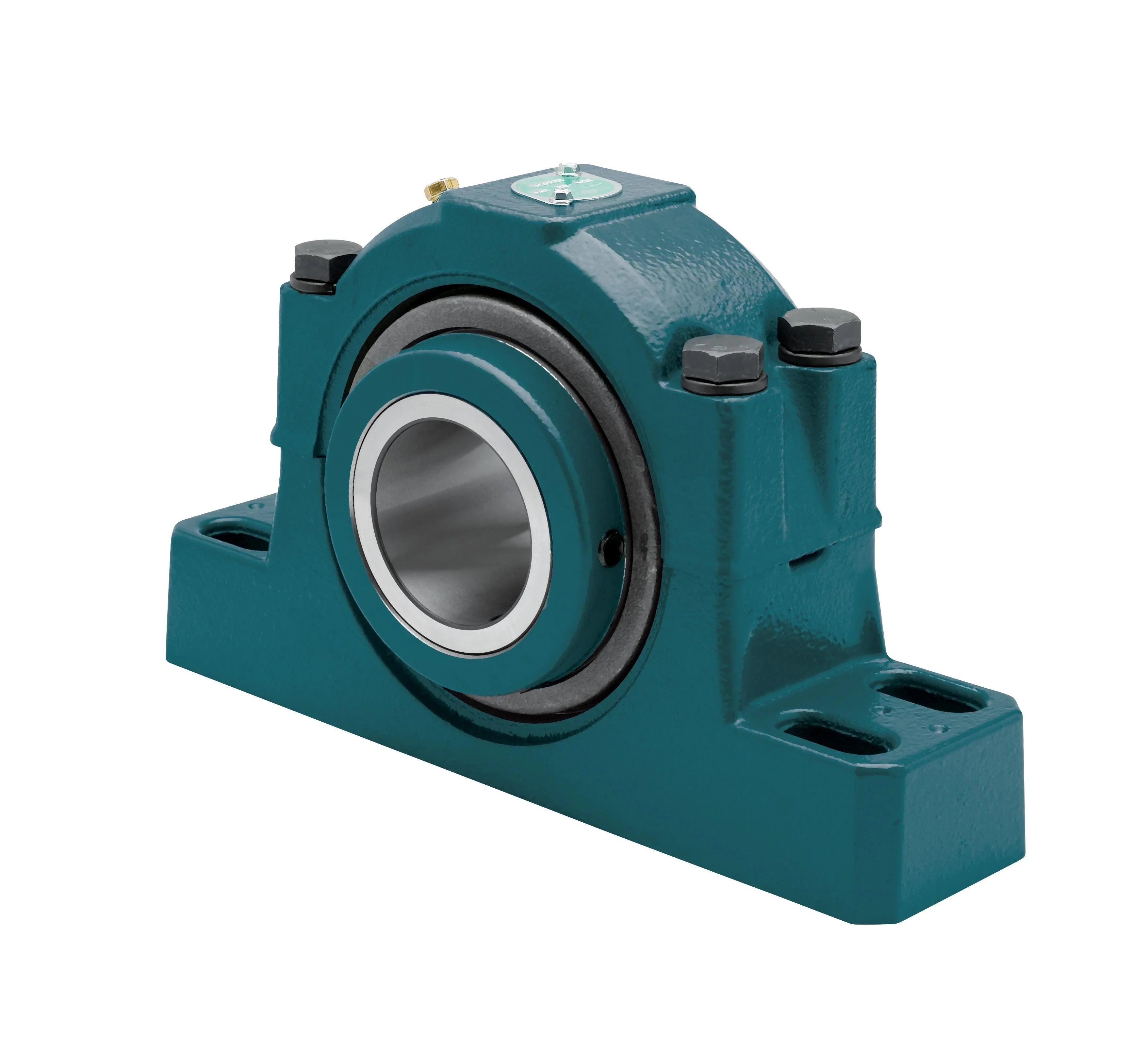

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
023420 - Dodge - P4B-DI-615RE DBL INTERLOCK
P4B-DI-615RE
Technical Specifications
| Base to Center Height | 8.6250 |
| Base to Center Height (Unit) | INCH |
| Bearing Type | Tapered Roller |
| Bolt Diameter | 1.1250 |
| Bolt Diameter (Unit) | INCH |
| Bolt to Bolt (Max) | 29.0000 |
| Bolt to Bolt (Max) (Unit) | INCH |
| Bolt to Bolt (Min) | 21.6250 |
| Bolt to Bolt (Min) (Unit) | INCH |
| Bolt Width | 3.7500 |
| Bolt Width (Unit) | INCH |
| Bore Length | 10.5000 |
| Bore Length (Unit) | INCH |
| CAD Link | https://dodge-embedded.partcommunity.com/3d-cad-models/?info=dodge/mounted_bearings/tapered_roller_bearings/double_interlock/p2b_p4b_asmtab.prj&varset={SS=6-15/16},{PN=023420},{DESCRIPTION=P4B-DI-615RE DBL INTERLOCK},{EF=Expansion Type},{A=10-1/2},{B=29},{C=7-1/2},{DMIN=21-5/8},{DMAX=25-3/8},{E=3-3/4},{F=1-1/8},{G=3-1/8},{H=4-1/4},{J=17-5/16},{L=11-3/8},{M=8-5/8},{P=18-3/8},{T=15/32}&hidePortlets=searchHeader |
| Dynamic Load Capacity | 69200 |
| Dynamic Load Capacity (Unit) | POUND_FORCE |
| Expansion Capability | Expansion (Float) |
| Grease Name | MobilGrease XHP222 |
| Housing Construction | Split |
| Housing Material | Cast Iron |
| Housing Type | Four-Bolt Pillow Block |
| Insert Material | Steel |
| Lubrication | Grease |
| Maximum Speed | 790 |
| Maximum Speed (Unit) | RPM |
| Seal Type | Triple-Lip Contact |
| Shaft Attachment | Setscrew |
| Shaft Diameter | 6.9375 |
| Shaft Diameter (Unit) | INCH |
| Static Load Capacity | 574000 |
| Static Load Capacity (Unit) | POUND_FORCE |
