023399 - Dodge - P4B-DI-207RE DBL INTERLOCK
Regular price
$1,186.91 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.

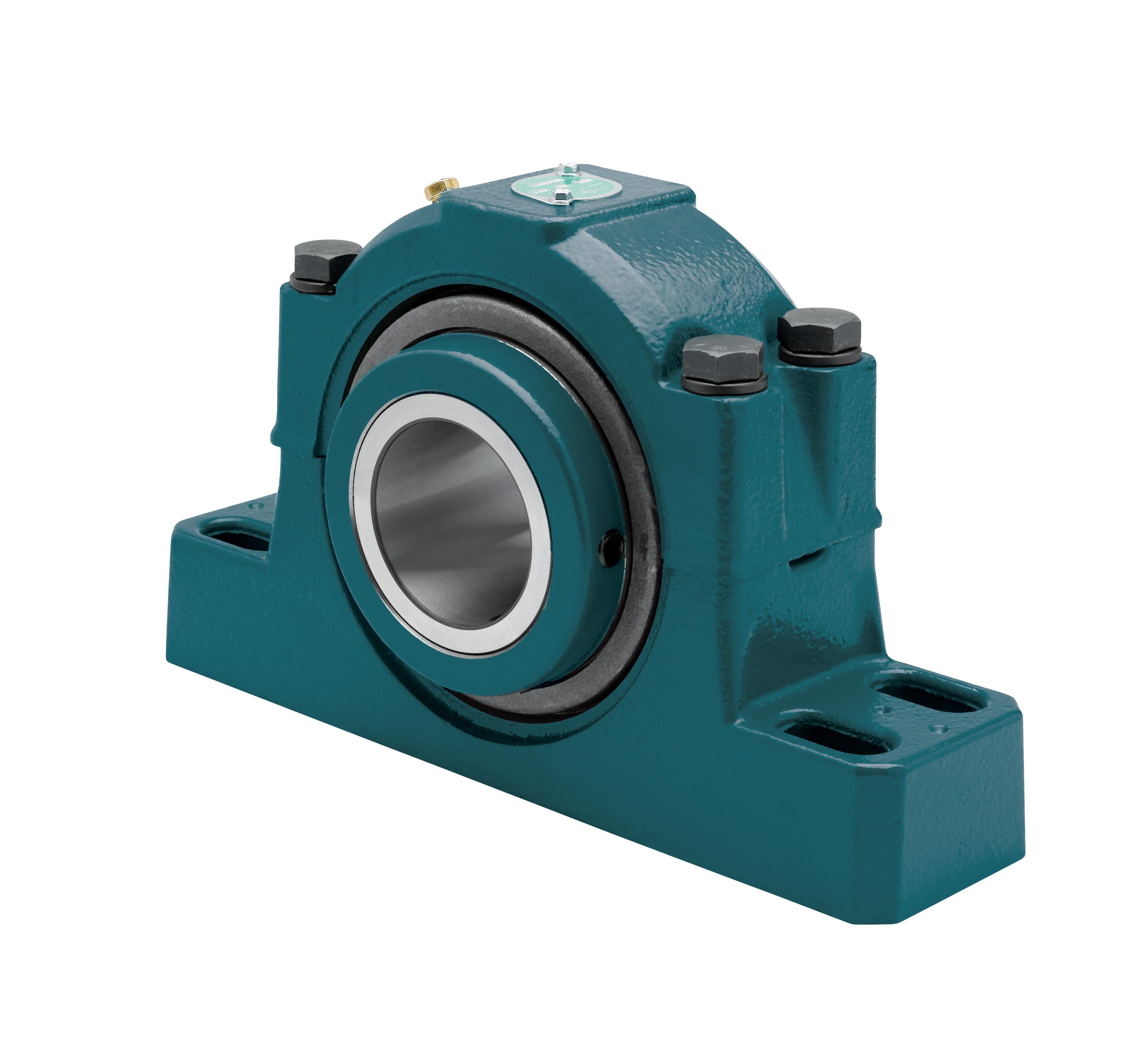

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
023399 - Dodge - P4B-DI-207RE DBL INTERLOCK
P4B-DI-207RE
Technical Specifications
| Base to Center Height | 3.2500 |
| Base to Center Height (Unit) | INCH |
| Bearing Type | Tapered Roller |
| Bolt Diameter | 0.5000 |
| Bolt Diameter (Unit) | INCH |
| Bolt to Bolt (Max) | 10.2500 |
| Bolt to Bolt (Max) (Unit) | INCH |
| Bolt to Bolt (Min) | 9.2700 |
| Bolt to Bolt (Min) (Unit) | INCH |
| Bolt Width | 1.7500 |
| Bolt Width (Unit) | INCH |
| Bore Length | 4.0000 |
| Bore Length (Unit) | INCH |
| CAD Link | https://dodge-embedded.partcommunity.com/3d-cad-models/?info=dodge/mounted_bearings/tapered_roller_bearings/double_interlock/p2b_p4b_asmtab.prj&varset={SS=2-7/16},{PN=023399},{DESCRIPTION=P4B-DI-207RE DBL INTERLOCK},{EF=Expansion Type},{A=4},{B=12},{C=3.38},{DMIN=9.26},{DMAX=10.25},{E=1.75},{F=1/2},{G=1.06},{H=1.75},{J=7.03},{L=4.06},{M=3.25},{P=7.37},{T=0.28}&hidePortlets=searchHeader |
| Dynamic Load Capacity | 10600 |
| Dynamic Load Capacity (Unit) | POUND_FORCE |
| Expansion Capability | Expansion (Float) |
| Grease Name | MobilGrease XHP222 |
| Housing Construction | Split |
| Housing Material | Cast Iron |
| Housing Type | Four-Bolt Pillow Block |
| Insert Material | Steel |
| Insert Outer Diameter | 4.8100 |
| Insert Outer Diameter (Unit) | INCH |
| Lubrication | Grease |
| Maximum Speed | 2420 |
| Maximum Speed (Unit) | RPM |
| Seal Type | Triple-Lip Contact |
| Shaft Attachment | Setscrew |
| Shaft Diameter | 2.4375 |
| Shaft Diameter (Unit) | INCH |
| Static Load Capacity | 54000 |
| Static Load Capacity (Unit) | POUND_FORCE |
| Take-Up Frame Size | HD-250 |
