023367 - Dodge - P4B-DI-500R DBL INTERLOCK
Regular price
$6,729.21 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.

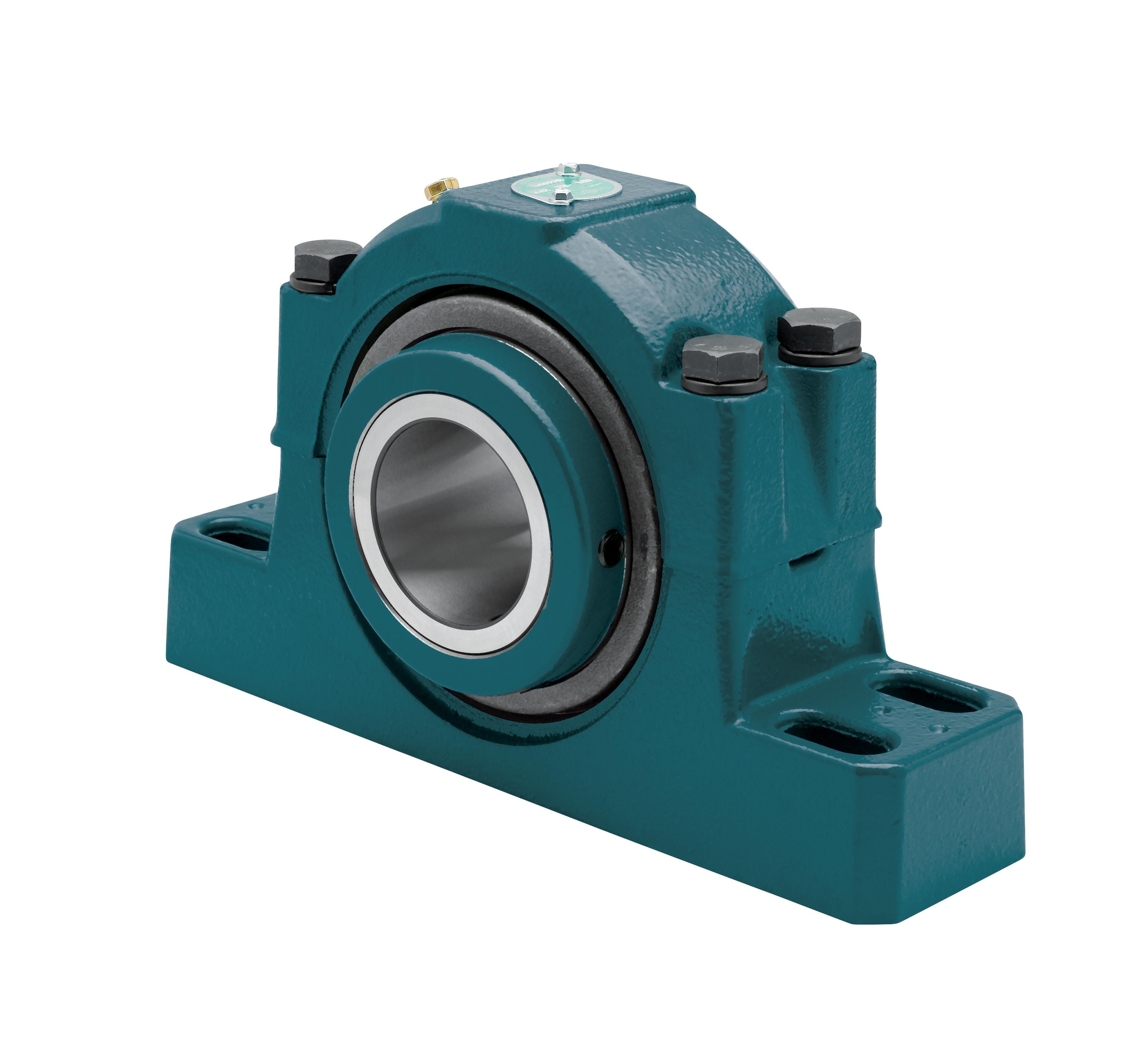

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
023367 - Dodge - P4B-DI-500R DBL INTERLOCK
P4B-DI-500R
Technical Specifications
| Base to Center Height | 6.2500 |
| Base to Center Height (Unit) | INCH |
| Bearing Type | Tapered Roller |
| Bolt Diameter | 0.8750 |
| Bolt Diameter (Unit) | INCH |
| Bolt to Bolt (Max) | 18.0600 |
| Bolt to Bolt (Max) (Unit) | INCH |
| Bolt to Bolt (Min) | 15.5000 |
| Bolt to Bolt (Min) (Unit) | INCH |
| Bolt Width | 2.5000 |
| Bolt Width (Unit) | INCH |
| Bore Length | 7.2500 |
| Bore Length (Unit) | INCH |
| CAD Link | https://dodge-embedded.partcommunity.com/3d-cad-models/?info=dodge/mounted_bearings/tapered_roller_bearings/double_interlock/p2b_p4b_asmtab.prj&varset={SS=5},{PN=023367},{DESCRIPTION=P4B-DI-500R DBL INTERLOCK},{EF=Non-Expansion Type},{A=7.25},{B=20.5},{C=5.13},{DMIN=15.50},{DMAX=18.06},{E=2.50},{F=7/8},{G=2.28},{H=3.25},{J=12.83},{L=7.45},{M=6.25},{P=13.36},{T=0.34}&hidePortlets=searchHeader |
| Dynamic Load Capacity | 41310 |
| Dynamic Load Capacity (Unit) | POUND_FORCE |
| Expansion Capability | Non-Expansion (Fixed) |
| Grease Name | MobilGrease XHP222 |
| Housing Construction | Split |
| Housing Material | Cast Iron |
| Housing Type | Four-Bolt Pillow Block |
| Insert Material | Steel |
| Lubrication | Grease |
| Maximum Speed | 1200 |
| Maximum Speed (Unit) | RPM |
| Seal Type | Triple-Lip Contact |
| Shaft Attachment | Setscrew |
| Shaft Diameter | 5.0000 |
| Shaft Diameter (Unit) | INCH |
| Static Load Capacity | 266000 |
| Static Load Capacity (Unit) | POUND_FORCE |
| Take-Up Frame Size | HD-500,TS-500 |
