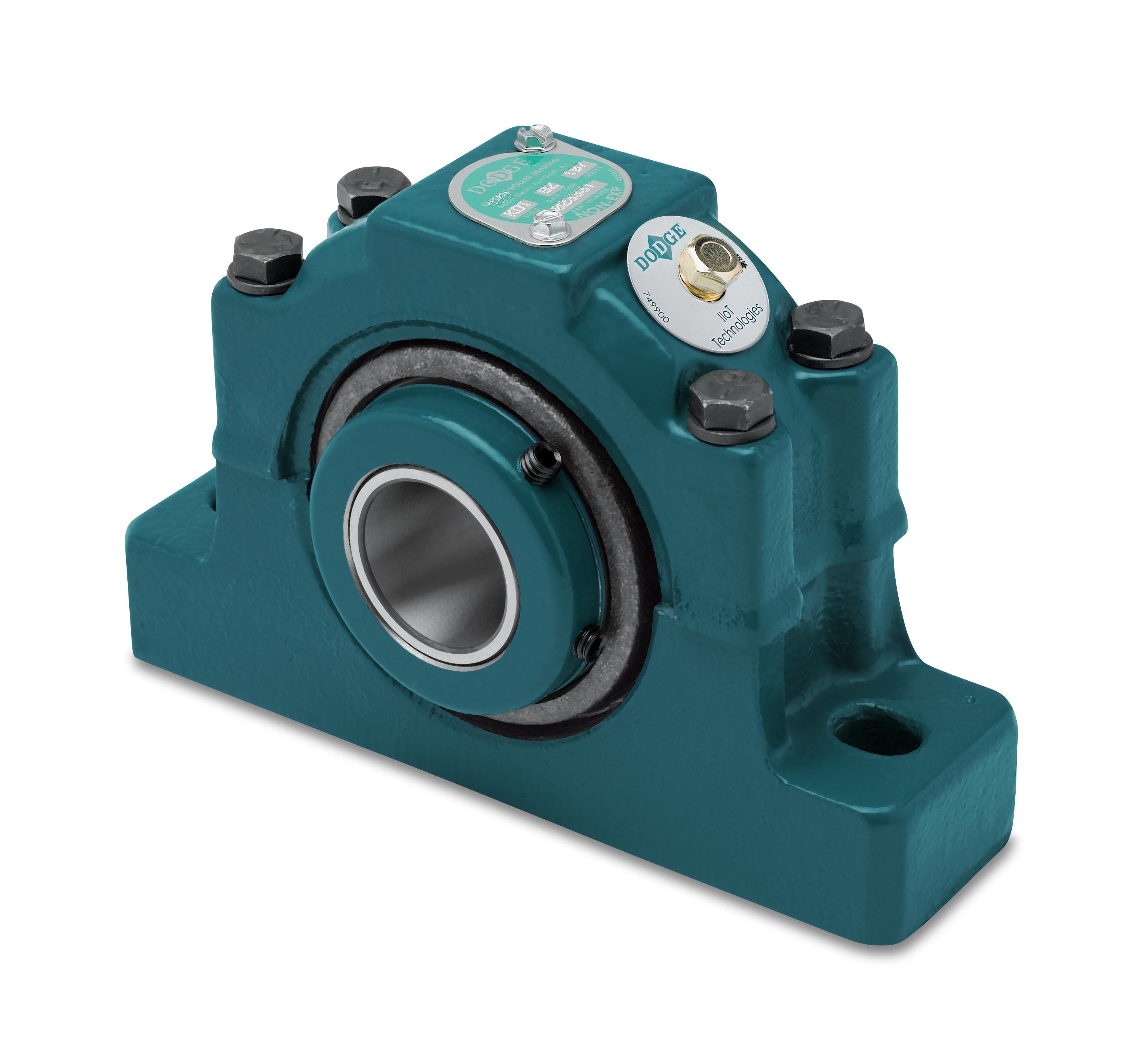

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
023332 - Dodge - P2B-DI-108R DBL INTERLOCK
P2B-DI-108R
Technical Specifications
| Base to Center Height | 2.6300 |
| Base to Center Height (Unit) | INCH |
| Bearing Type | Tapered Roller |
| Bolt Diameter | 0.5000 |
| Bolt Diameter (Unit) | INCH |
| Bolt to Bolt (Max) | 7.6300 |
| Bolt to Bolt (Max) (Unit) | INCH |
| Bolt to Bolt (Min) | 6.8800 |
| Bolt to Bolt (Min) (Unit) | INCH |
| Bore Length | 3.3800 |
| Bore Length (Unit) | INCH |
| CAD Link | https://dodge-embedded.partcommunity.com/3d-cad-models/?info=dodge/mounted_bearings/tapered_roller_bearings/double_interlock/p2b_p4b_asmtab.prj&varset={SS=1-1/2},{PN=023332},{DESCRIPTION=P2B-DI-108R DBL INTERLOCK},{EF=Non-Expansion Type},{A=3.38},{B=9},{C=2.37},{DMIN=6.88},{DMAX=7.63},{E=N/A},{F=1/2},{G=1.00},{H=1.38},{J=5.75},{L=3.19},{M=2.63},{P=5.81},{T=0.09}&hidePortlets=searchHeader |
| Dynamic Load Capacity | 7070 |
| Dynamic Load Capacity (Unit) | POUND_FORCE |
| Expansion Capability | Non-Expansion (Fixed) |
| Grease Name | MobilGrease XHP222 |
| Housing Construction | Split |
| Housing Material | Cast Iron |
| Housing Type | Two-Bolt Pillow Block |
| Insert Material | Steel |
| Lubrication | Grease |
| Maximum Speed | 3320 |
| Maximum Speed (Unit) | RPM |
| Seal Type | Triple-Lip Contact |
| Shaft Attachment | Setscrew |
| Shaft Diameter | 1.5000 |
| Shaft Diameter (Unit) | INCH |
| Static Load Capacity | 33000 |
| Static Load Capacity (Unit) | POUND_FORCE |
| Take-Up Frame Size | HD-200,TS-300 |
