023329 - Dodge - P2B-DI-104R DBL INTERLOCK
Regular price
$601.66 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.

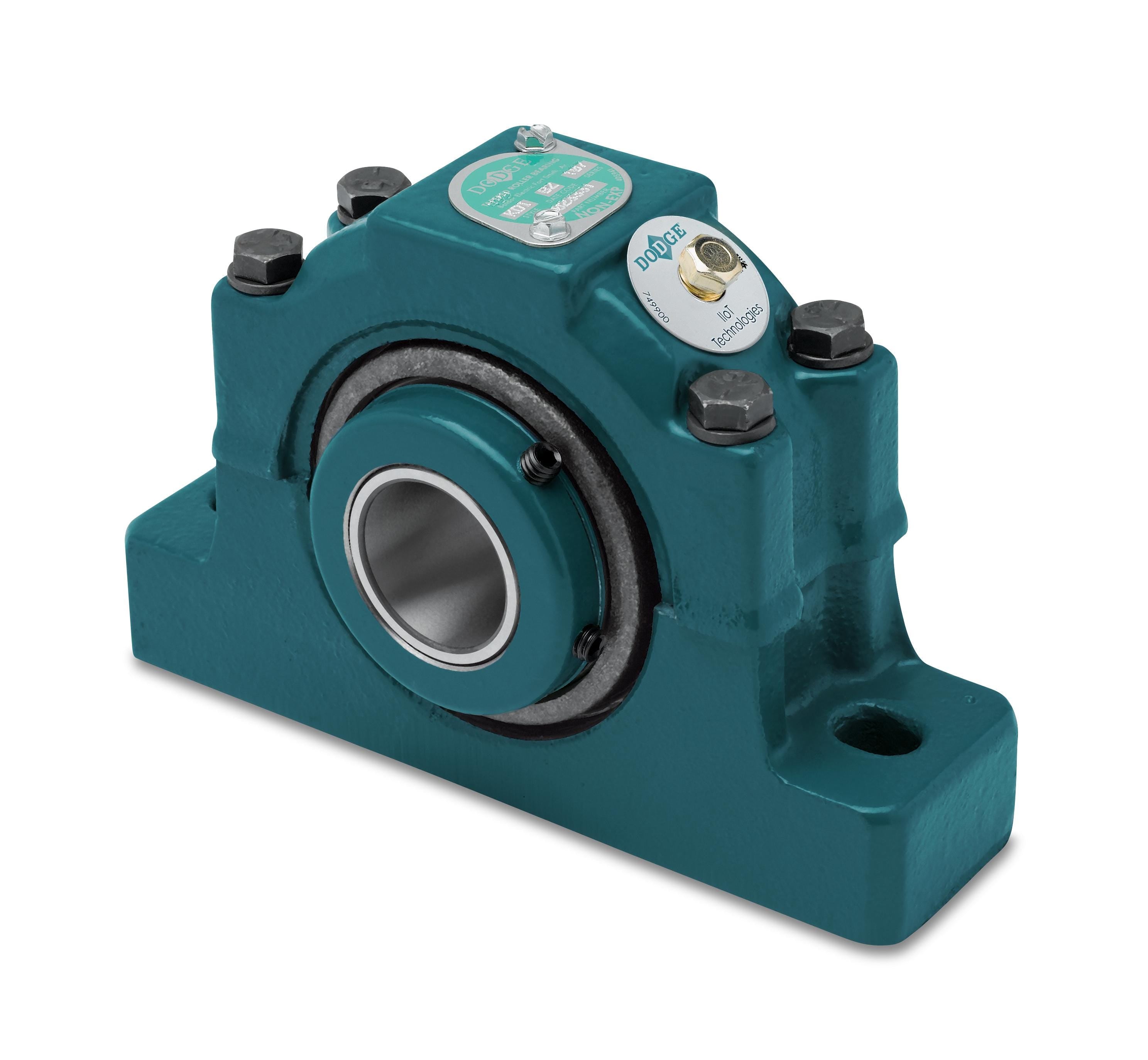

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
023329 - Dodge - P2B-DI-104R DBL INTERLOCK
P2B-DI-104R
Technical Specifications
| Base to Center Height | 2.1300 |
| Base to Center Height (Unit) | INCH |
| Bearing Type | Tapered Roller |
| Bolt Diameter | 0.3750 |
| Bolt Diameter (Unit) | INCH |
| Bolt to Bolt (Max) | 6.3800 |
| Bolt to Bolt (Max) (Unit) | INCH |
| Bolt to Bolt (Min) | 6.0000 |
| Bolt to Bolt (Min) (Unit) | INCH |
| Bore Length | 2.7500 |
| Bore Length (Unit) | INCH |
| CAD Link | https://dodge-embedded.partcommunity.com/3d-cad-models/?info=dodge/mounted_bearings/tapered_roller_bearings/double_interlock/p2b_p4b_asmtab.prj&varset={SS=1-1/4},{PN=023329},{DESCRIPTION=P2B-DI-104R DBL INTERLOCK},{EF=Non-Expansion Type},{A=2.75},{B=7.50},{C=1.88},{DMIN=6},{DMAX=6.38},{E=N/A},{F=3/8},{G=0.69},{H=1.00},{J=4.53},{L=2.25},{M=2.13},{P=5.00},{T=0.09}&hidePortlets=searchHeader |
| Dynamic Load Capacity | 3450 |
| Dynamic Load Capacity (Unit) | POUND_FORCE |
| Expansion Capability | Non-Expansion (Fixed) |
| Grease Name | MobilGrease XHP222 |
| Housing Construction | Split |
| Housing Material | Cast Iron |
| Housing Type | Two-Bolt Pillow Block |
| Insert Material | Steel |
| Lubrication | Grease |
| Maximum Speed | 4490 |
| Maximum Speed (Unit) | RPM |
| Seal Type | Triple-Lip Contact |
| Shaft Attachment | Setscrew |
| Shaft Diameter | 1.2500 |
| Shaft Diameter (Unit) | INCH |
| Static Load Capacity | 15760 |
| Static Load Capacity (Unit) | POUND_FORCE |
| Take-Up Frame Size | TS-300 |
