023270 - Dodge - WSTU-K-300R TYPE K
Regular price
$1,526.21 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.

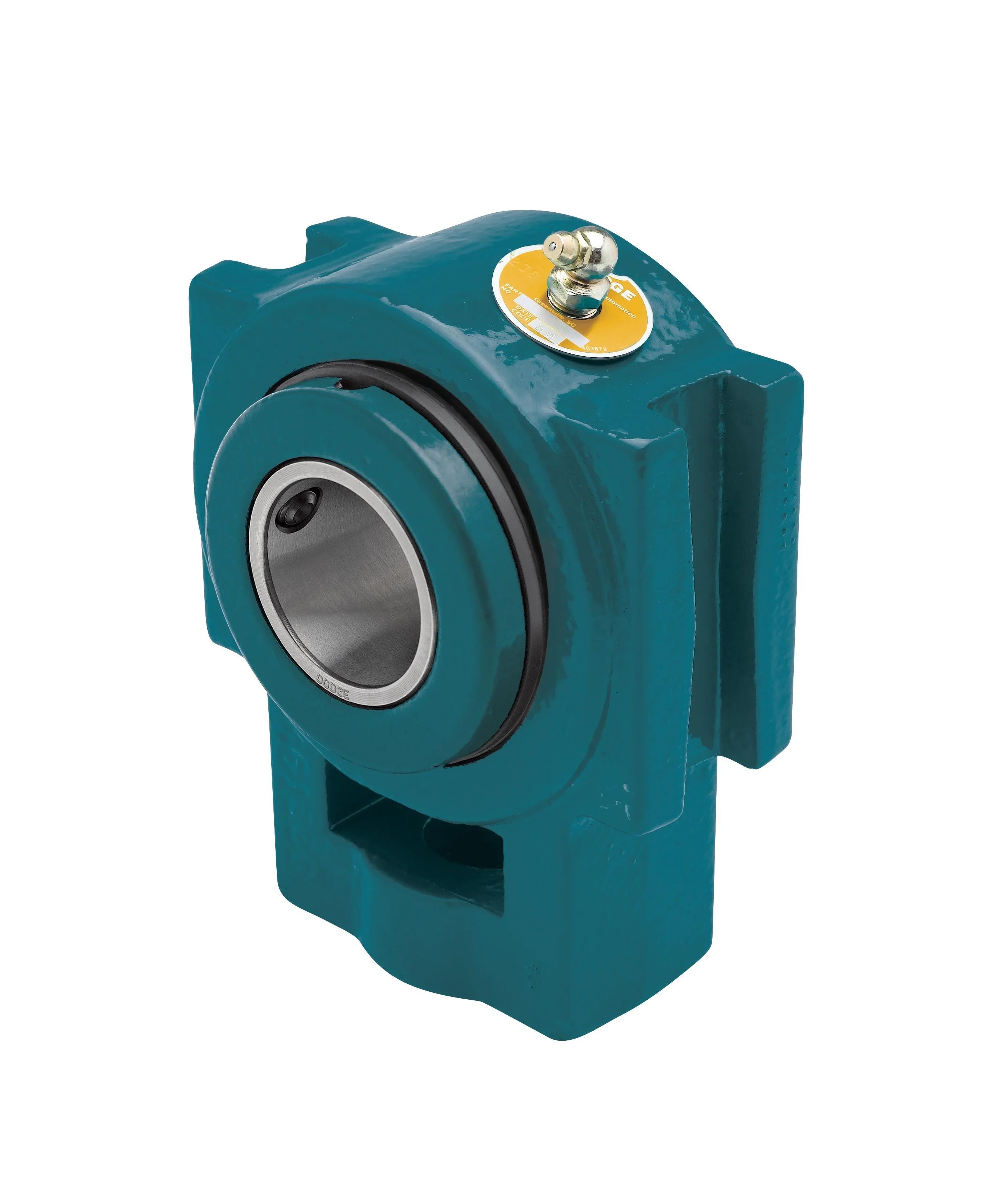

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
023270 - Dodge - WSTU-K-300R TYPE K
WSTU-K-300R TYPE K
Technical Specifications
| Bearing Type | Tapered Roller |
| Bore Length | 3.7800 |
| Bore Length (Unit) | INCH |
| CAD Link | https://dodge-embedded.partcommunity.com/3d-cad-models/?info=dodge/mounted_bearings/tapered_roller_bearings/type_k/wstu_k_asmtab.prj&varset={SS=3},{PN=023270},{PNA=WSTU-K-300R},{WEIGHT=28},{A=3-3/4},{B=9-1/8},{C=1-13/16},{D=4-3/4},{E=5-7/8},{F=1-1/2},{G=1-3/8},{H=1-1/2},{J=4-7/8},{K=2-3/4},{L=4-23/32},{M=5-15/16},{N=6-3/4},{R=1-7/16},{S=2-1/4},{T=3},{CS=61200},{CD=9600},{RN=24},{RM=.41},{PDI=3.900},{EP=.004-.012},{SC=1/2-13*7/8},{TC=620},{MH=C.I. ASTM A48 CLASS 30},{MC=4118 CASE CARB.},{MCU=4118 CASE CARB.},{MR=STEEL},{MRO=4118 CASE CARB.},{SM=�.001%22 PER INCH}&hidePortlets=searchHeader |
| Dynamic Load Capacity | 11120 |
| Dynamic Load Capacity (Unit) | POUND_FORCE |
| Expansion Capability | Non-Expansion (Fixed) |
| Grease Name | MobilGrease XHP222 |
| Housing Construction | Solid |
| Housing Material | Cast Iron |
| Housing Type | Wide-Slot Take-up |
| Insert Material | Steel |
| Lubrication | Grease |
| Maximum Speed | 2060 |
| Maximum Speed (Unit) | RPM |
| Seal Type | Triple-Lip Contact |
| Shaft Attachment | Setscrew |
| Shaft Diameter | 3.0000 |
| Shaft Diameter (Unit) | INCH |
| Static Load Capacity | 61200 |
| Static Load Capacity (Unit) | POUND_FORCE |
| Take-Up Frame Size | CP-515 |
