023263 - Dodge - WSTU-K-203R TYPE K
Regular price
$877.89 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.

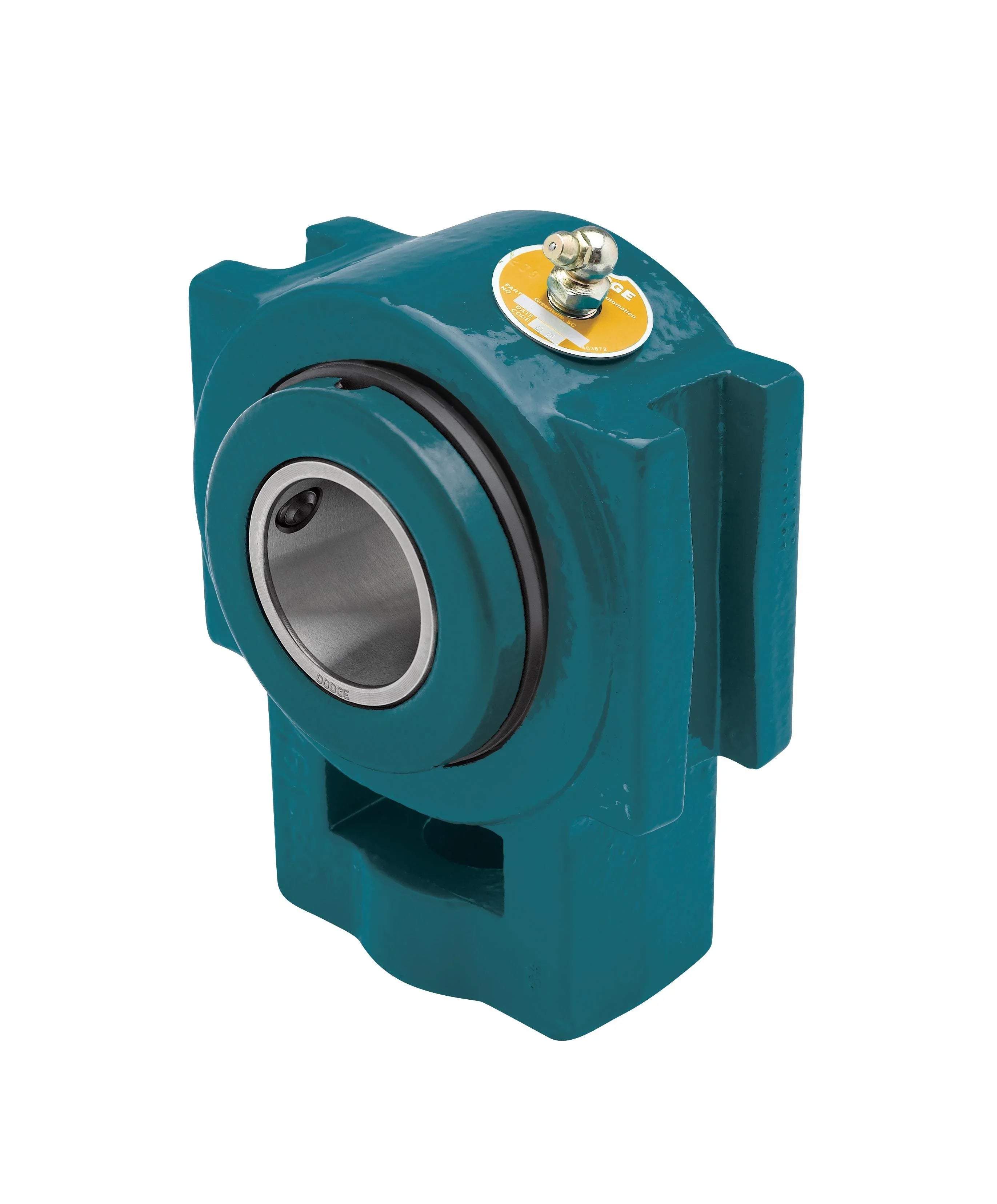

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
023263 - Dodge - WSTU-K-203R TYPE K
WSTU-K-203R TYPE K
Technical Specifications
| Bearing Type | Tapered Roller |
| Bore Length | 3.1600 |
| Bore Length (Unit) | INCH |
| CAD Link | https://dodge-embedded.partcommunity.com/3d-cad-models/?info=dodge/mounted_bearings/tapered_roller_bearings/type_k/wstu_k_asmtab.prj&varset={SS=2-3/16},{PN=023263},{PNA=WSTU-K-203R},{WEIGHT=15},{A=3-5/32},{B=7-1/8},{C=13/16},{D=3-3/4},{E=4-5/8},{F=1-1/8},{G=1},{H=1-1/4},{J=3-7/8},{K=2-1/4},{L=3-3/4},{M=4-1/2},{N=5-1/4},{R=1-1/4},{S=1-7/8},{T=2-9/16},{CS=48200},{CD=8550},{RN=19},{RM=.41},{PDI=3.014},{EP=.004-.012},{SC=3/8-16*3/4},{TC=290},{MH=C.I. ASTM A48 CLASS 30},{MC=4118 CASE CARB.},{MCU=4118 CASE CARB.},{MR=STEEL},{MRO=4118 CASE CARB.},{SM=�.001%22 PER INCH}&hidePortlets=searchHeader |
| Dynamic Load Capacity | 9850 |
| Dynamic Load Capacity (Unit) | POUND_FORCE |
| Expansion Capability | Non-Expansion (Fixed) |
| Grease Name | MobilGrease XHP222 |
| Housing Construction | Solid |
| Housing Material | Cast Iron |
| Housing Type | Wide-Slot Take-up |
| Insert Material | Steel |
| Lubrication | Grease |
| Maximum Speed | 2730 |
| Maximum Speed (Unit) | RPM |
| Seal Type | Triple-Lip Contact |
| Shaft Attachment | Setscrew |
| Shaft Diameter | 2.1875 |
| Shaft Diameter (Unit) | INCH |
| Static Load Capacity | 48200 |
| Static Load Capacity (Unit) | POUND_FORCE |
| Take-Up Frame Size | CP-408 |
