023237 - Dodge - F4B-K-108RE TYPE K
Regular price
$861.49 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.

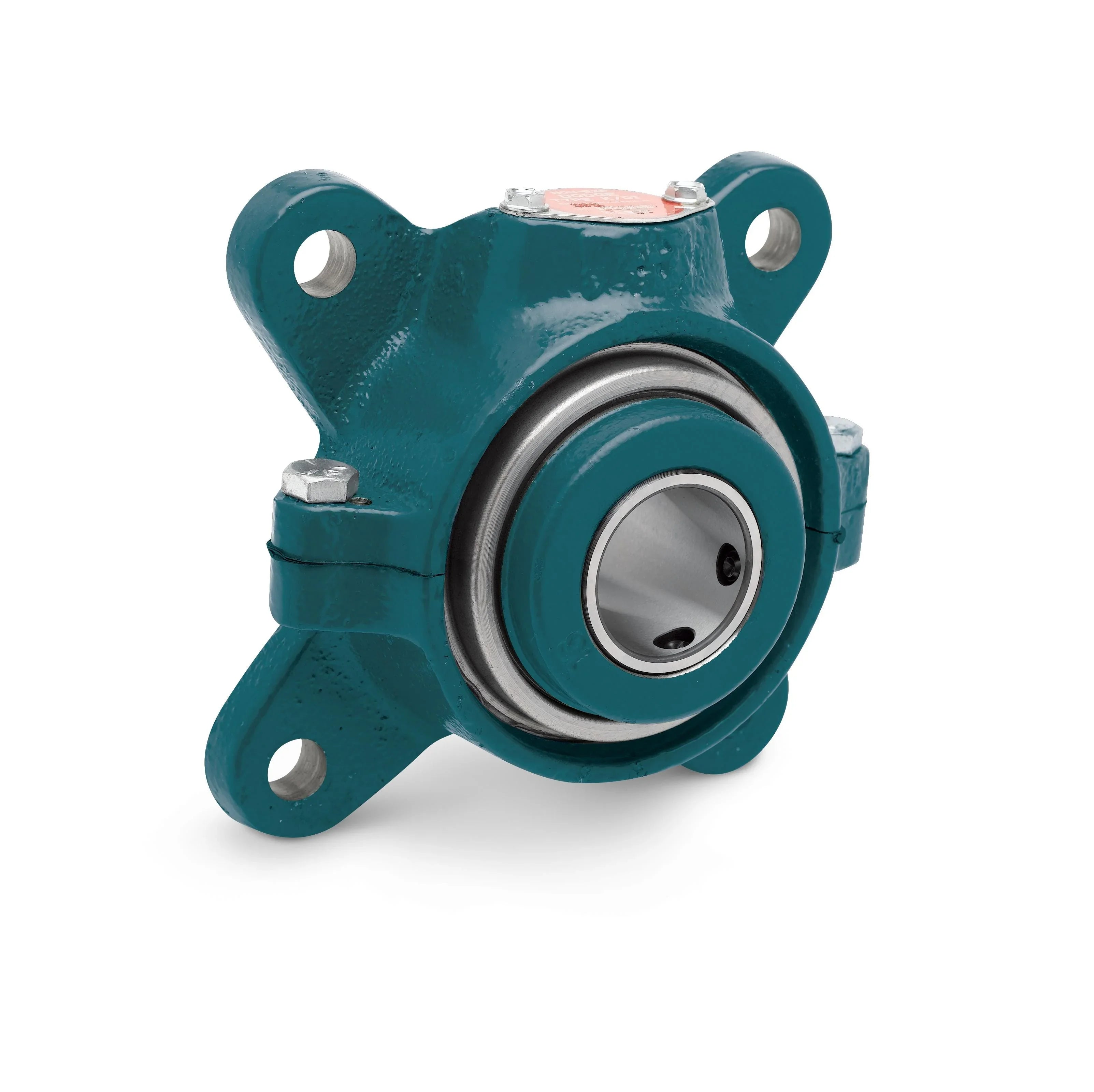

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
023237 - Dodge - F4B-K-108RE TYPE K
F4B-K-108RE TYPE K
Technical Specifications
| Bearing Type | Tapered Roller |
| Bolt Circle | 6.7500 |
| Bolt Circle (Unit) | INCH |
| Bolt Diameter | 0.5000 |
| Bolt Diameter (Unit) | INCH |
| Bolt to Bolt (Max) | 4.7730 |
| Bolt to Bolt (Max) (Unit) | INCH |
| Bolt to Bolt (Min) | 4.7730 |
| Bolt to Bolt (Min) (Unit) | INCH |
| Bore Length | 3.0000 |
| Bore Length (Unit) | INCH |
| CAD Link | https://dodge-embedded.partcommunity.com/3d-cad-models/?info=dodge/mounted_bearings/tapered_roller_bearings/type_k/f4b_flange_i_e_asmtab.prj&varset={SS=1-1/2},{PN=023237},{PNA=F4B-K-108RE},{WEIGHT=12},{A=3},{B=6-1/8},{C=2-7/16},{D=4-25/32},{E=5/32},{F=1/2},{G=6-3/4},{H=1/2},{J=4-25/32},{L=3-3/16},{T=3/16},{CS=33000},{CD=6140},{RN=18},{RM=.29},{PDI=2.411},{EP=.004-.012},{SC=5/16-18*5/8},{TC=165},{MH=C.I. ASTM A48 CLASS 30},{MC=4118 CASE CARB.},{MCU=4118 CASE CARB.},{MR=STEEL},{MRO=4118 CASE CARB.},{SM=4.96}&hidePortlets=searchHeader |
| Dynamic Load Capacity | 7070 |
| Dynamic Load Capacity (Unit) | POUND_FORCE |
| Expansion Capability | Expansion (Float) |
| Grease Name | MobilGrease XHP222 |
| Housing Construction | Split |
| Housing Material | Ductile Iron |
| Housing Type | Four-Bolt Flange (Square) |
| Insert Material | Steel |
| Lubrication | Grease |
| Maximum Speed | 3320 |
| Maximum Speed (Unit) | RPM |
| Seal Type | Triple-Lip Contact |
| Sensor Ready | Adapter Required |
| Shaft Attachment | Setscrew |
| Shaft Diameter | 1.5000 |
| Shaft Diameter (Unit) | INCH |
| Static Load Capacity | 33000 |
| Static Load Capacity (Unit) | POUND_FORCE |
