023209 - Dodge - P2B-K-308RE TYPE K
Regular price
$2,821.60 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.

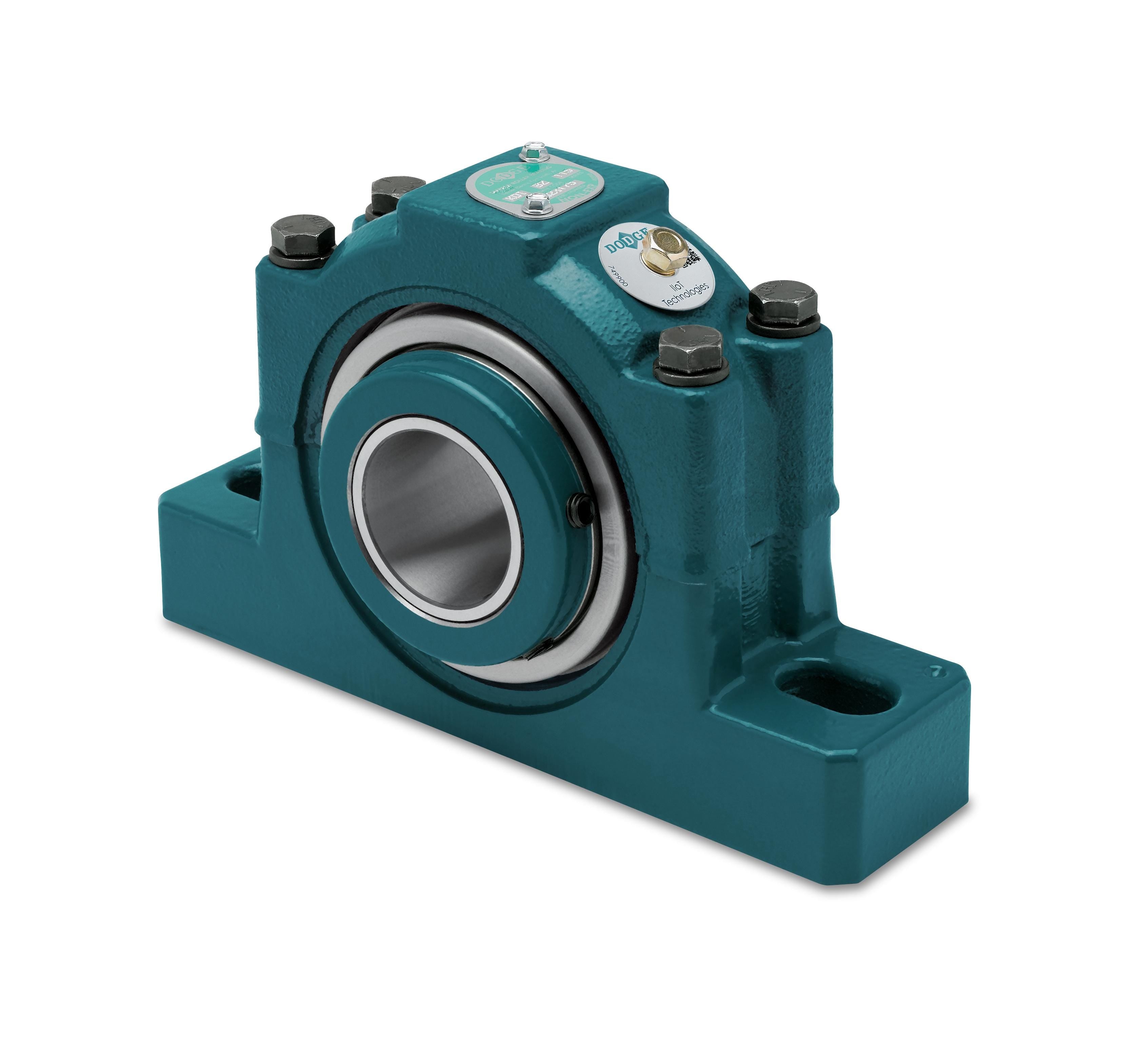

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
023209 - Dodge - P2B-K-308RE TYPE K
P2B-K-308RE
Technical Specifications
| Base to Center Height | 4.5000 |
| Base to Center Height (Unit) | INCH |
| Bearing Type | Tapered Roller |
| Bolt Diameter | 0.8750 |
| Bolt Diameter (Unit) | INCH |
| Bolt to Bolt (Max) | 13.8100 |
| Bolt to Bolt (Max) (Unit) | INCH |
| Bolt to Bolt (Min) | 12.8100 |
| Bolt to Bolt (Min) (Unit) | INCH |
| Bore Length | 4.2700 |
| Bore Length (Unit) | INCH |
| CAD Link | https://dodge-embedded.partcommunity.com/3d-cad-models/?info=dodge/mounted_bearings/tapered_roller_bearings/type_k/p2_4_bolt_exp_asmtab.prj&varset={SS=3-1/2},{PN=023209},{PNA=P2B-K-308RE},{WEIGHT=66},{A=4.26},{B=16.00},{C=3.44},{DMIN=12.81},{DMAX=13.81},{E=N/A},{F=7/8},{G=1.50},{H=2.25},{J=9.42},{L=5.50},{M=4.50},{P=10.10},{R=1.68},{S=2.50},{T=.28},{CS=108600},{CD=15300},{RN=26},{RM=.46},{PDI=4.780},{EP=.008-.012},{SC=1/2-13*1},{TC=620},{MH=C.I. ASTM A48 CLASS 30},{MC=4118 CASE CARB.},{MCU=4118 CASE CARB.},{MR=STEEL},{MRO=4118 CASE CARB.},{SM=4.08*}&hidePortlets=searchHeader |
| Dynamic Load Capacity | 17750 |
| Dynamic Load Capacity (Unit) | POUND_FORCE |
| Expansion Capability | Expansion (Float) |
| Grease Name | MobilGrease XHP222 |
| Housing Construction | Split |
| Housing Material | Cast Iron |
| Housing Type | Two-Bolt Pillow Block |
| Insert Material | Steel |
| Lubrication | Grease |
| Maximum Speed | 1640 |
| Maximum Speed (Unit) | RPM |
| Seal Type | Triple-Lip Contact |
| Shaft Attachment | Setscrew |
| Shaft Diameter | 3.5000 |
| Shaft Diameter (Unit) | INCH |
| Static Load Capacity | 108600 |
| Static Load Capacity (Unit) | POUND_FORCE |
| Take-Up Frame Size | HD-350,TS-500 |
