023203 - Dodge - P2B-K-211RE TYPE K
Regular price
$1,722.98 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.

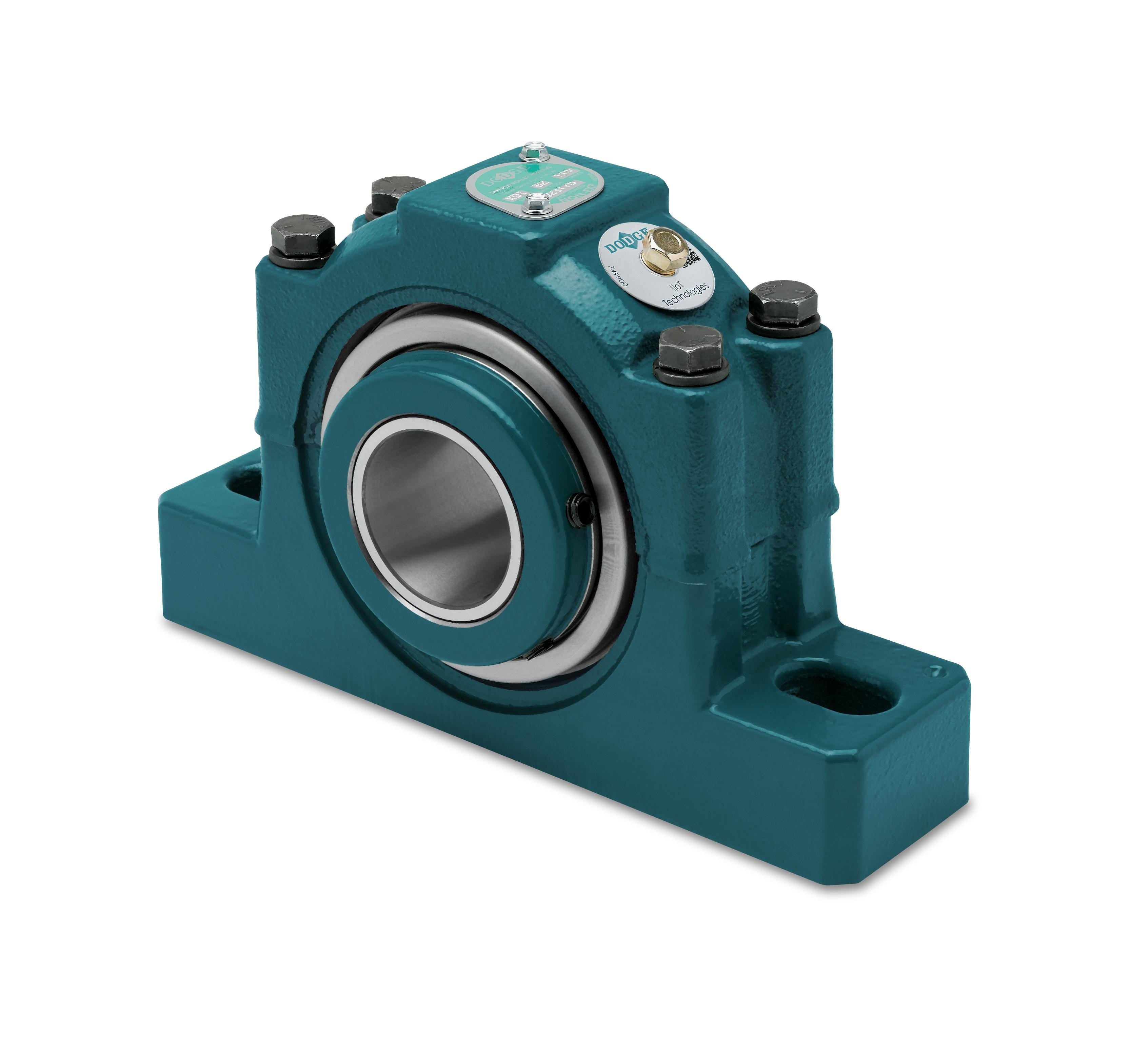

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
023203 - Dodge - P2B-K-211RE TYPE K
P2B-K-211RE
Technical Specifications
| Base to Center Height | 3.7500 |
| Base to Center Height (Unit) | INCH |
| Bearing Type | Tapered Roller |
| Bolt Diameter | 0.7500 |
| Bolt Diameter (Unit) | INCH |
| Bolt to Bolt (Max) | 11.5000 |
| Bolt to Bolt (Max) (Unit) | INCH |
| Bolt to Bolt (Min) | 9.8800 |
| Bolt to Bolt (Min) (Unit) | INCH |
| Bore Length | 3.7800 |
| Bore Length (Unit) | INCH |
| CAD Link | https://dodge-embedded.partcommunity.com/3d-cad-models/?info=dodge/mounted_bearings/tapered_roller_bearings/type_k/p2_4_bolt_exp_asmtab.prj&varset={SS=2-11/16},{PN=023203},{PNA=P2B-K-211RE},{WEIGHT=40},{A=3.78},{B=13.44},{C=2.94},{DMIN=9.88},{DMAX=11.50},{E=N/A},{F=3/4},{G=1.69},{H=2.00},{J=7.92},{L=4.72},{M=3.75},{P=8.31},{R=1.44},{S=2.25},{T=.28},{CS=61200},{CD=9600},{RN=24},{RM=.41},{PDI=3.900},{EP=.004-.012},{SC=1/2-13*7/8},{TC=620},{MH=C.I. ASTM A48 CLASS 30},{MC=4118 CASE CARB.},{MCU=4118 CASE CARB.},{MR=STEEL},{MRO=4118 CASE CARB.},{SM=4.80*}&hidePortlets=searchHeader |
| Dynamic Load Capacity | 11120 |
| Dynamic Load Capacity (Unit) | POUND_FORCE |
| Expansion Capability | Expansion (Float) |
| Grease Name | MobilGrease XHP222 |
| Housing Construction | Split |
| Housing Material | Cast Iron |
| Housing Type | Two-Bolt Pillow Block |
| Insert Material | Steel |
| Lubrication | Grease |
| Maximum Speed | 2060 |
| Maximum Speed (Unit) | RPM |
| Seal Type | Triple-Lip Contact |
| Shaft Attachment | Setscrew |
| Shaft Diameter | 2.6875 |
| Shaft Diameter (Unit) | INCH |
| Static Load Capacity | 61200 |
| Static Load Capacity (Unit) | POUND_FORCE |
| Take-Up Frame Size | HD-300,TS-400 |
