023199 - Dodge - P2B-K-203RE TYPE K
Regular price
$1,089.79 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.

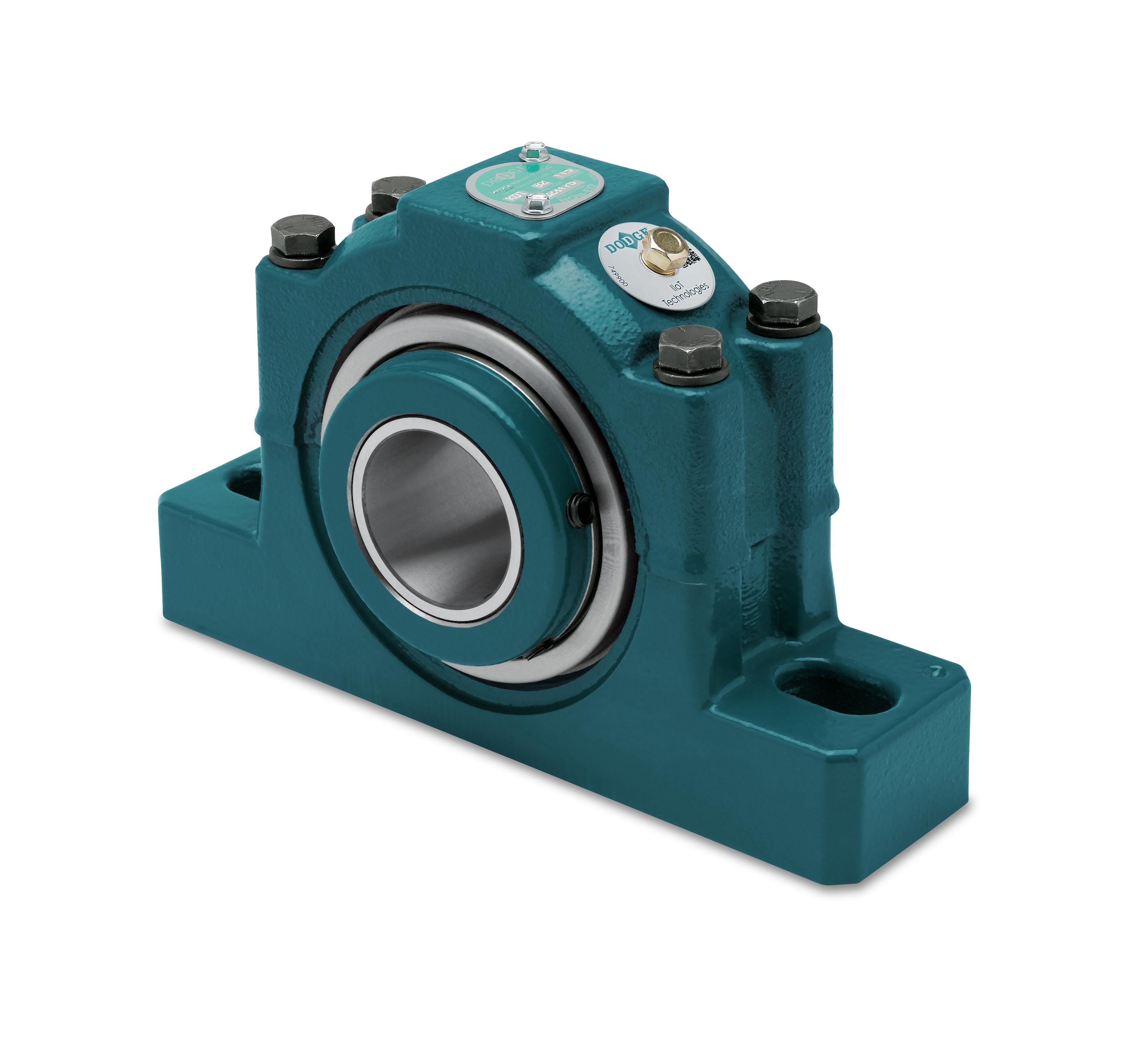

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
023199 - Dodge - P2B-K-203RE TYPE K
P2B-K-203RE
Technical Specifications
| Base to Center Height | 3.0000 |
| Base to Center Height (Unit) | INCH |
| Bearing Type | Tapered Roller |
| Bolt Diameter | 0.6250 |
| Bolt Diameter (Unit) | INCH |
| Bolt to Bolt (Max) | 9.2500 |
| Bolt to Bolt (Max) (Unit) | INCH |
| Bolt to Bolt (Min) | 8.0600 |
| Bolt to Bolt (Min) (Unit) | INCH |
| Bore Length | 3.1600 |
| Bore Length (Unit) | INCH |
| CAD Link | https://dodge-embedded.partcommunity.com/3d-cad-models/?info=dodge/mounted_bearings/tapered_roller_bearings/type_k/p2_4_bolt_exp_asmtab.prj&varset={SS=2-3/16},{PN=023199},{PNA=P2B-K-203RE},{WEIGHT=24},{A=3.15},{B=11.00},{C=2.66},{DMIN=8.06},{DMAX=9.25},{E=N/A},{F=5/8},{G=1.33},{H=1.50},{J=6.51},{L=3.75},{M=3.00},{P=6.95},{R=1.25},{S=1.88},{T=.28},{CS=48200},{CD=8550},{RN=19},{RM=.41},{PDI=3.014},{EP=.004-.012},{SC=3/8-16*3/4},{TC=290},{MH=C.I. ASTM A48 CLASS 30},{MC=4118 CASE CARB.},{MCU=4118 CASE CARB.},{MR=STEEL},{MRO=4118 CASE CARB.},{SM=5.60*}&hidePortlets=searchHeader |
| Dynamic Load Capacity | 9850 |
| Dynamic Load Capacity (Unit) | POUND_FORCE |
| Expansion Capability | Expansion (Float) |
| Grease Name | MobilGrease XHP222 |
| Housing Construction | Split |
| Housing Material | Cast Iron |
| Housing Type | Two-Bolt Pillow Block |
| Insert Material | Steel |
| Lubrication | Grease |
| Maximum Speed | 2730 |
| Maximum Speed (Unit) | RPM |
| Seal Type | Triple-Lip Contact |
| Shaft Attachment | Setscrew |
| Shaft Diameter | 2.1875 |
| Shaft Diameter (Unit) | INCH |
| Static Load Capacity | 48200 |
| Static Load Capacity (Unit) | POUND_FORCE |
| Take-Up Frame Size | HD-200,TS-300 |
