023192 - Dodge - P2B-K-107RE TYPE K
Regular price
$659.68 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.

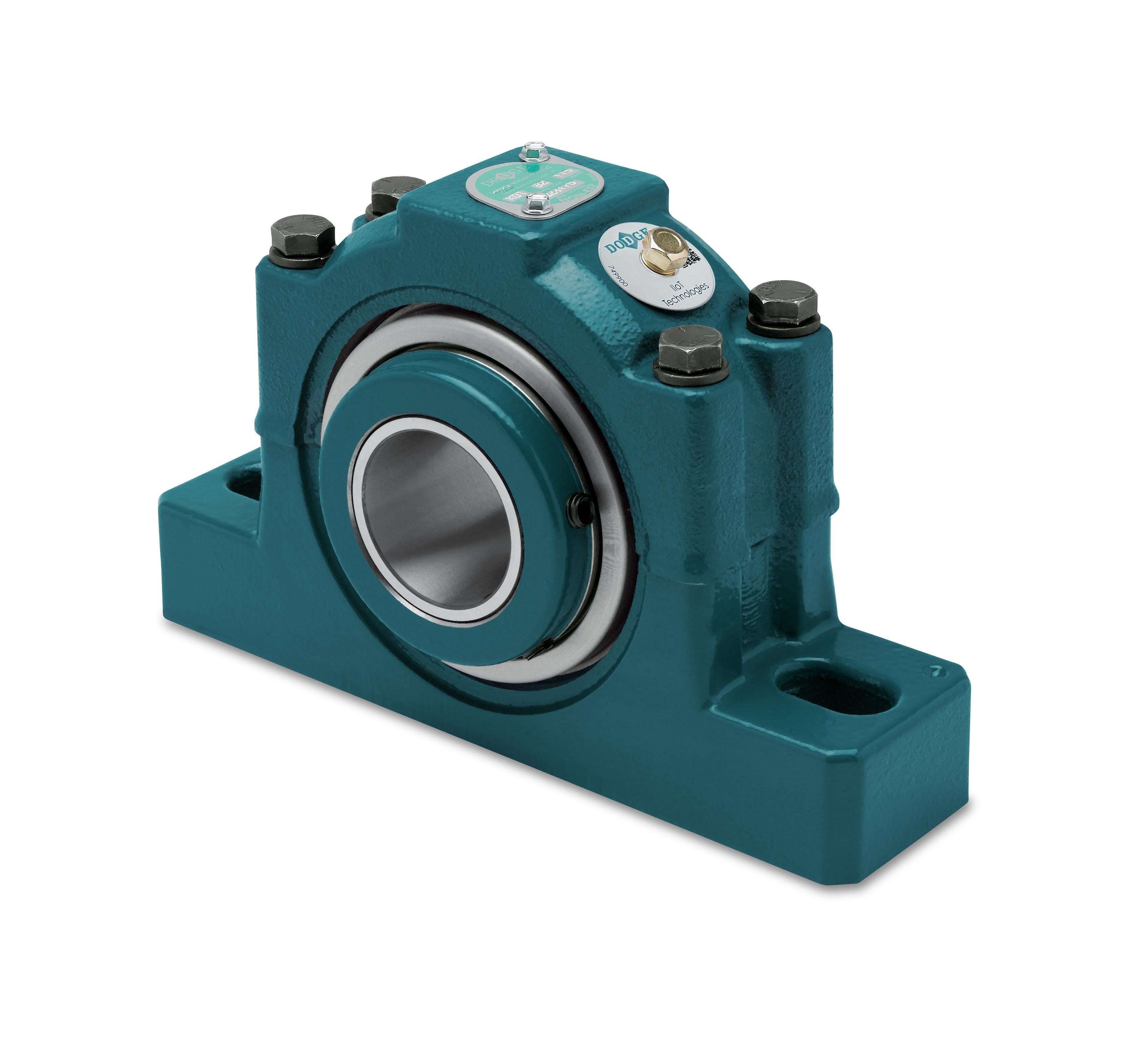

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
023192 - Dodge - P2B-K-107RE TYPE K
P2B-K-107RE
Technical Specifications
| Base to Center Height | 2.3800 |
| Base to Center Height (Unit) | INCH |
| Bearing Type | Tapered Roller |
| Bolt Diameter | 0.5000 |
| Bolt Diameter (Unit) | INCH |
| Bolt to Bolt (Max) | 6.6300 |
| Bolt to Bolt (Max) (Unit) | INCH |
| Bolt to Bolt (Min) | 6.2500 |
| Bolt to Bolt (Min) (Unit) | INCH |
| Bore Length | 2.5500 |
| Bore Length (Unit) | INCH |
| CAD Link | https://dodge-embedded.partcommunity.com/3d-cad-models/?info=dodge/mounted_bearings/tapered_roller_bearings/type_k/p2_4_bolt_exp_asmtab.prj&varset={SS=1-7/16},{PN=023192},{PNA=P2B-K-107RE},{WEIGHT=11},{A=2.55},{B=8.00},{C=2.19},{DMIN=6.25},{DMAX=6.62},{E=N/A},{F=1/2},{G=.75},{H=1.25},{J=5.23},{L=2.75},{M=2.38},{P=5.51},{R=1.03},{S=1.50},{T=.09},{CS=26000},{CD=4760},{RN=20},{RM=.29},{PDI=2.084},{EP=.004-.012},{SC=5/16-18*5/8},{TC=165},{MH=C.I. ASTM A48 CLASS 30},{MC=4118 CASE CARB.},{MCU=4118 CASE CARB.},{MR=STEEL},{MRO=4118 CASE CARB.},{SM=2.84*}&hidePortlets=searchHeader |
| Dynamic Load Capacity | 5500 |
| Dynamic Load Capacity (Unit) | POUND_FORCE |
| Expansion Capability | Expansion (Float) |
| Grease Name | MobilGrease XHP222 |
| Housing Construction | Split |
| Housing Material | Cast Iron |
| Housing Type | Two-Bolt Pillow Block |
| Insert Material | Steel |
| Lubrication | Grease |
| Maximum Speed | 3820 |
| Maximum Speed (Unit) | RPM |
| Seal Type | Triple-Lip Contact |
| Shaft Attachment | Setscrew |
| Shaft Diameter | 1.4375 |
| Shaft Diameter (Unit) | INCH |
| Static Load Capacity | 26000 |
| Static Load Capacity (Unit) | POUND_FORCE |
| Take-Up Frame Size | CP-308 |
