023174 - Dodge - P2B-K-112R TYPE K
Regular price
$935.91 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.

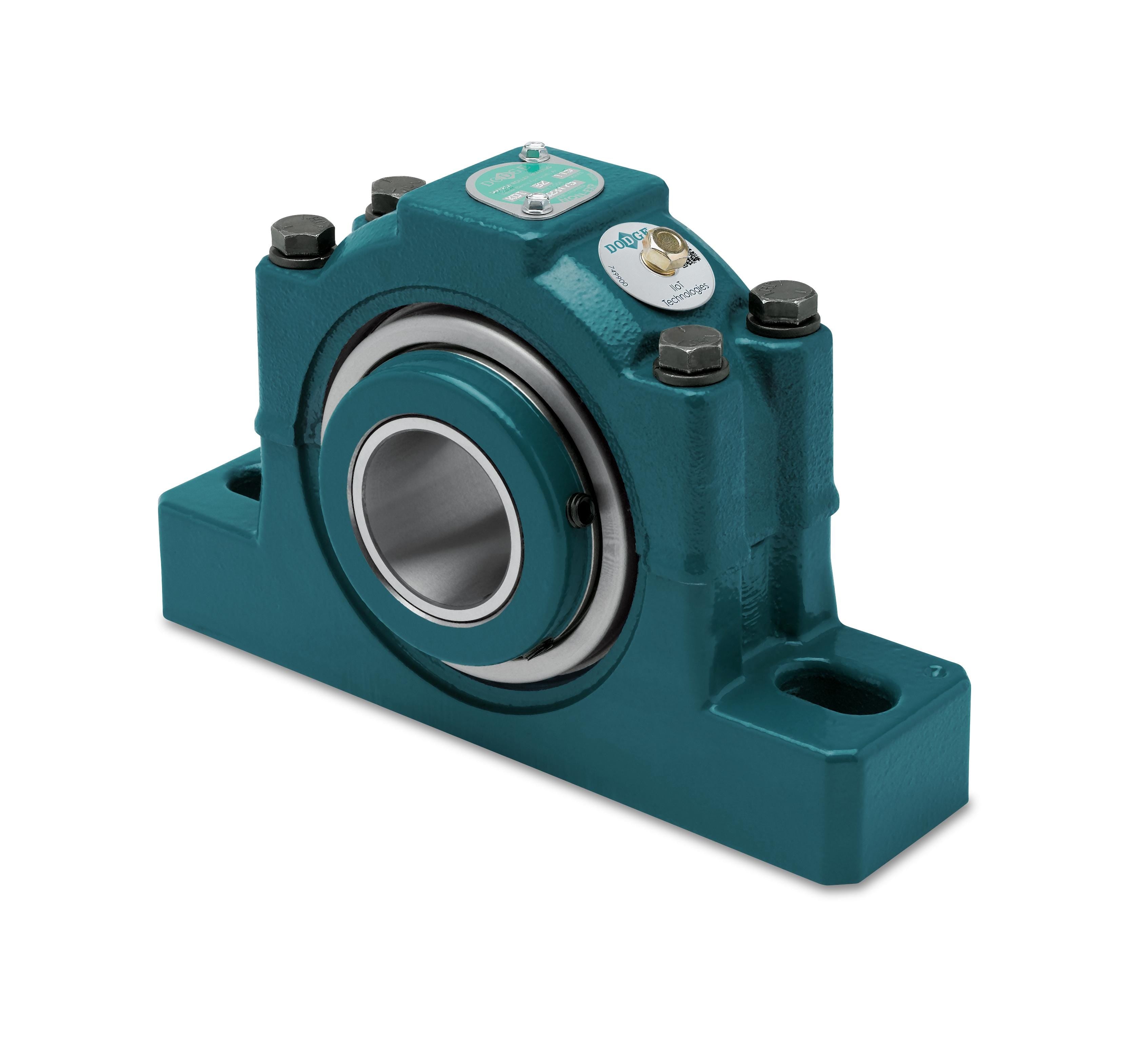

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
023174 - Dodge - P2B-K-112R TYPE K
P2B-K-112R
Technical Specifications
| Base to Center Height | 2.8800 |
| Base to Center Height (Unit) | INCH |
| Bearing Type | Tapered Roller |
| Bolt Diameter | 0.6250 |
| Bolt Diameter (Unit) | INCH |
| Bolt to Bolt (Max) | 8.4400 |
| Bolt to Bolt (Max) (Unit) | INCH |
| Bolt to Bolt (Min) | 7.3800 |
| Bolt to Bolt (Min) (Unit) | INCH |
| Bore Length | 2.9500 |
| Bore Length (Unit) | INCH |
| CAD Link | https://dodge-embedded.partcommunity.com/3d-cad-models/?info=dodge/mounted_bearings/tapered_roller_bearings/type_k/p2_4_bolt_asmtab.prj&varset={SS=1-3/4},{PN=023174},{PNA=P2B-K-112R},{WEIGHT=20},{A=2.96},{B=10},{C=2.53},{DMIN=7.38},{DMAX=8.44},{E=N/A},{F=5/8},{G=1.29},{H=1.50},{J=6.26},{L=3.44},{M=2.88},{P=6.36},{R=1.20},{S=1.75},{T=.28},{CS=43000},{CD=8070},{RN=17},{RM=.41},{PDI=2.709},{EP=.004-.012},{CSS=3/8-16*3/4},{CST=290},{MH=C.I. ASTM A48 CLASS 30},{MC=4118 CASE CARB.},{MCU=4118 CASE CARB.},{MR=STEEL},{MRO=4118 CASE CARB.},{SM=6.00*}&hidePortlets=searchHeader |
| Dynamic Load Capacity | 9300 |
| Dynamic Load Capacity (Unit) | POUND_FORCE |
| Expansion Capability | Non-Expansion (Fixed) |
| Grease Name | MobilGrease XHP222 |
| Housing Construction | Split |
| Housing Material | Cast Iron |
| Housing Type | Two-Bolt Pillow Block |
| Insert Material | Steel |
| Lubrication | Grease |
| Maximum Speed | 3050 |
| Maximum Speed (Unit) | RPM |
| Seal Type | Triple-Lip Contact |
| Shaft Attachment | Setscrew |
| Shaft Diameter | 1.7500 |
| Shaft Diameter (Unit) | INCH |
| Static Load Capacity | 43000 |
| Static Load Capacity (Unit) | POUND_FORCE |
| Take-Up Frame Size | HD-200,TS-300 |
