023164 - Dodge - TP-E-308R TYPE E-XTRA
Regular price
$1,654.75 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.

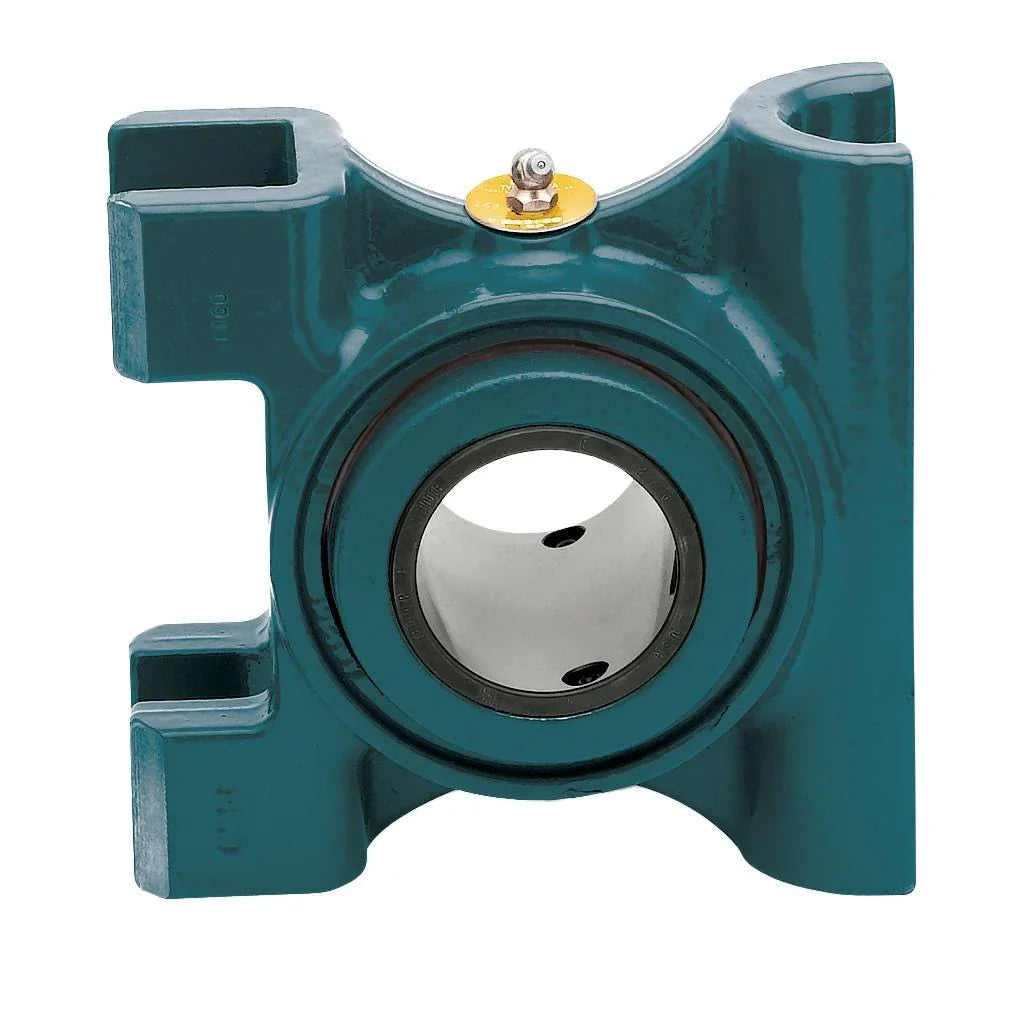

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
023164 - Dodge - TP-E-308R TYPE E-XTRA
TP-E-308R TYPE E-XTRA
Technical Specifications
| Bearing Type | Tapered Roller |
| Bore Length | 5.0000 |
| Bore Length (Unit) | INCH |
| CAD Link | https://dodge-embedded.partcommunity.com/3d-cad-models/?info=dodge/mounted_bearings/tapered_roller_bearings/type_e/tp_e_asmtab.prj&varset={SS=3-1/2},{PN=023164},{DESCRIPTION=TP-E-308R},{A=5},{B=8-5/16},{C=9-5/8},{D=4-1/2},{E=4},{F=3-5/32},{G=11/16},{H=13/16},{J=3-3/4},{L=5-7/16},{N=2-1/2},{U=2-1/4},{V=1-5/16},{W=2-1/8},{X=9-1/2},{Y=9}&hidePortlets=searchHeader |
| Dynamic Load Capacity | 17750 |
| Dynamic Load Capacity (Unit) | POUND_FORCE |
| Expansion Capability | Non-Expansion (Fixed) |
| Grease Name | MobilGrease XHP222 |
| Housing Construction | Solid |
| Housing Dimensional Standard | Type E |
| Housing Material | Cast Iron |
| Housing Type | Top-Angle Take-up |
| Insert Material | Steel |
| Lubrication | Grease |
| Maximum Speed | 1640 |
| Maximum Speed (Unit) | RPM |
| Seal Type | Triple-Lip Contact |
| Shaft Attachment | Setscrew |
| Shaft Diameter | 3.5000 |
| Shaft Diameter (Unit) | INCH |
| Static Load Capacity | 108600 |
| Static Load Capacity (Unit) | POUND_FORCE |
| Take-Up Frame Size | TP-50 |
