023155 - Dodge - TP-E-207R TYPE E-XTRA
Regular price
$779.33 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.

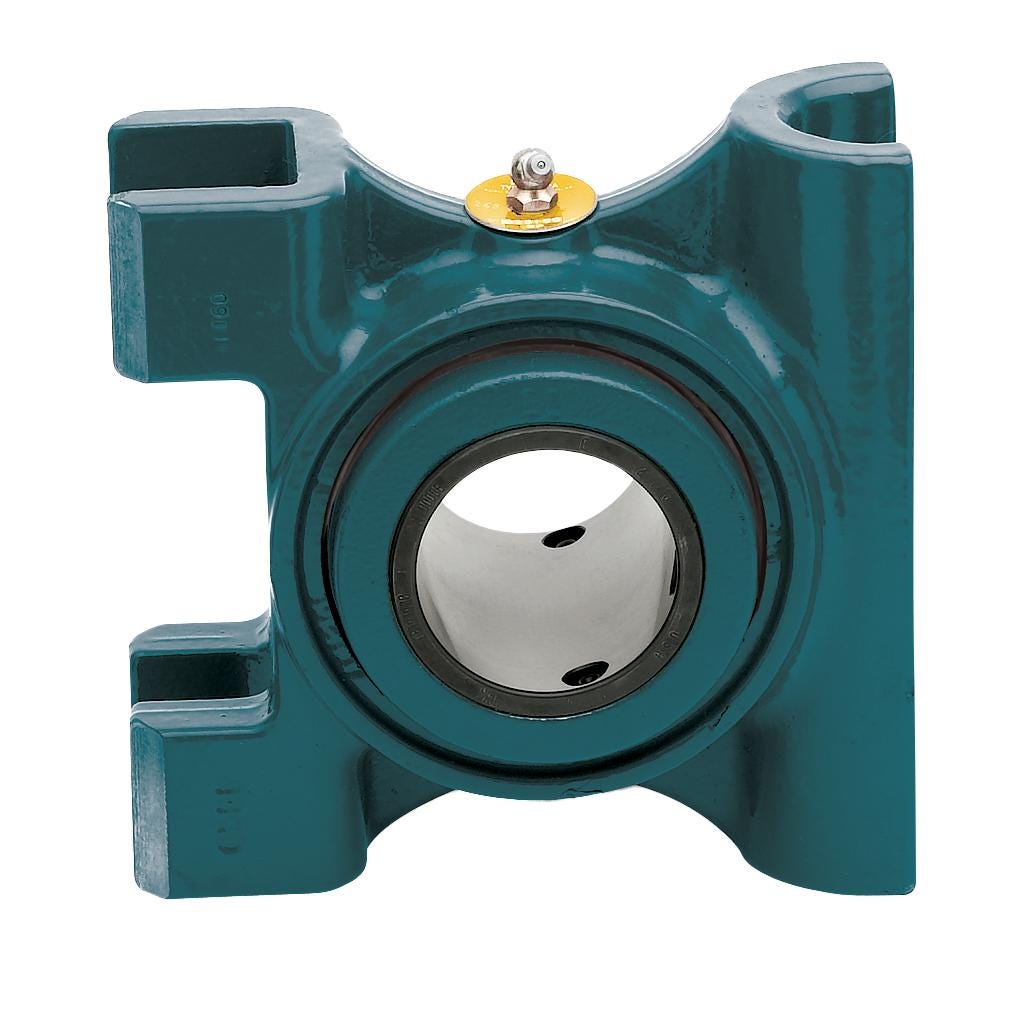

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
023155 - Dodge - TP-E-207R TYPE E-XTRA
TP-E-207R TYPE E-XTRA
Technical Specifications
| Bearing Type | Tapered Roller |
| Bore Length | 4.0000 |
| Bore Length (Unit) | INCH |
| CAD Link | https://dodge-embedded.partcommunity.com/3d-cad-models/?info=dodge/mounted_bearings/tapered_roller_bearings/type_e/tp_e_asmtab.prj&varset={SS=2-7/16},{PN=023155},{DESCRIPTION=TP-E-207R},{A=4},{B=6-1/4},{C=7-7/16},{D=3-1/2},{E=3},{F=2-3/4},{G=9/16},{H=13/16},{J=3},{L=4-1/16},{N=2},{U=1-3/4},{V=1-1/16},{W=1-3/4},{X=7-1/2},{Y=7}&hidePortlets=searchHeader |
| Dynamic Load Capacity | 10600 |
| Dynamic Load Capacity (Unit) | POUND_FORCE |
| Expansion Capability | Non-Expansion (Fixed) |
| Grease Name | MobilGrease XHP222 |
| Housing Construction | Solid |
| Housing Dimensional Standard | Type E |
| Housing Material | Cast Iron |
| Housing Type | Top-Angle Take-up |
| Insert Material | Steel |
| Lubrication | Grease |
| Maximum Speed | 2420 |
| Maximum Speed (Unit) | RPM |
| Seal Type | Triple-Lip Contact |
| Shaft Attachment | Setscrew |
| Shaft Diameter | 2.4375 |
| Shaft Diameter (Unit) | INCH |
| Static Load Capacity | 54000 |
| Static Load Capacity (Unit) | POUND_FORCE |
| Take-Up Frame Size | TP-30 |
