023150 - Dodge - TP-E-114R TYPE E-XTRA
Regular price
$608.26 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.

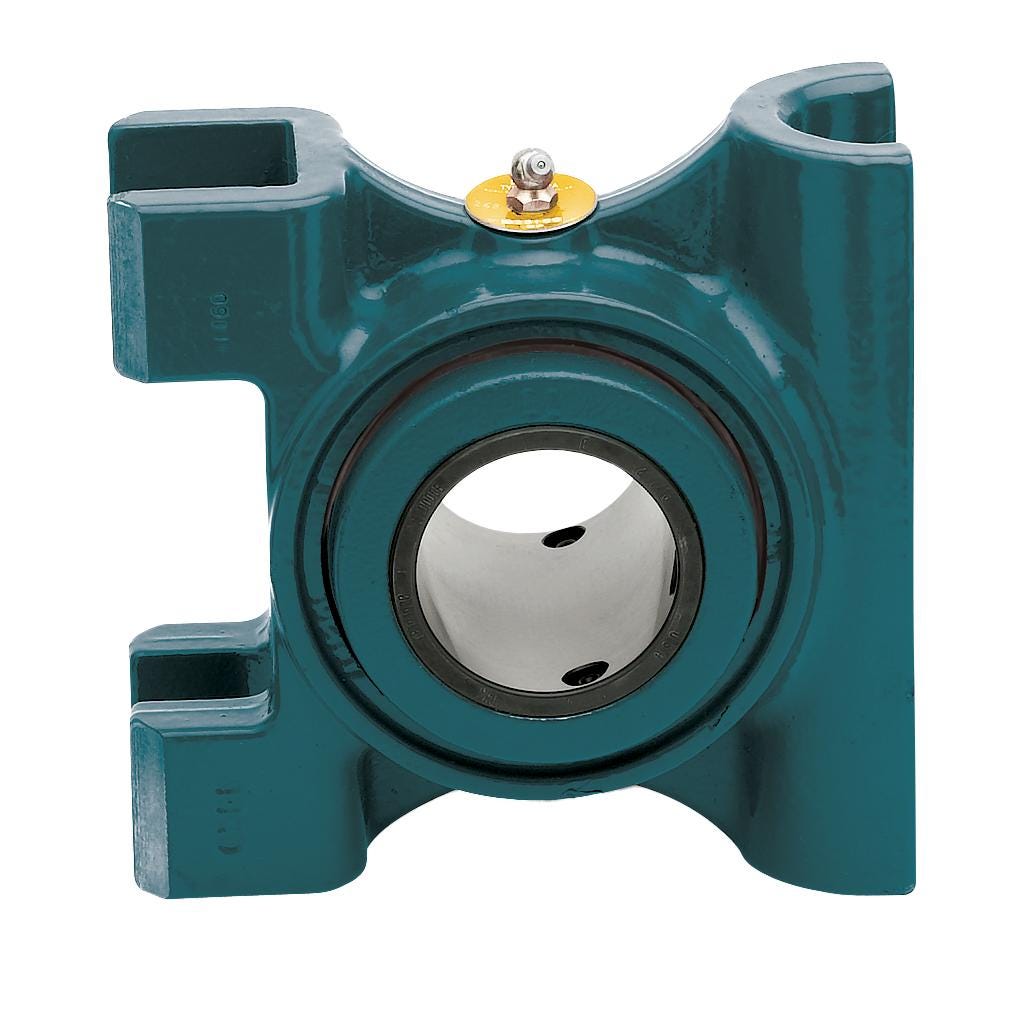

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
023150 - Dodge - TP-E-114R TYPE E-XTRA
TP-E-114R TYPE E-XTRA
Technical Specifications
| Bearing Type | Tapered Roller |
| Bore Length | 3.5000 |
| Bore Length (Unit) | INCH |
| CAD Link | https://dodge-embedded.partcommunity.com/3d-cad-models/?info=dodge/mounted_bearings/tapered_roller_bearings/type_e/tp_e_asmtab.prj&varset={SS=1-7/8},{PN=023150},{DESCRIPTION=TP-E-114R},{A=3-1/2},{B=5-3/16},{C=6-3/8},{D=3-1/4},{E=2-3/8},{F=2-3/8},{G=9/16},{H=13/16},{J=2-9/16},{L=3-7/16},{N=1-3/4},{U=1-1/4},{V=13/16},{W=1-3/8},{X=6-1/2},{Y=6}&hidePortlets=searchHeader |
| Dynamic Load Capacity | 9300 |
| Dynamic Load Capacity (Unit) | POUND_FORCE |
| Expansion Capability | Non-Expansion (Fixed) |
| Grease Name | MobilGrease XHP222 |
| Housing Construction | Solid |
| Housing Dimensional Standard | Type E |
| Housing Material | Cast Iron |
| Housing Type | Wide-Slot Take-up |
| Insert Material | Steel |
| Lubrication | Grease |
| Maximum Speed | 3050 |
| Maximum Speed (Unit) | RPM |
| Seal Type | Triple-Lip Contact |
| Shaft Attachment | Setscrew |
| Shaft Diameter | 1.8750 |
| Shaft Diameter (Unit) | INCH |
| Static Load Capacity | 43000 |
| Static Load Capacity (Unit) | POUND_FORCE |
| Take-Up Frame Size | TP-10 |
