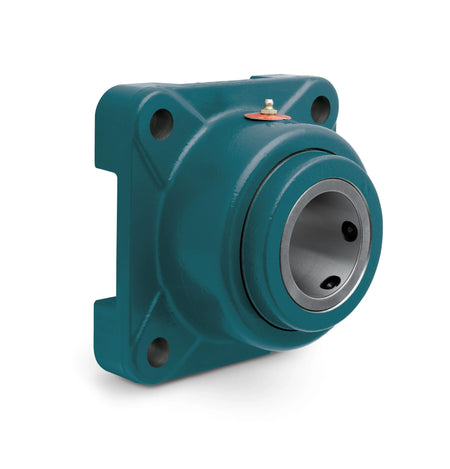

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
023118 - Dodge - F4B-E-407R TYPE E-XTRA
F4B-E-407R TYPE E-XTRA
Technical Specifications
| Bearing Type | Tapered Roller |
| Bolt Circle | 12.3700 |
| Bolt Circle (Unit) | INCH |
| Bolt Diameter | 0.8750 |
| Bolt Diameter (Unit) | INCH |
| Bolt to Bolt (Max) | 8.7470 |
| Bolt to Bolt (Max) (Unit) | INCH |
| Bolt to Bolt (Min) | 8.7470 |
| Bolt to Bolt (Min) (Unit) | INCH |
| Bore Length | 6.7500 |
| Bore Length (Unit) | INCH |
| CAD Link | https://dodge-embedded.partcommunity.com/3d-cad-models/?info=dodge/mounted_bearings/tapered_roller_bearings/type_e/f4b_asmtab.prj&varset={SS=4-7/16},{PN=023118},{DESCRIPTION=F4B-E-407R},{A=7-3/32},{B=10-7/8},{C=5-15/16},{D=8-3/4},{E=11/32},{F=7/8},{H=2-7/16},{J=8-3/4},{L=6-7/16}&hidePortlets=searchHeader |
| Dynamic Load Capacity | 30000 |
| Dynamic Load Capacity (Unit) | POUND_FORCE |
| Expansion Capability | Non-Expansion (Fixed) |
| Grease Name | MobilGrease XHP222 |
| Housing Construction | Solid |
| Housing Dimensional Standard | Type E |
| Housing Material | Cast Iron |
| Housing Type | Four-Bolt Flange (Square) |
| Insert Material | Steel |
| Lubrication | Grease |
| Maximum Speed | 1360 |
| Maximum Speed (Unit) | RPM |
| Seal Type | Triple-Lip Contact |
| Shaft Attachment | Setscrew |
| Shaft Diameter | 4.4375 |
| Shaft Diameter (Unit) | INCH |
| Static Load Capacity | 188400 |
| Static Load Capacity (Unit) | POUND_FORCE |
