023109 - Dodge - F4B-E-212R Type E Extra
Regular price
$969.41 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.

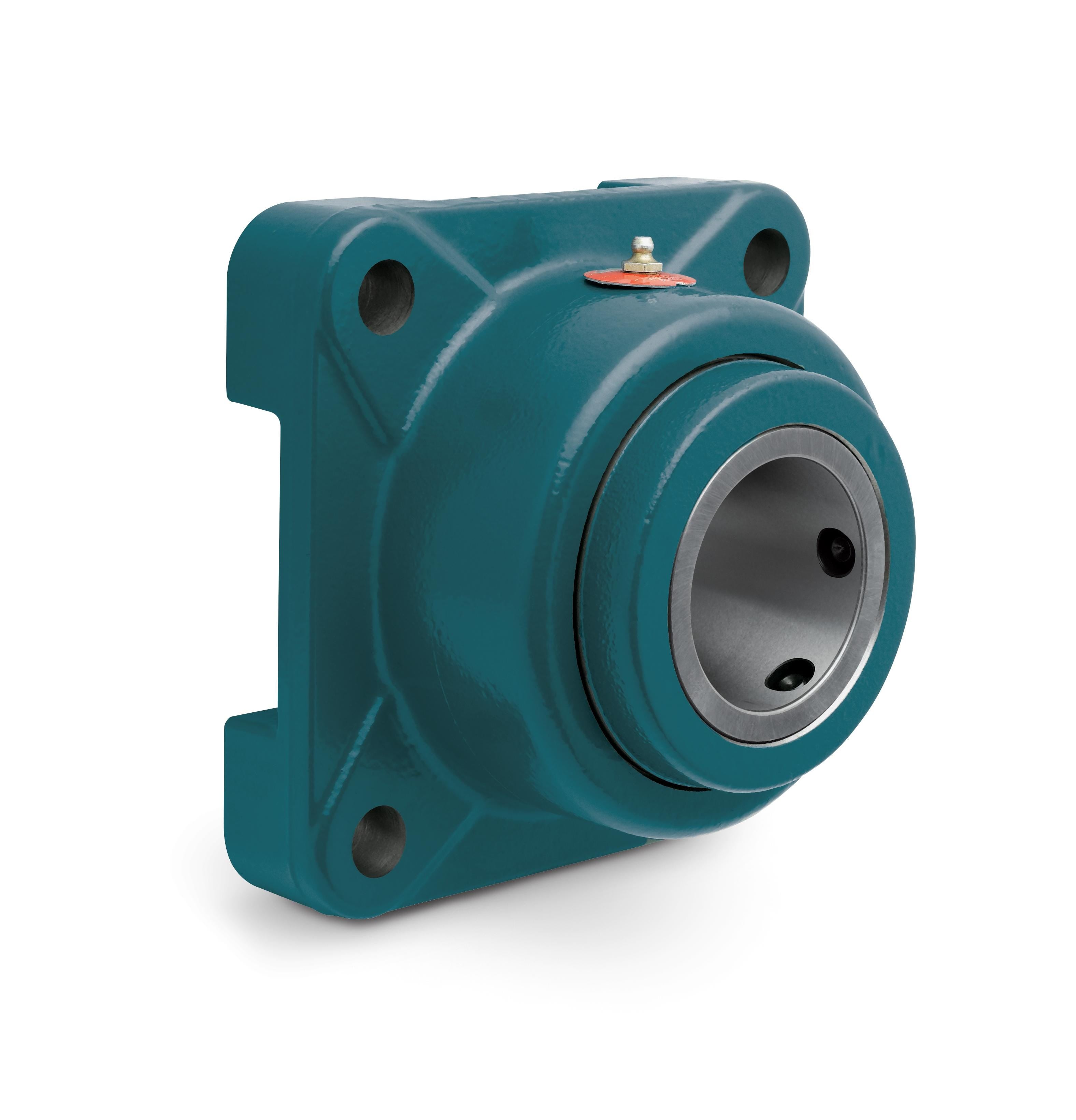

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
023109 - Dodge - F4B-E-212R Type E Extra
F4B-E-212R TYPE E-XTRA
Technical Specifications
| Bearing Type | Tapered Roller |
| Bolt Circle | 8.4900 |
| Bolt Circle (Unit) | INCH |
| Bolt Diameter | 0.7500 |
| Bolt Diameter (Unit) | INCH |
| Bolt to Bolt (Max) | 6.0030 |
| Bolt to Bolt (Max) (Unit) | INCH |
| Bolt to Bolt (Min) | 6.0030 |
| Bolt to Bolt (Min) (Unit) | INCH |
| Bore Length | 4.5000 |
| Bore Length (Unit) | INCH |
| CAD Link | https://dodge-embedded.partcommunity.com/3d-cad-models/?info=dodge/mounted_bearings/tapered_roller_bearings/type_e/f4b_asmtab.prj&varset={SS=2-3/4},{PN=023109},{DESCRIPTION=F4B-E-212R},{A=4-11/16},{B=7-3/4},{C=3-15/16},{D=6},{E=3/16},{F=3/4},{H=1-5/8},{J=6},{L=4-23/32}&hidePortlets=searchHeader |
| Dynamic Load Capacity | 11120 |
| Dynamic Load Capacity (Unit) | POUND_FORCE |
| Expansion Capability | Non-Expansion (Fixed) |
| Grease Name | MobilGrease XHP222 |
| Housing Construction | Solid |
| Housing Dimensional Standard | Type E |
| Housing Material | Cast Iron |
| Housing Type | Four-Bolt Flange (Square) |
| Insert Material | Steel |
| Lubrication | Grease |
| Maximum Speed | 2060 |
| Maximum Speed (Unit) | RPM |
| Seal Type | Triple-Lip Contact |
| Shaft Attachment | Setscrew |
| Shaft Diameter | 2.7500 |
| Shaft Diameter (Unit) | INCH |
| Static Load Capacity | 61200 |
| Static Load Capacity (Unit) | POUND_FORCE |
