023040 - Dodge - P4B-E-507R TYPE E-XTRA
Regular price
$5,660.16 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.

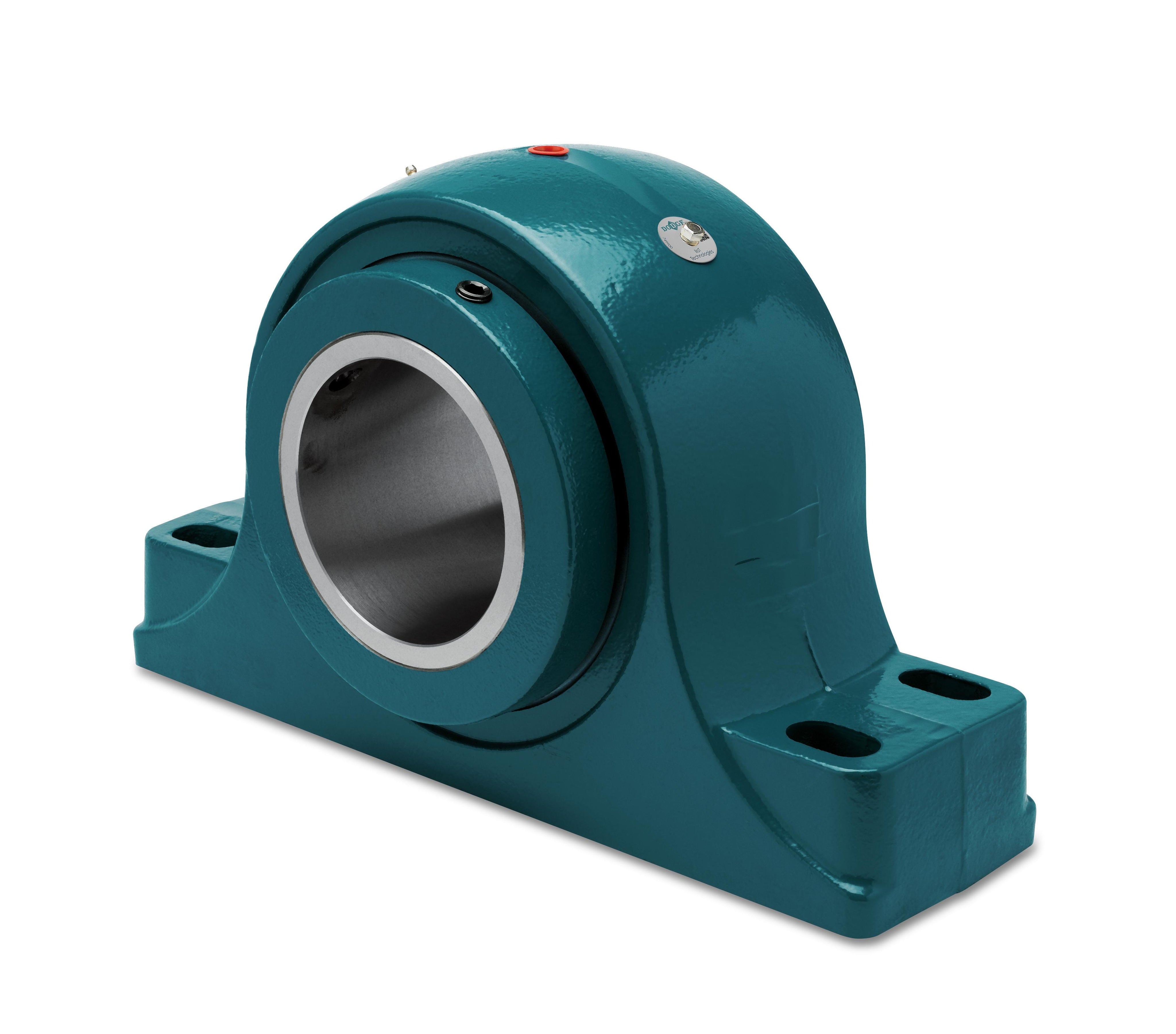

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
023040 - Dodge - P4B-E-507R TYPE E-XTRA
P4B-E-507R
Technical Specifications
| Base to Center Height | 6.6900 |
| Base to Center Height (Unit) | INCH |
| Bearing Type | Tapered Roller |
| Bolt Diameter | 1.0000 |
| Bolt Diameter (Unit) | INCH |
| Bolt to Bolt (Max) | 19.1300 |
| Bolt to Bolt (Max) (Unit) | INCH |
| Bolt to Bolt (Min) | 17.3800 |
| Bolt to Bolt (Min) (Unit) | INCH |
| Bolt Width | 3.7500 |
| Bolt Width (Unit) | INCH |
| Bore Length | 9.0000 |
| Bore Length (Unit) | INCH |
| CAD Link | https://dodge-embedded.partcommunity.com/3d-cad-models/?info=dodge/mounted_bearings/tapered_roller_bearings/type_e/p4b_gi_asmtab.prj&varset={SS=5-7/16},{PN=023040},{DESCRIPTION=P4B-E-507R},{A=9},{B=22},{C=6-1/4},{DMIN=17-3/8},{DMAX=19-1/8},{E=3-3/4},{F=1},{G=2},{H=3-1/4},{J=13-3/16},{J1=12-25/32},{L=9-3/8},{M=6-11/16}&hidePortlets=searchHeader |
| Dynamic Load Capacity | 40700 |
| Dynamic Load Capacity (Unit) | POUND_FORCE |
| Expansion Capability | Non-Expansion (Fixed) |
| Grease Name | MobilGrease XHP222 |
| Housing Construction | Solid |
| Housing Dimensional Standard | Type E |
| Housing Material | Cast Iron |
| Housing Type | Four-Bolt Pillow Block |
| Insert Material | Steel |
| Lubrication | Grease |
| Maximum Speed | 915 |
| Maximum Speed (Unit) | RPM |
| Seal Type | Triple-Lip Contact |
| Shaft Attachment | Setscrew |
| Shaft Diameter | 5.4375 |
| Shaft Diameter (Unit) | INCH |
| Static Load Capacity | 354000 |
| Static Load Capacity (Unit) | POUND_FORCE |
| Take-Up Frame Size | HD-500 |
