023024 - Dodge - P4B-E-207R TYPE E-XTRA
Regular price
$506.88 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.

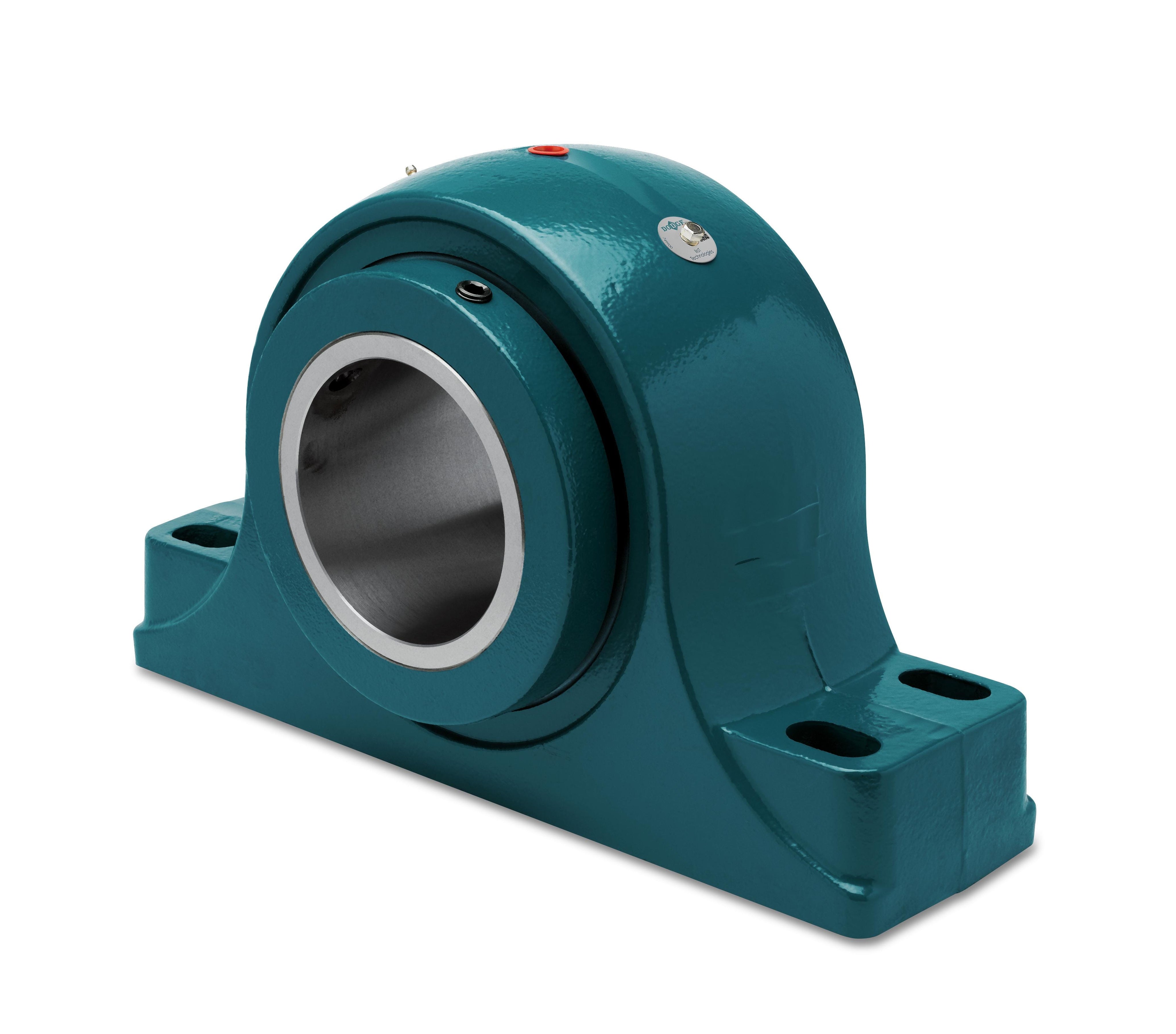

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
023024 - Dodge - P4B-E-207R TYPE E-XTRA
P4B-E-207R
Technical Specifications
| Base to Center Height | 2.7500 |
| Base to Center Height (Unit) | INCH |
| Bearing Type | Tapered Roller |
| Bolt Diameter | 0.6250 |
| Bolt Diameter (Unit) | INCH |
| Bolt to Bolt (Max) | 8.6900 |
| Bolt to Bolt (Max) (Unit) | INCH |
| Bolt to Bolt (Min) | 8.3100 |
| Bolt to Bolt (Min) (Unit) | INCH |
| Bolt Width | 1.8800 |
| Bolt Width (Unit) | INCH |
| Bore Length | 4.0000 |
| Bore Length (Unit) | INCH |
| CAD Link | https://dodge-embedded.partcommunity.com/3d-cad-models/?info=dodge/mounted_bearings/tapered_roller_bearings/type_e/p4b_gi_asmtab.prj&varset={SS=2-7/16},{PN=023024},{DESCRIPTION=P4B-E-207R},{A=4},{B=10-1/2},{C=3-1/2},{DMIN=8-5/16},{DMAX=8-11/16},{E=1-7/8},{F=5/8},{G=7/8},{H=1-5/8},{J=5-1/2},{J1=5-5/8},{L=4-1/16},{M=2-3/4}&hidePortlets=searchHeader |
| Dynamic Load Capacity | 10600 |
| Dynamic Load Capacity (Unit) | POUND_FORCE |
| Expansion Capability | Non-Expansion (Fixed) |
| Grease Name | MobilGrease XHP222 |
| Housing Construction | Solid |
| Housing Dimensional Standard | Type E |
| Housing Material | Cast Iron |
| Housing Type | Four-Bolt Pillow Block |
| Insert Material | Steel |
| Lubrication | Grease |
| Maximum Speed | 2420 |
| Maximum Speed (Unit) | RPM |
| Seal Type | Triple-Lip Contact |
| Shaft Attachment | Setscrew |
| Shaft Diameter | 2.4375 |
| Shaft Diameter (Unit) | INCH |
| Static Load Capacity | 54000 |
| Static Load Capacity (Unit) | POUND_FORCE |
| Take-Up Frame Size | CP-502,HD-200 |
