140918 - Dodge - SEF4B-IP-060MR
Regular price
$708.64 USD
Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.

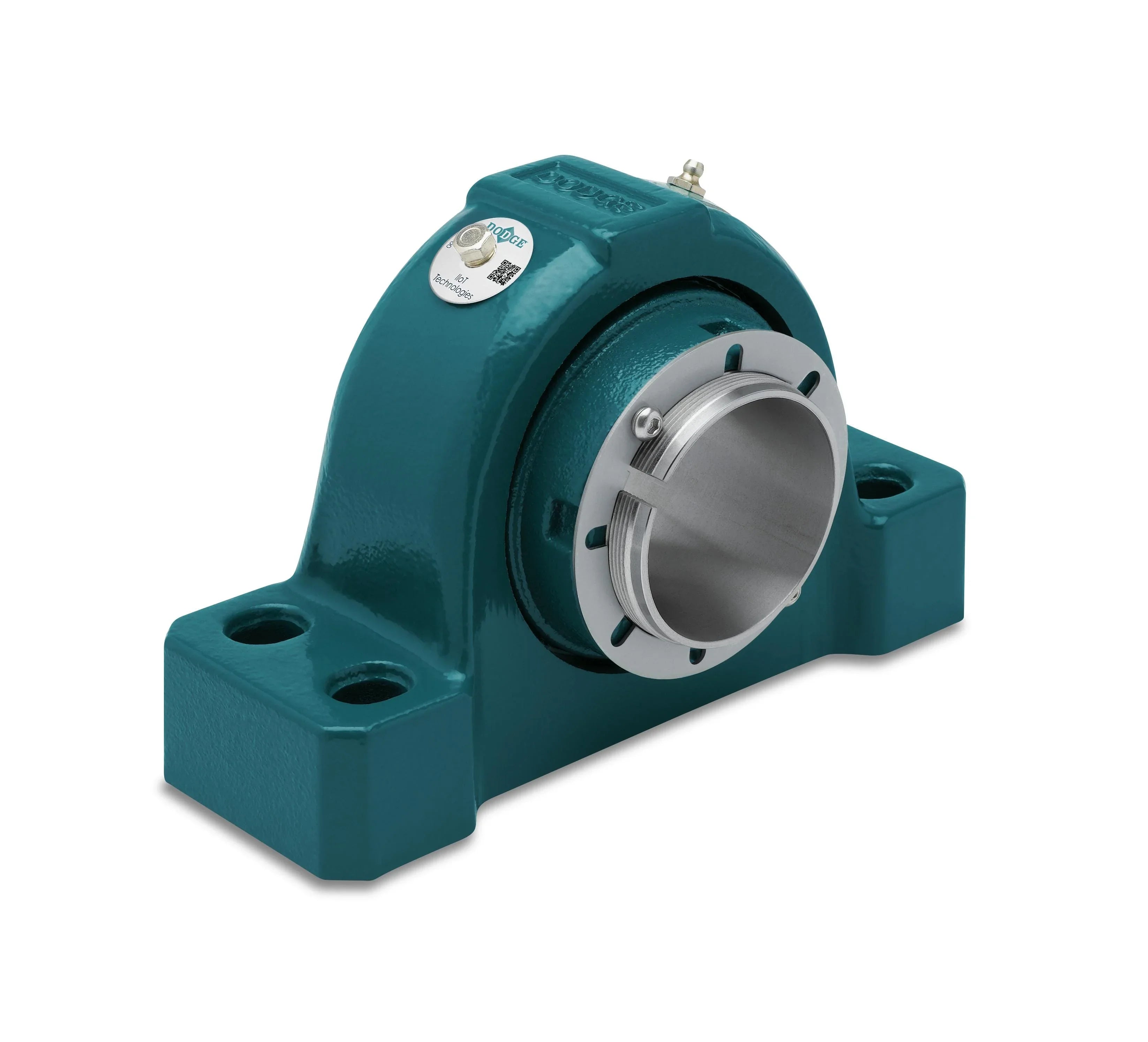

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
SEF4B-IP-060MR
Dodge Mounted Bearing Resources
Mounted Bearings Solution Guide (PDF)Mounted Bearings Nomenclature Chart (PDF)Mounted Bearings Catalog (PDF)| Specifications | |
|---|---|
| Bearing Component | Mounted Bearing |
| Bearing Type | Spherical Roller |
| Bolt Circle | 193.04 mm |
| Bolt Diameter | 15.875 mm |
| Bolt to Bolt (Max) | 136.398 mm |
| Bolt to Bolt (Min) | 136.398 mm |
| Bolt Width | 0 mm |
| Bore Length | 86.868 mm |
| Dynamic Load Capacity | 173481 N |
| Expansion Capability | Non-Expansion (Fixed) |
| Expansion Field Convertible | Yes |
| Greasable | Yes |
| Grease Name | MobilGrease XHP222 |
| Housing Construction | Solid |
| Housing Dimensional Standard | Type E |
| Housing Material | Steel |
| Housing Type | Four-Bolt Flange (Square) |
| Insert Material | Steel |
| Insert Outer Diameter | 120 mm |
| Lubrication | Grease |
| Maximum Speed | 2400 RPM |
| Seal Type | Triple-Lip Contact |
| Sensor Ready | Yes |
| Shaft Attachment | Push-Pull Adapter |
| Shaft Diameter | 60 mm |
| Static Load Capacity | 211290 N |
