080856 - Dodge - P4B526-ISAF-407LE-HT
Regular price
$2,925.78 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.

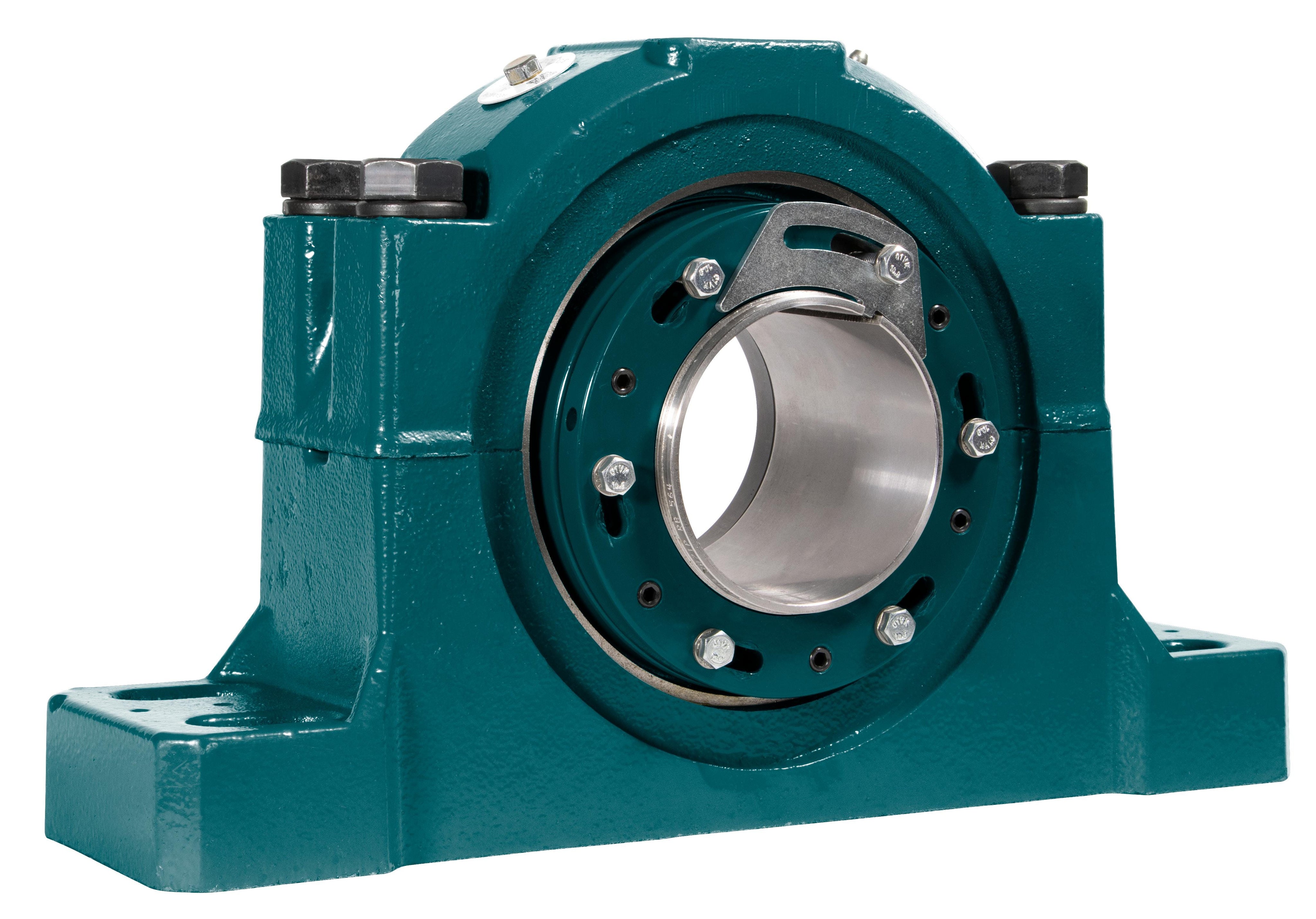

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
080856 - Dodge - P4B526-ISAF-407LE-HT
P4B526-ISAF-407LE-HT
Technical Specifications
| Base to Center Height | 6.0000 |
| Base to Center Height (Unit) | INCH |
| Bearing Component | Mounted Bearing |
| Bearing Type | Spherical Roller |
| Bolt Diameter | 0.8750 |
| Bolt Diameter (Unit) | INCH |
| Bolt to Bolt (Max) | 16.0000 |
| Bolt to Bolt (Max) (Unit) | INCH |
| Bolt to Bolt (Min) | 14.5000 |
| Bolt to Bolt (Min) (Unit) | INCH |
| Bolt Width | 3.2500 |
| Bolt Width (Unit) | INCH |
| Bore Length | 5.2300 |
| Bore Length (Unit) | INCH |
| Dynamic Load Capacity | 104000 |
| Dynamic Load Capacity (Unit) | POUND_FORCE |
| Expansion Capability | Expansion (Float) |
| Grease Name | MobilGrease HTS #2 |
| Housing Construction | Split |
| Housing Dimensional Standard | SAF |
| Housing Material | Cast Iron |
| Housing Type | Four-Bolt Pillow Block |
| Insert Material | Steel |
| Lubrication | Grease |
| Maximum Speed | 2000 |
| Maximum Speed (Unit) | RPM |
| Seal Type | Labyrinth |
| Shaft Attachment | Push-Pull Adapter |
| Shaft Diameter | 4.4375 |
| Shaft Diameter (Unit) | INCH |
| Static Load Capacity | 132000 |
| Static Load Capacity (Unit) | POUND_FORCE |
| Take-Up Frame Size | HD-400,TS-500 |
| HTS Code | 8483208080 |
| ECCN | ear99 |
