071474 - Dodge - EF4B-S2-203R
Regular price
$443.52 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.

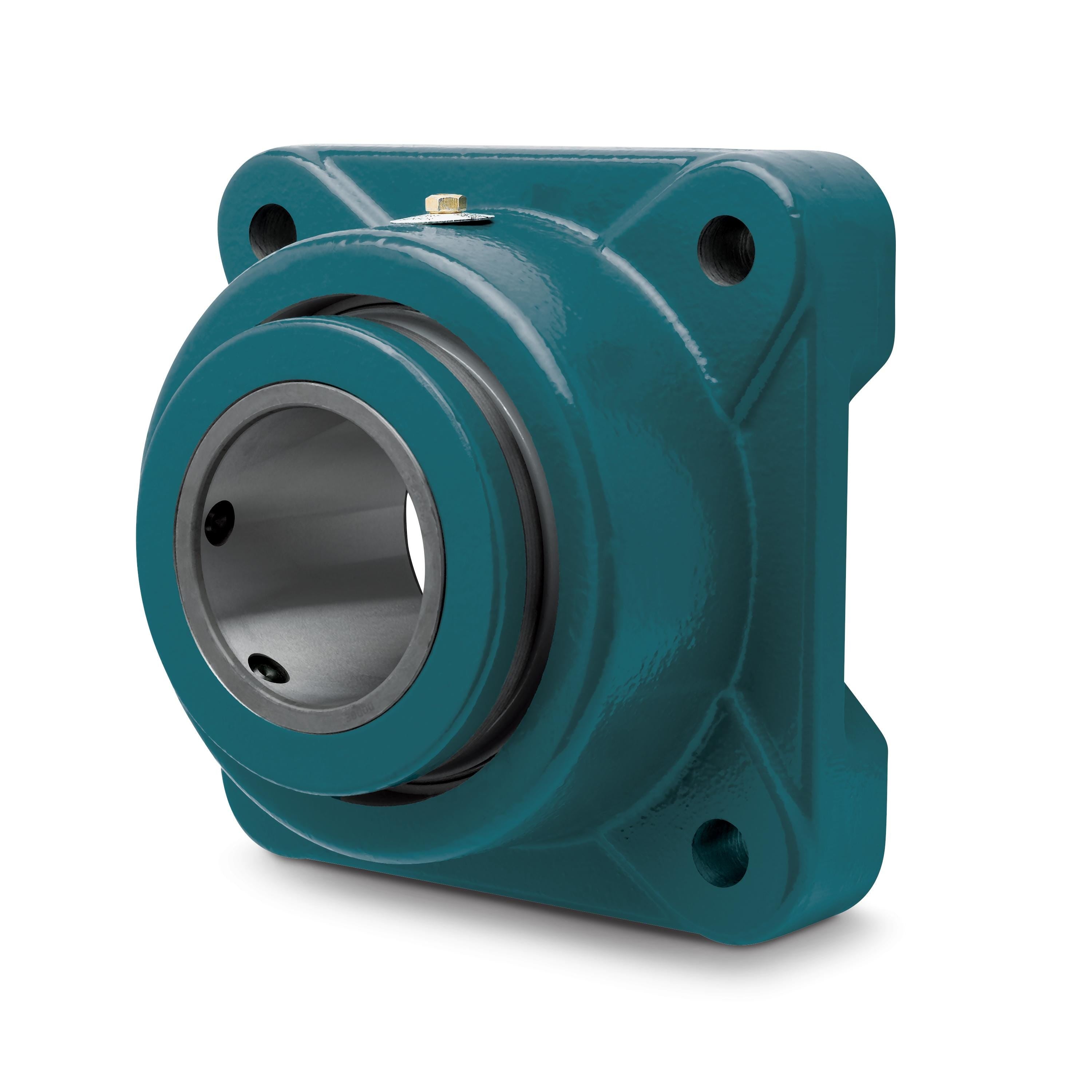

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
071474 - Dodge - EF4B-S2-203R
EF4B-S2-203R
Technical Specifications
| Bearing Component | Mounted Bearing |
| Bearing Type | Spherical Roller |
| Bolt Circle | 6.8900 |
| Bolt Circle (Unit) | INCH |
| Bolt Diameter | 0.6250 |
| Bolt Diameter (Unit) | INCH |
| Bolt to Bolt (Max) | 4.8700 |
| Bolt to Bolt (Max) (Unit) | INCH |
| Bolt to Bolt (Min) | 4.8700 |
| Bolt to Bolt (Min) (Unit) | INCH |
| Bolt Width | 0.0000 |
| Bolt Width (Unit) | INCH |
| Bore Length | 2.9400 |
| Bore Length (Unit) | INCH |
| CAD Link | https://dodge-embedded.partcommunity.com/3d-cad-models/?info=dodge/mounted_bearings/spherical_roller_bearings/setscrew_s_2000/ef4b_s2_cs_asmtab.prj&varset={SS=2-3/16},{TYPE=N},{A=2.94},{B=6.25},{C=3.87},{D=4.87},{DD=6.894},{F=5/8},{G=0.6},{H=1.38},{J=4.88},{L=3.5},{N=2.88},{P=0.93},{X=0.25},{Y=0.025},{Z=2.6},{CS=3/8-16},{TORQUE=290}&hidePortlets=searchHeader |
| Dynamic Load Capacity | 27000 |
| Dynamic Load Capacity (Unit) | POUND_FORCE |
| Expansion Capability | Non-Expansion (Fixed) |
| Grease Name | MobilGrease XHP222 |
| Housing Construction | Solid |
| Housing Dimensional Standard | Type E |
| Housing Material | Cast Iron |
| Housing Type | Four-Bolt Flange (Square) |
| Insert Material | Steel |
| Insert Outer Diameter | 100.0000 |
| Insert Outer Diameter (Unit) | MILLIMETER |
| Lubrication | Grease |
| Maximum Speed | 1950 |
| Maximum Speed (Unit) | RPM |
| Seal Type | Triple-Lip Contact |
| Shaft Attachment | Setscrew |
| Shaft Diameter | 2.1875 |
| Shaft Diameter (Unit) | INCH |
| Static Load Capacity | 29000 |
| Static Load Capacity (Unit) | POUND_FORCE |
| HTS Code | 8483204080 |
| ECCN | ear99 |
