069472 - Dodge - P2B-IP-208L
Regular price
$601.92 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.

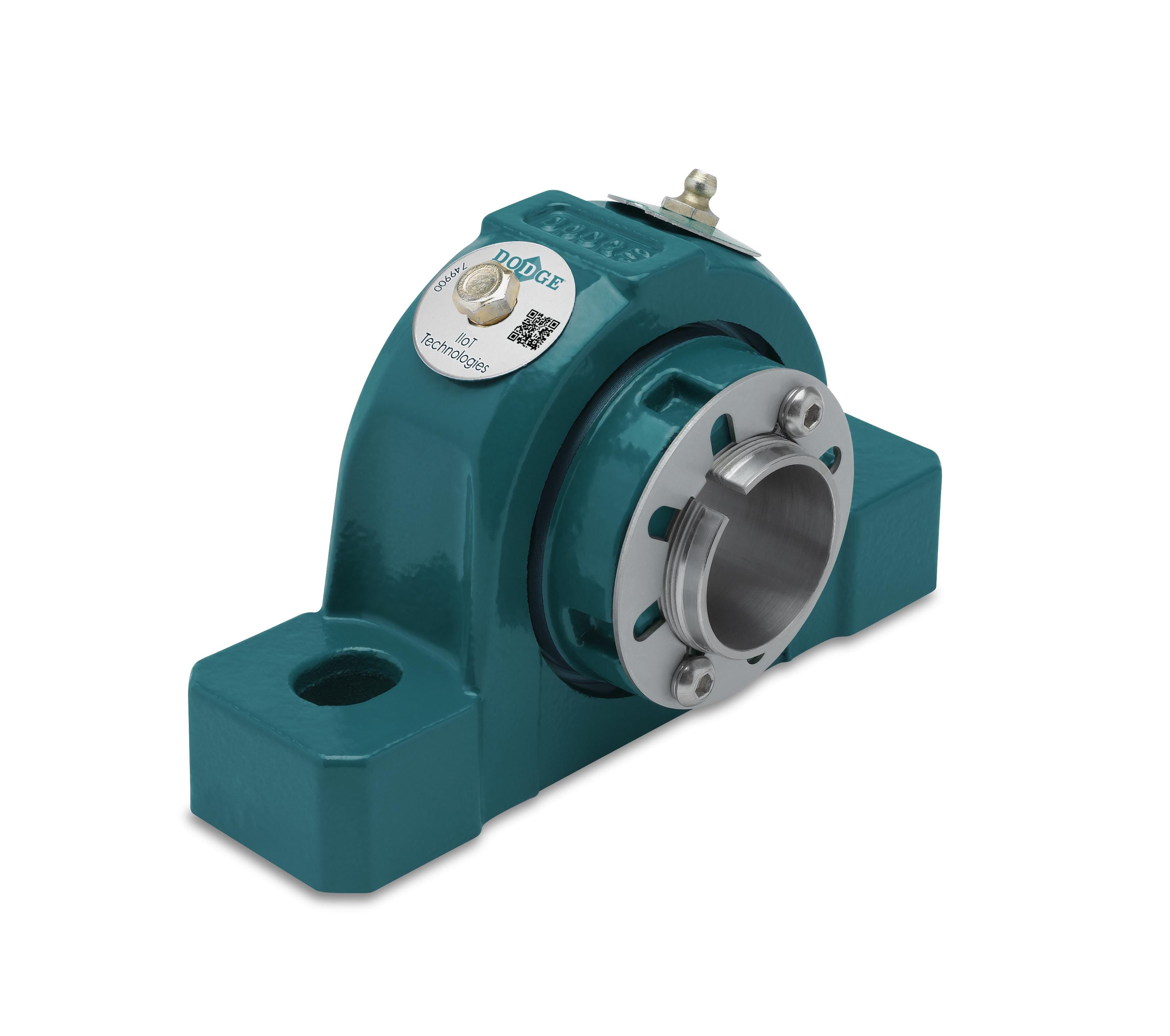

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
069472 - Dodge - P2B-IP-208L
P2B-IP-208L
Technical Specifications
| Base to Center Height | 2.7500 |
| Base to Center Height (Unit) | INCH |
| Bearing Component | Mounted Bearing |
| Bearing Type | Spherical Roller |
| Bolt Diameter | 0.6250 |
| Bolt Diameter (Unit) | INCH |
| Bolt to Bolt (Max) | 7.3100 |
| Bolt to Bolt (Max) (Unit) | INCH |
| Bolt to Bolt (Min) | 6.9400 |
| Bolt to Bolt (Min) (Unit) | INCH |
| Bore Length | 3.4200 |
| Bore Length (Unit) | INCH |
| CAD Link | https://dodge-embedded.partcommunity.com/3d-cad-models/?info=dodge/mounted_bearings/spherical_roller_bearings/push_pull_adapter_imperial/imperial_ip/p2b_ip_hli_asmtab.prj&varset={SS=2-1/2},{PN=069472},{DESCRIPTION=P2B-IP-208L},{EF=Non-Expansion Type},{ST=Labyrinth Seal},{A=3-27/64},{B=9-1/4},{C=2-55/64},{DMIN=6-15/16},{DMAX=7-5/16},{F=5/8},{G=61/64},{H=1-5/8},{J=5-19/32},{L=3-7/8},{M=2-3/4},{R=1-13/64},{S=2-7/32},{X=1/4},{Y=0.025},{Z=2-15/16}&hidePortlets=searchHeader |
| Dynamic Load Capacity | 39000 |
| Dynamic Load Capacity (Unit) | POUND_FORCE |
| Expansion Capability | Non-Expansion (Fixed) |
| Grease Name | MobilGrease XHP222 |
| Housing Construction | Solid |
| Housing Dimensional Standard | S-2000 |
| Housing Material | Cast Iron |
| Housing Type | Two-Bolt Pillow Block |
| Insert Material | Steel |
| Lubrication | Grease |
| Maximum Speed | 3800 |
| Maximum Speed (Unit) | RPM |
| Seal Type | Labyrinth |
| Shaft Attachment | Push-Pull Adapter |
| Shaft Diameter | 2.5000 |
| Shaft Diameter (Unit) | INCH |
| Static Load Capacity | 47500 |
| Static Load Capacity (Unit) | POUND_FORCE |
| Take-Up Frame Size | HD-200,TS-350 |
| HTS Code | 8483208080 |
| ECCN | ear99 |
