048011 - Dodge - P2B-UN2-215 UNI-II
Regular price
$2,147.09 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.

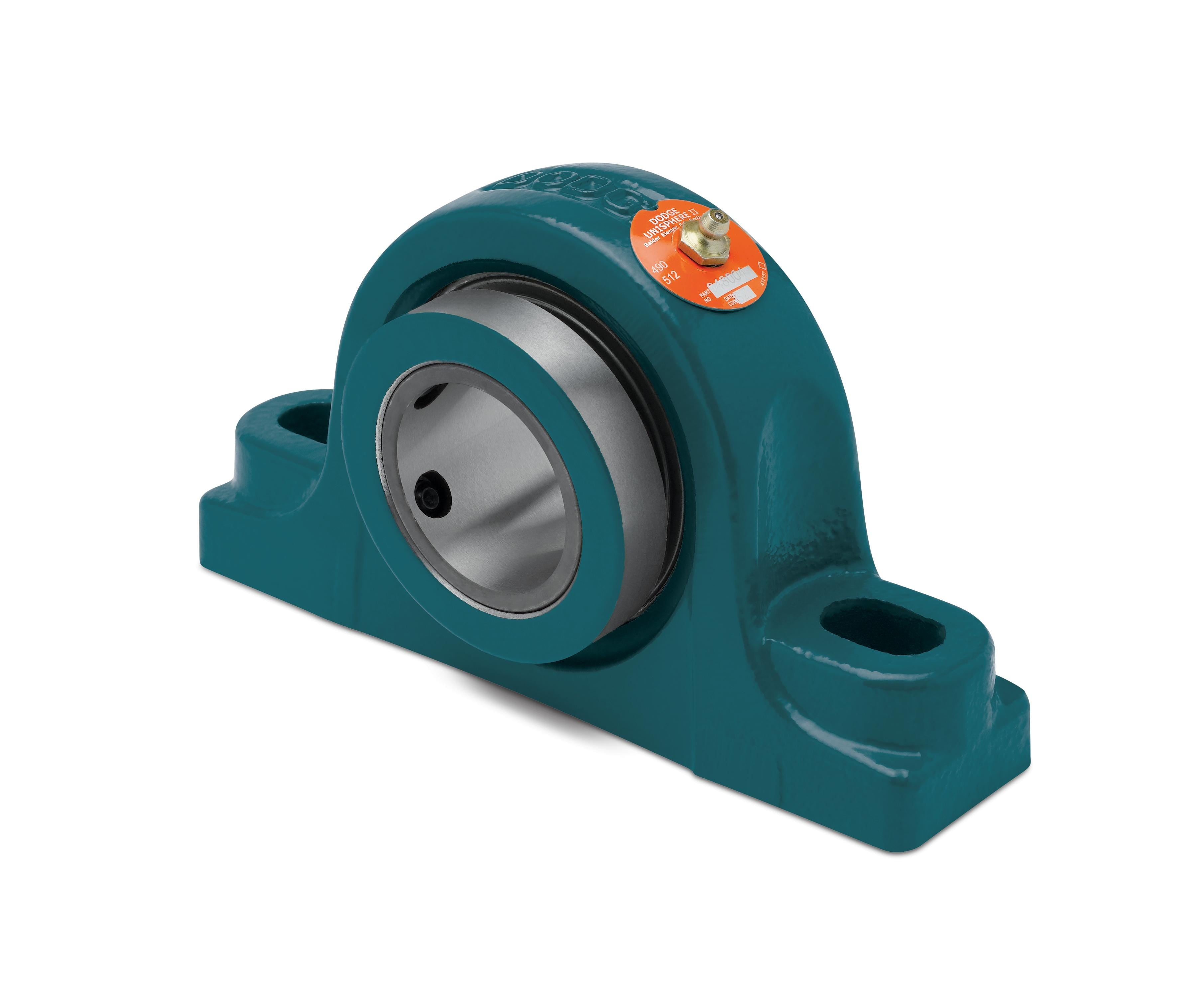

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
048011 - Dodge - P2B-UN2-215 UNI-II
P2B-UN2-215 UNI-II
Technical Specifications
| Base to Center Height | 3.2500 |
| Base to Center Height (Unit) | INCH |
| Bearing Component | Mounted Bearing |
| Bearing Type | Spherical Roller |
| Bolt Diameter | 0.7500 |
| Bolt Diameter (Unit) | INCH |
| Bolt to Bolt (Max) | 8.4400 |
| Bolt to Bolt (Max) (Unit) | INCH |
| Bolt to Bolt (Min) | 7.8100 |
| Bolt to Bolt (Min) (Unit) | INCH |
| Bore Length | 2.4500 |
| Bore Length (Unit) | INCH |
| CAD Link | https://dodge-embedded.partcommunity.com/3d-cad-models/?info=dodge/mounted_bearings/spherical_roller_bearings/setscrew_unisphere_ii/p2b_uni_asmtab.prj&varset={SS=2-15/16},{TYPE=1},{WEIGHT=18.2},{A=2-29/64},{B=10-7/16},{C=2-9/16},{DMIN=7-13/16},{DMAX=8-7/16},{E=3/16},{F=3/4},{G=1-1/8},{H=2-1/4},{J=6-7/16},{L=4-23/32},{M=3-1/4},{R=49/64},{S=1-11/16},{MRPM=1700},{CS=53000},{CD=41500},{RN=20},{RM=0.5748},{PD=4.197},{RC=0.0020-0.0031},{CSS=1/2-13x7/8},{CST=620},{MH=Ductile Iron Grade 65-45-12 ASTM A536},{MIR=4118 Case Carb.},{MOR=E52100 Steel},{MR=Polyamide},{MRO=E52100 Steel},{SM=2�}&hidePortlets=searchHeader |
| Dynamic Load Capacity | 41500 |
| Dynamic Load Capacity (Unit) | POUND_FORCE |
| Expansion Capability | Non-Expansion (Fixed) |
| Grease Name | MobilGrease XHP222 |
| Housing Construction | Solid |
| Housing Material | Ductile Iron |
| Housing Type | Two-Bolt Pillow Block |
| Insert Material | Steel |
| Lubrication | Grease |
| Maximum Speed | 1700 |
| Maximum Speed (Unit) | RPM |
| Seal Type | Single-Lip Contact |
| Shaft Attachment | Setscrew |
| Shaft Diameter | 2.9375 |
| Shaft Diameter (Unit) | INCH |
| Static Load Capacity | 53000 |
| Static Load Capacity (Unit) | POUND_FORCE |
| Take-Up Frame Size | LD-45,TS-350 |
