039751 - Dodge - H4S-328-USAF USAF

In stock
SKU: 039751
Regular price $2,641.23

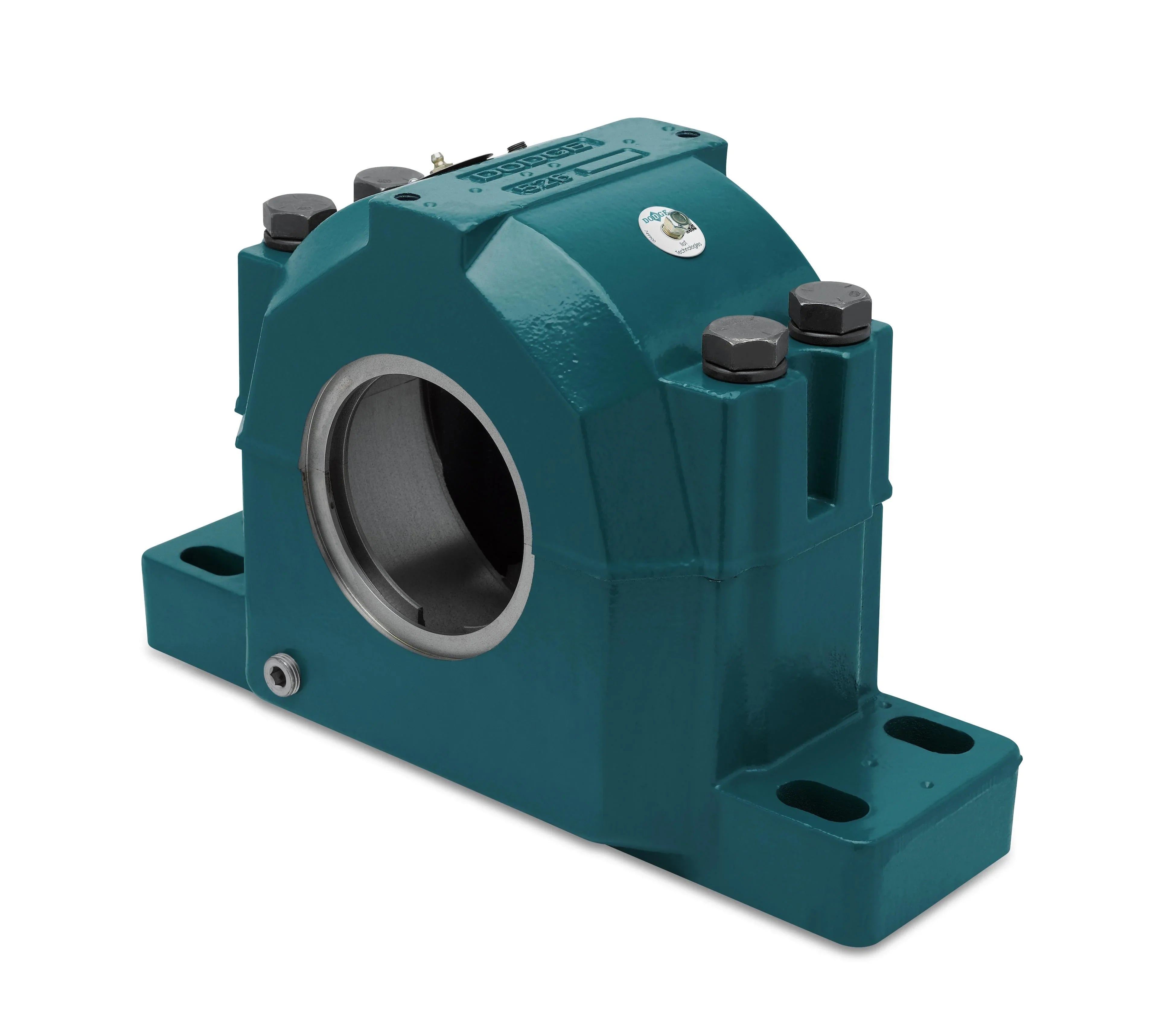

Large capacity oil sump with two oversized drain holes adaptable to circulating oil systems, cast in oil return slots to keep lubricants in, oil-equalization passage allowing pillow block to be drained completely from either side, offset dowels with matched numbers on cape and base to simplify correct assembly, cast-in dimples to locate drill holes for lube fittings, vents, sensors and mounting modifications, housing base threaded to accept grade 5 cap bolts for added strength and pry slots between the cap and base to allow easy separation. Utilizes E design spherical roller bearing insert for higher load carrying capacity. USAF and USDAF match industry standard SAF and SDAF mounting dimensions. Dodge Pillow Block Housing, Type USAF, Series: 328, 4-Bolt Base Mount, 7.06 in Base to Bore Centerline, 24-3/4 in Overall Length, 9.91 in Overall Width, 14.56 in Overall Height, Compatible Bore Diameter: 6-1/4 in/5-5/16 in, Compatible Bearing Type: 22300 Series Direct Mounted Bearing, 19.38 to 21.63 in Bolt Center-to-Center Length, 6-3/4 in Base Width, Cast Iron Cast-in dimples locate drill holes for lube fittings, vents, sensors and mounting modificationsHousing base is threaded to accept four Grade 5 cap bolts for added strengthStandard housings have two oversized drains adaptable to circulating oil systemsPry slots allow easy separation of the pillow blockBoth ends openTriple-Tect seal
