039605 - Dodge - CP4B528-USAF-500TT USAF
Regular price
$3,422.08 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.

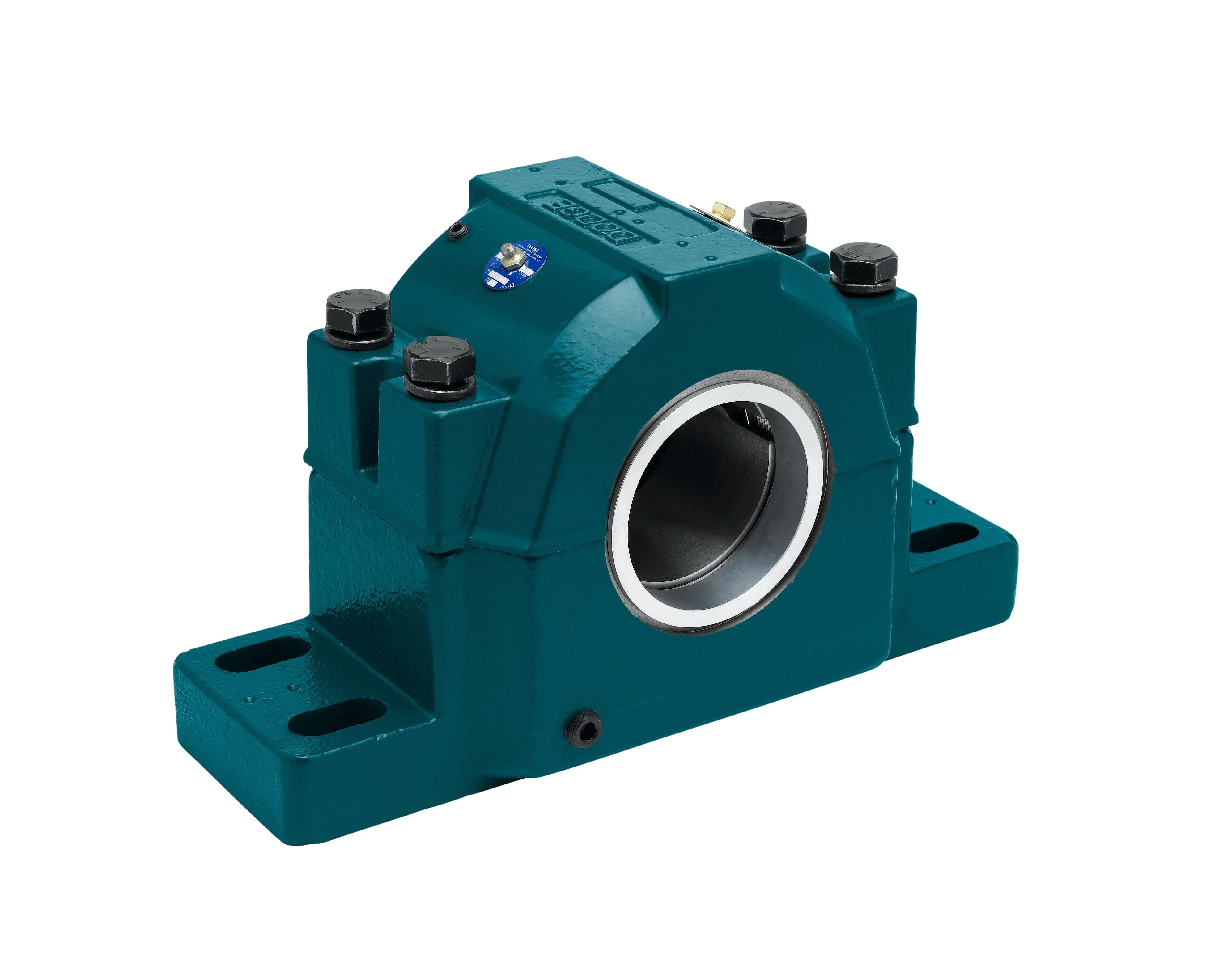

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
CP4B528-USAF-500TT USAF
Dodge Mounted Bearing Resources
Mounted Bearings Solution Guide (PDF)Mounted Bearings Nomenclature Chart (PDF)Mounted Bearings Catalog (PDF)| Specifications | |
|---|---|
| Base to Center Height | 6 in |
| Bearing Component | Mounted Bearing |
| Bearing Type | Spherical Roller |
| Bolt Diameter | 1 in |
| Bolt to Bolt (Max) | 17.38 in |
| Bolt to Bolt (Min) | 15.63 in |
| Bolt Width | 3.38 in |
| Bore Length | 8.47 in |
| Dynamic Load Capacity | 196000 lbf |
| Expansion Capability | Non-Expansion (Fixed) |
| Expansion Field Convertible | Yes |
| Greasable | Yes |
| Grease Name | MobilGrease XHP222 |
| Housing Construction | Split |
| Housing Dimensional Standard | SAF |
| Housing Material | Cast Iron |
| Housing Type | Cast Closed Four-Bolt Pillow Block |
| Insert Material | Steel |
| Lubrication | Grease |
| Maximum Speed | 1700 RPM |
| Seal Type | Combination Contact Labyrinth Seal |
| Sensor Ready | Yes |
| Shaft Attachment | Tapered Adapter |
| Shaft Diameter | 5 in |
| Static Load Capacity | 236000 lbf |
| Take-Up Frame Size | HD-500,TS-500 |
