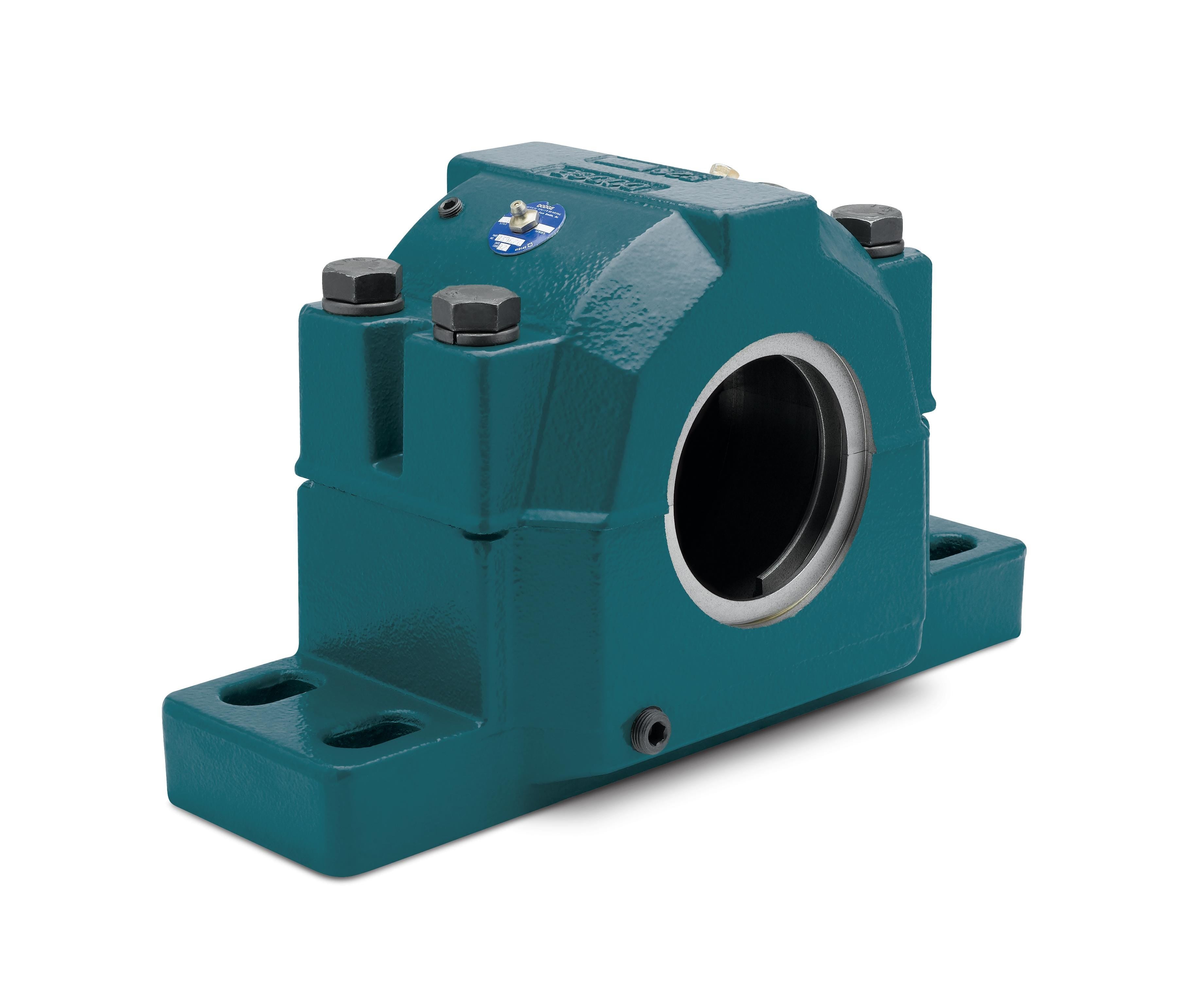

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
039593 - Dodge - CP2B518-USAF-303TT USAF
CP2B518-USAF-303TT USAF
Technical Specifications
| Base to Center Height | 4.0000 |
| Base to Center Height (Unit) | INCH |
| Bearing Component | Mounted Bearing |
| Bearing Type | Spherical Roller |
| Bolt Diameter | 0.7500 |
| Bolt Diameter (Unit) | INCH |
| Bolt to Bolt (Max) | 11.7500 |
| Bolt to Bolt (Max) (Unit) | INCH |
| Bolt to Bolt (Min) | 10.2500 |
| Bolt to Bolt (Min) (Unit) | INCH |
| Bore Length | 6.2000 |
| Bore Length (Unit) | INCH |
| CAD Link | https://dodge-embedded.partcommunity.com/3d-cad-models/?info=dodge/mounted_bearings/spherical_roller_bearings/saf/complete_pillow_blocks/usaf_500_cp_asmtab.prj&varset={NOB=1},{SS=3-3/16},{SERIES=518},{TT=6-13/64},{L1=3-11/16},{A1=6-5/32},{B=13-5/8},{C=3-7/8},{DMIN2=10-1/4},{DMAX2=11-3/4},{DMIN4=10-3/8},{DMAX4=11-5/8},{E=2-1/8},{F2=3/4},{F4=5/8},{H=1-1/4},{J=7-3/8},{K=2-15/32},{M=3-3/4},{P=8-3/16},{Q=1-1/2},{S=3/16},{W=1-3/8},{X=2-1/8},{Y=1-1/16}&hidePortlets=searchHeader |
| Dynamic Load Capacity | 78000 |
| Dynamic Load Capacity (Unit) | POUND_FORCE |
| Expansion Capability | Non-Expansion (Fixed) |
| Grease Name | MobilGrease XHP222 |
| Housing Construction | Split |
| Housing Dimensional Standard | SAF |
| Housing Material | Cast Iron |
| Housing Type | Cast Closed Two-Bolt Pillow Block |
| Insert Material | Steel |
| Lubrication | Grease |
| Maximum Speed | 2600 |
| Maximum Speed (Unit) | RPM |
| Seal Type | Single-Lip Contact |
| Shaft Attachment | Tapered Adapter |
| Shaft Diameter | 3.1875 |
| Shaft Diameter (Unit) | INCH |
| Static Load Capacity | 85000 |
| Static Load Capacity (Unit) | POUND_FORCE |
| Take-Up Frame Size | HD-300,TS-500 |
| HTS Code | 8483208080 |
| ECCN | ear99 |
