039589 - Dodge - CP2B517-USAF-215TT USAF
Regular price
$979.43 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.

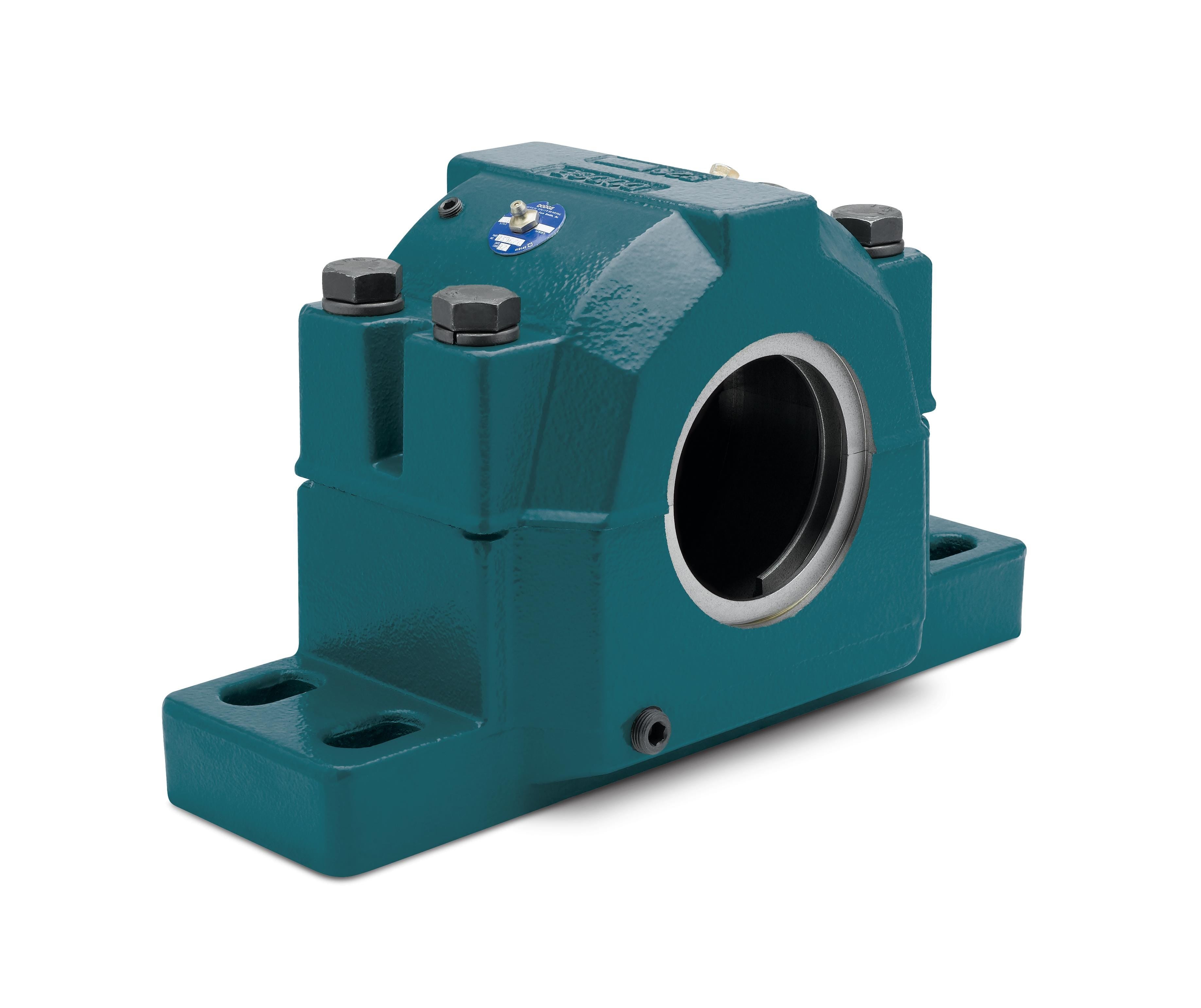

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
039589 - Dodge - CP2B517-USAF-215TT USAF
CP2B517-USAF-215TT USAF
Technical Specifications
| Base to Center Height | 3.7500 |
| Base to Center Height (Unit) | INCH |
| Bearing Component | Mounted Bearing |
| Bearing Type | Spherical Roller |
| Bolt Diameter | 0.7500 |
| Bolt Diameter (Unit) | INCH |
| Bolt to Bolt (Max) | 11.0000 |
| Bolt to Bolt (Max) (Unit) | INCH |
| Bolt to Bolt (Min) | 9.8800 |
| Bolt to Bolt (Min) (Unit) | INCH |
| Bore Length | 5.4400 |
| Bore Length (Unit) | INCH |
| CAD Link | https://dodge-embedded.partcommunity.com/3d-cad-models/?info=dodge/mounted_bearings/spherical_roller_bearings/saf/complete_pillow_blocks/usaf_500_cp_asmtab.prj&varset={NOB=1},{SS=2-15/16},{SERIES=517},{TT=5-7/16},{L1=3-13/32},{A1=5-25/64},{B=12-19/32},{C=3-1/2},{DMIN2=9-7/8},{DMAX2=11},{DMIN4=9-7/8},{DMAX4=11},{E=2-1/8},{F2=3/4},{F4=5/8},{H=1-1/4},{J=7-3/8},{K=2-15/32},{M=3-3/4},{P=8-3/16},{Q=1-1/2},{S=3/16},{W=1-3/8},{X=2-1/8},{Y=1-1/16}&hidePortlets=searchHeader |
| Dynamic Load Capacity | 68000 |
| Dynamic Load Capacity (Unit) | POUND_FORCE |
| Expansion Capability | Non-Expansion (Fixed) |
| Grease Name | MobilGrease XHP222 |
| Housing Construction | Split |
| Housing Dimensional Standard | SAF |
| Housing Material | Cast Iron |
| Housing Type | Cast Closed Two-Bolt Pillow Block |
| Insert Material | Steel |
| Lubrication | Grease |
| Maximum Speed | 3000 |
| Maximum Speed (Unit) | RPM |
| Seal Type | Single-Lip Contact |
| Shaft Attachment | Tapered Adapter |
| Shaft Diameter | 2.9375 |
| Shaft Diameter (Unit) | INCH |
| Static Load Capacity | 73500 |
| Static Load Capacity (Unit) | POUND_FORCE |
| Take-Up Frame Size | HD-250,TS-400 |
| HTS Code | 8483208080 |
| ECCN | ear99 |
