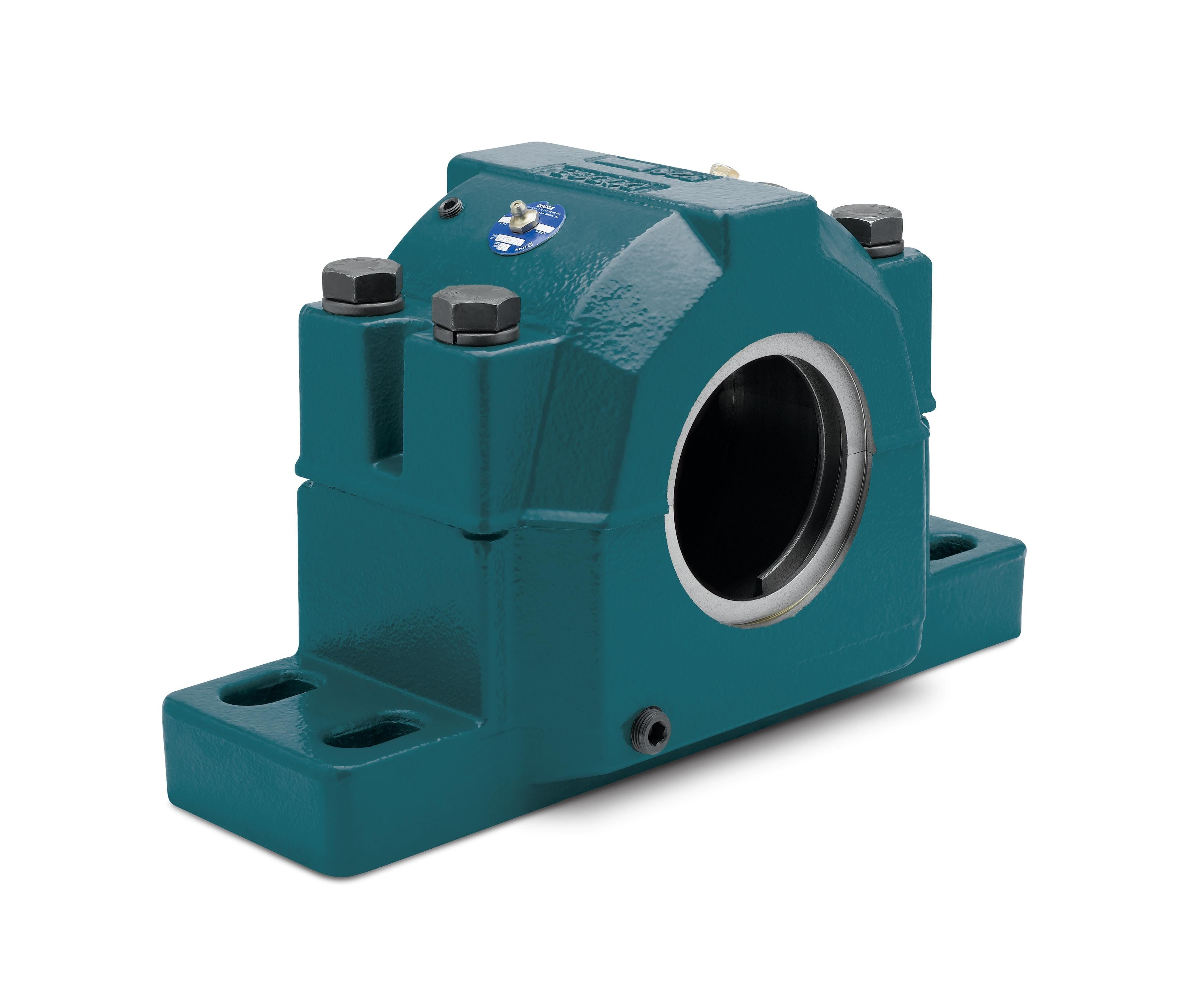

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
039578 - Dodge - CP2B513-USAF-203TT USAF
CP2B513-USAF-203TT USAF
Technical Specifications
| Base to Center Height | 3.0000 |
| Base to Center Height (Unit) | INCH |
| Bearing Component | Mounted Bearing |
| Bearing Type | Spherical Roller |
| Bolt Diameter | 0.6250 |
| Bolt Diameter (Unit) | INCH |
| Bolt to Bolt (Max) | 9.5000 |
| Bolt to Bolt (Max) (Unit) | INCH |
| Bolt to Bolt (Min) | 8.5000 |
| Bolt to Bolt (Min) (Unit) | INCH |
| Bore Length | 4.7200 |
| Bore Length (Unit) | INCH |
| CAD Link | https://dodge-embedded.partcommunity.com/3d-cad-models/?info=dodge/mounted_bearings/spherical_roller_bearings/saf/complete_pillow_blocks/usaf_500_cp_asmtab.prj&varset={NOB=1},{SS=2-3/16},{SERIES=513},{TT=4-23/32},{L1=2-17/32},{A1=4-41/64},{B=11},{C=3-1/8},{DMIN2=8-1/8},{DMAX2=9-1/2},{DMIN4=8-1/8},{DMAX4=9-1/2},{E=1-7/8},{F2=5/8},{F4=1/2},{H=1-1/32},{J=5-15/16},{K=2-5/32},{M=3},{P=6-1/2},{Q=1-3/8},{S=5/32},{W=1-7/64},{X=1-21/32},{Y=25/32}&hidePortlets=searchHeader |
| Dynamic Load Capacity | 45500 |
| Dynamic Load Capacity (Unit) | POUND_FORCE |
| Expansion Capability | Non-Expansion (Fixed) |
| Grease Name | MobilGrease XHP222 |
| Housing Construction | Split |
| Housing Dimensional Standard | SAF |
| Housing Material | Cast Iron |
| Housing Type | Cast Closed Two-Bolt Pillow Block |
| Insert Material | Steel |
| Lubrication | Grease |
| Maximum Speed | 3800 |
| Maximum Speed (Unit) | RPM |
| Seal Type | Single-Lip Contact |
| Shaft Attachment | Tapered Adapter |
| Shaft Diameter | 2.1875 |
| Shaft Diameter (Unit) | INCH |
| Static Load Capacity | 47500 |
| Static Load Capacity (Unit) | POUND_FORCE |
| Take-Up Frame Size | HD-200,TS-400 |
| HTS Code | 8483208080 |
| ECCN | ear99 |
