039207 - Dodge - P4B234-USAF-170MTT USAF
Regular price
$5,597.85 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.

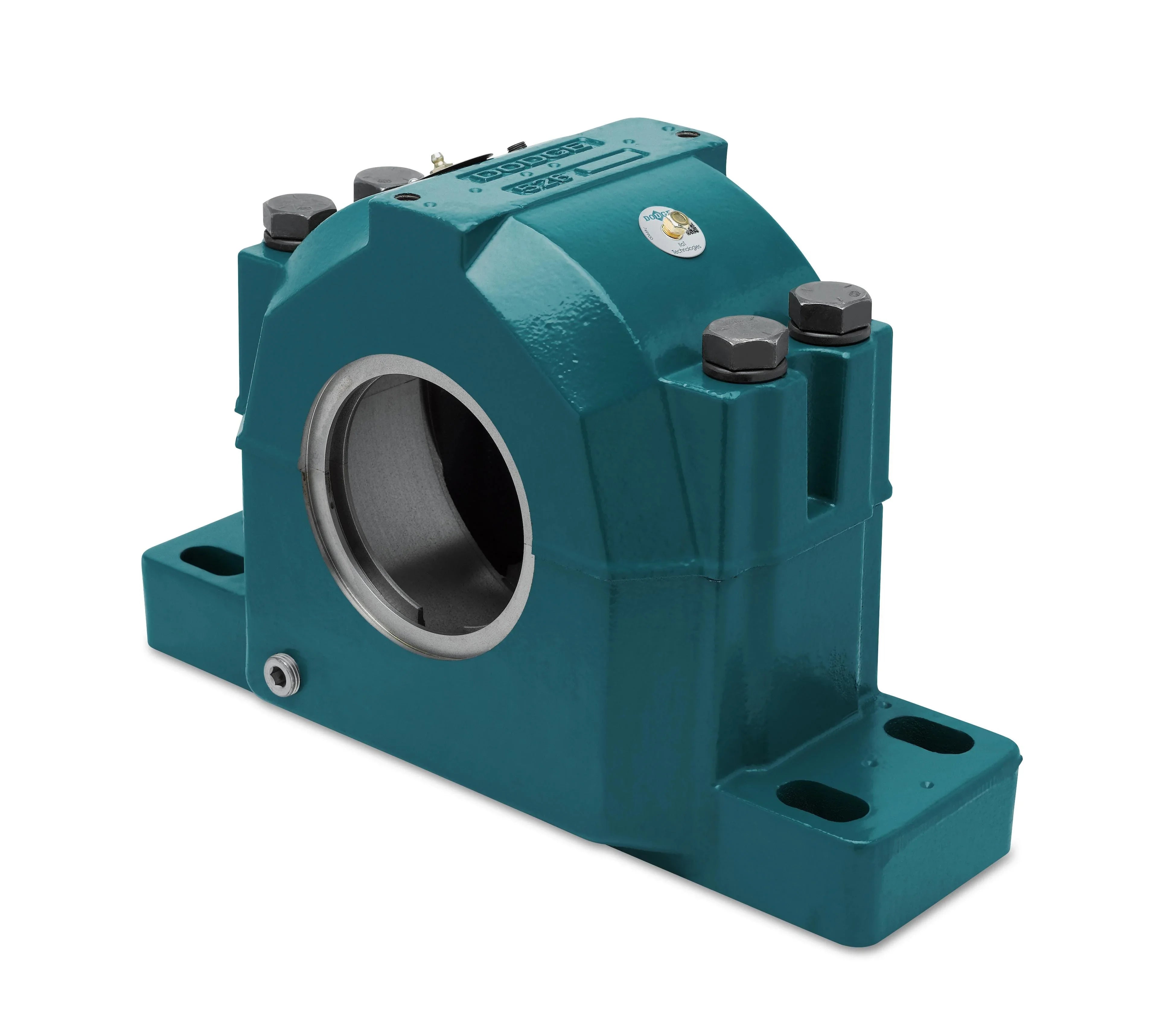

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
039207 - Dodge - P4B234-USAF-170MTT USAF
P4B234-USAF-170MTT USAF
Technical Specifications
| Base to Center Height | 7.0600 |
| Base to Center Height (Unit) | INCH |
| Bearing Component | Mounted Bearing |
| Bearing Type | Spherical Roller |
| Bolt Diameter | 1.0000 |
| Bolt Diameter (Unit) | INCH |
| Bolt to Bolt (Max) | 21.6300 |
| Bolt to Bolt (Max) (Unit) | INCH |
| Bolt to Bolt (Min) | 19.3800 |
| Bolt to Bolt (Min) (Unit) | INCH |
| Bolt Width | 4.2500 |
| Bolt Width (Unit) | INCH |
| Bore Length | 9.8000 |
| Bore Length (Unit) | INCH |
| CAD Link | https://dodge-embedded.partcommunity.com/3d-cad-models/?info=dodge/mounted_bearings/spherical_roller_bearings/saf/complete_pillow_blocks/uasf_200_asmtab.prj&varset={NOB=2},{S2=7-7/16},{S3=6-7/16},{SERIES=234},{TT=9-53/64},{L1=7-15/16},{L2=6-55/64},{A1=9-29/32},{B=24-3/4},{C=6-3/4},{DMIN4=19-3/8},{DMAX4=21-5/8},{E=4-1/4},{H=2-7/8},{J=14-9/16},{K=4-5/8},{M=7-1/16},{P=16-13/16},{Q=3-1/8},{S=3/16},{W=2-3/16},{X=4-5/32},{Y=1-21/64}&hidePortlets=searchHeader |
| Dynamic Load Capacity | 309000 |
| Dynamic Load Capacity (Unit) | POUND_FORCE |
| Expansion Capability | Non-Expansion (Fixed) |
| Grease Name | MobilGrease XHP222 |
| Housing Construction | Split |
| Housing Dimensional Standard | SAF |
| Housing Material | Cast Iron |
| Housing Type | Four-Bolt Pillow Block |
| Insert Material | Steel |
| Lubrication | Grease |
| Maximum Speed | 1300 |
| Maximum Speed (Unit) | RPM |
| Seal Type | Single-Lip Contact |
| Shaft Attachment | Direct Mount |
| Shaft Diameter | 170.0000 |
| Shaft Diameter (Unit) | MILLIMETER |
| Static Load Capacity | 355000 |
| Static Load Capacity (Unit) | POUND_FORCE |
| HTS Code | 8483208080 |
| ECCN | ear99 |
