039201 - Dodge - P4B228-USAF-140MTT USAF
Regular price
$3,401.04 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.

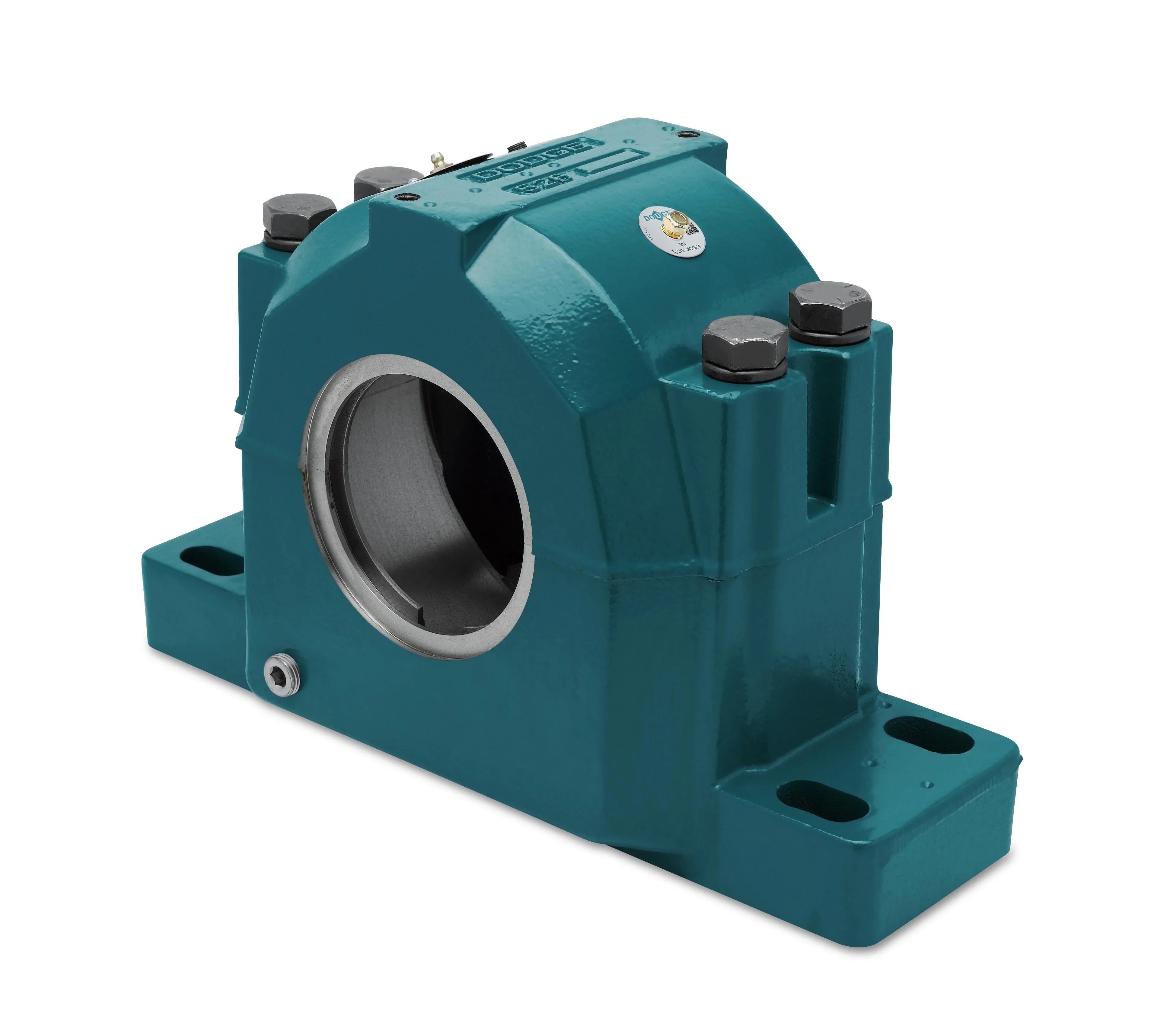

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
039201 - Dodge - P4B228-USAF-140MTT USAF
P4B228-USAF-140MTT USAF
Technical Specifications
| Base to Center Height | 6.0000 |
| Base to Center Height (Unit) | INCH |
| Bearing Component | Mounted Bearing |
| Bearing Type | Spherical Roller |
| Bolt Diameter | 1.0000 |
| Bolt Diameter (Unit) | INCH |
| Bolt to Bolt (Max) | 17.3800 |
| Bolt to Bolt (Max) (Unit) | INCH |
| Bolt to Bolt (Min) | 15.6300 |
| Bolt to Bolt (Min) (Unit) | INCH |
| Bolt Width | 3.3800 |
| Bolt Width (Unit) | INCH |
| Bore Length | 8.5300 |
| Bore Length (Unit) | INCH |
| CAD Link | https://dodge-embedded.partcommunity.com/3d-cad-models/?info=dodge/mounted_bearings/spherical_roller_bearings/saf/complete_pillow_blocks/uasf_200_asmtab.prj&varset={NOB=2},{S2=6-1/4},{S3=5-5/16},{SERIES=228},{TT=8-17/32},{L1=6-11/16},{L2=5-3/4},{A1=8-49/64},{B=19-11/16},{C=5-7/8},{DMIN4=15-5/8},{DMAX4=17-3/8},{E=3-3/8},{H=2-1/16},{J=11-13/16},{K=4},{M=6},{P=13-1/4},{Q=2-29/64},{S=3/16},{W=2-1/32},{X=3-5/8},{Y=1-15/32}&hidePortlets=searchHeader |
| Dynamic Load Capacity | 196000 |
| Dynamic Load Capacity (Unit) | POUND_FORCE |
| Expansion Capability | Non-Expansion (Fixed) |
| Grease Name | MobilGrease XHP222 |
| Housing Construction | Split |
| Housing Dimensional Standard | SAF |
| Housing Material | Cast Iron |
| Housing Type | Four-Bolt Pillow Block |
| Insert Material | Steel |
| Lubrication | Grease |
| Maximum Speed | 1700 |
| Maximum Speed (Unit) | RPM |
| Seal Type | Single-Lip Contact |
| Shaft Attachment | Direct Mount |
| Shaft Diameter | 140.0000 |
| Shaft Diameter (Unit) | MILLIMETER |
| Static Load Capacity | 236000 |
| Static Load Capacity (Unit) | POUND_FORCE |
| ECCN | ear99 |
