039199 - Dodge - P4B226-USAF-130MTT USAF
Regular price
$2,714.79 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.

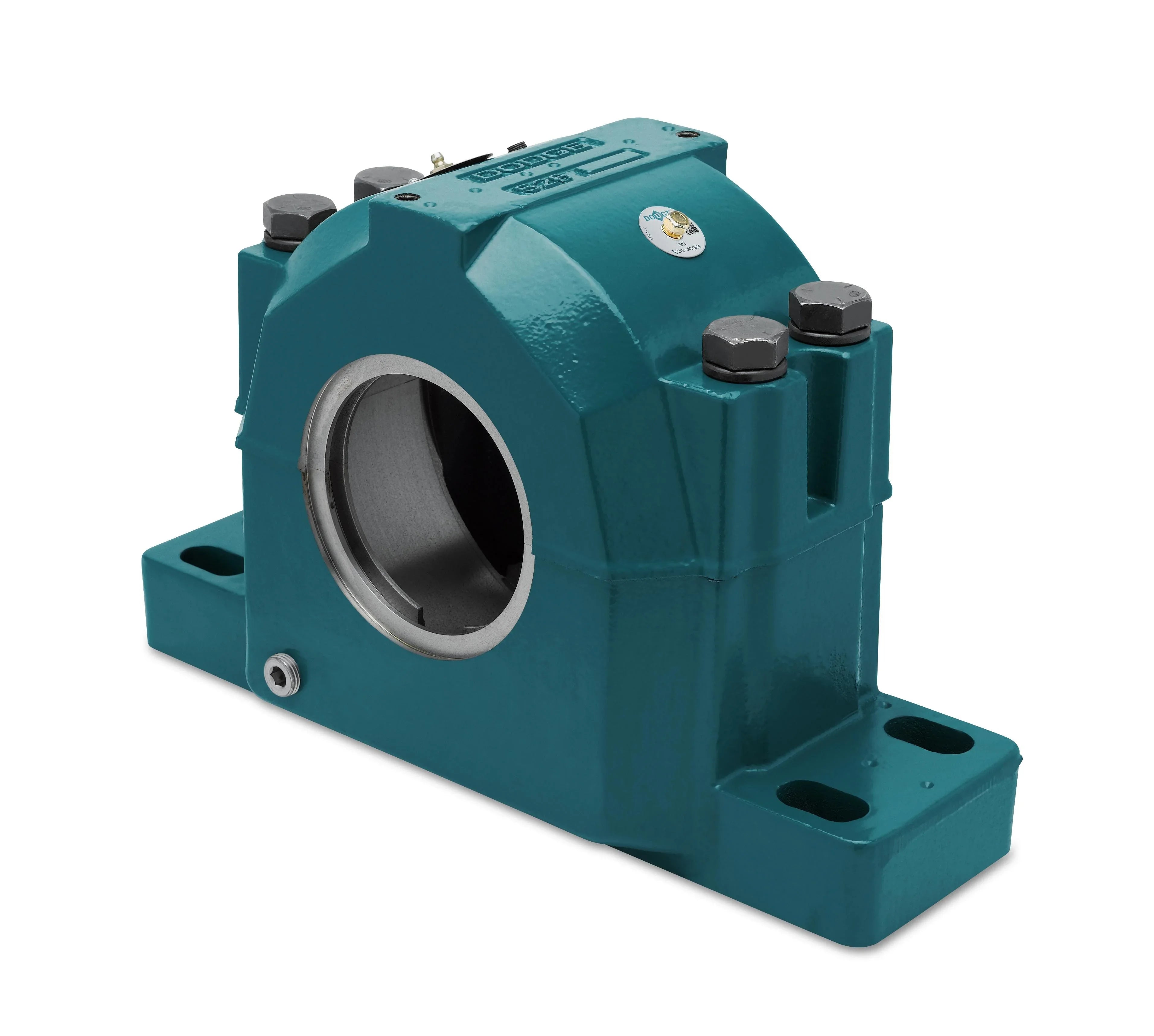

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
039199 - Dodge - P4B226-USAF-130MTT USAF
039199 P4B226-USAF-130MTT USAF
Technical Specifications
| Base to Center Height | 6.0000 |
| Base to Center Height (Unit) | INCH |
| Bearing Component | Mounted Bearing |
| Bearing Type | Spherical Roller |
| Bolt Diameter | 0.8750 |
| Bolt Diameter (Unit) | INCH |
| Bolt to Bolt (Max) | 16.0000 |
| Bolt to Bolt (Max) (Unit) | INCH |
| Bolt to Bolt (Min) | 14.5000 |
| Bolt to Bolt (Min) (Unit) | INCH |
| Bolt Width | 3.2500 |
| Bolt Width (Unit) | INCH |
| Bore Length | 8.1400 |
| Bore Length (Unit) | INCH |
| CAD Link | https://dodge-embedded.partcommunity.com/3d-cad-models/?info=dodge/mounted_bearings/spherical_roller_bearings/saf/complete_pillow_blocks/uasf_200_asmtab.prj&varset={NOB=2},{S2=5-7/8},{S3=4-15/16},{SERIES=226},{TT=8-9/64},{L1=6-19/64},{L2=5-23/64},{A1=8-17/64},{B=18-3/8},{C=5-1/8},{DMIN4=14-1/2},{DMAX4=16},{E=3-1/4},{H=2-1/16},{J=11-17/32},{K=3-3/4},{M=6},{P=12-13/32},{Q=2-15/32},{S=3/16},{W=2-11/32},{X=3-5/16},{Y=1-5/8}&hidePortlets=searchHeader |
| Dynamic Load Capacity | 170000 |
| Dynamic Load Capacity (Unit) | POUND_FORCE |
| Expansion Capability | Non-Expansion (Fixed) |
| Grease Name | MobilGrease XHP222 |
| Housing Construction | Split |
| Housing Dimensional Standard | SAF |
| Housing Material | Cast Iron |
| Housing Type | Four-Bolt Pillow Block |
| Insert Material | Steel |
| Lubrication | Grease |
| Maximum Speed | 1800 |
| Maximum Speed (Unit) | RPM |
| Seal Type | Single-Lip Contact |
| Shaft Attachment | Direct Mount |
| Shaft Diameter | 130.0000 |
| Shaft Diameter (Unit) | MILLIMETER |
| Static Load Capacity | 200000 |
| Static Load Capacity (Unit) | POUND_FORCE |
| HTS Code | 8483208080 |
| ECCN | ear99 |
