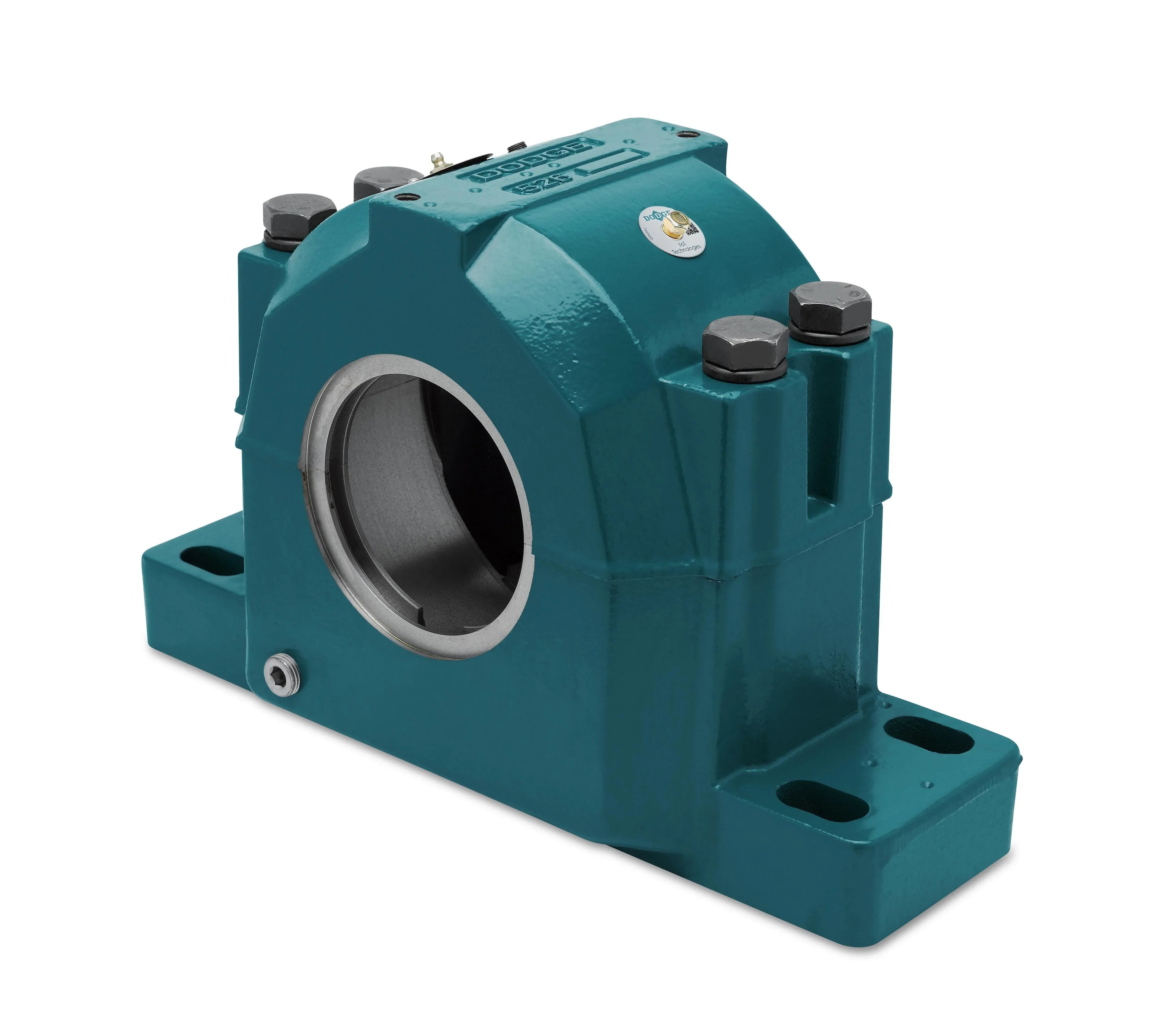

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
039197 - Dodge - P4B224-USAF-120MTT USAF
039197 P4B224-USAF-120MTT PILLOWBLOCK
Technical Specifications
| Base to Center Height | 5.2500 |
| Base to Center Height (Unit) | INCH |
| Bearing Component | Mounted Bearing |
| Bearing Type | Spherical Roller |
| Bolt Diameter | 0.7500 |
| Bolt Diameter (Unit) | INCH |
| Bolt to Bolt (Max) | 14.5000 |
| Bolt to Bolt (Max) (Unit) | INCH |
| Bolt to Bolt (Min) | 13.2500 |
| Bolt to Bolt (Min) (Unit) | INCH |
| Bolt Width | 2.7500 |
| Bolt Width (Unit) | INCH |
| Bore Length | 7.9100 |
| Bore Length (Unit) | INCH |
| CAD Link | https://dodge-embedded.partcommunity.com/3d-cad-models/?info=dodge/mounted_bearings/spherical_roller_bearings/saf/complete_pillow_blocks/uasf_200_asmtab.prj&varset={NOB=2},{S2=5-5/16},{S3=4-9/16},{SERIES=224},{TT=7-29/32},{L1=5-3/4},{L2=4-29/32},{A1=8-3/64},{B=16-1/2},{C=4-23/32},{DMIN4=13-1/4},{DMAX4=14-1/2},{E=2-3/4},{H=1-1/2},{J=10-1/4},{K=3-41/64},{M=5-1/4},{P=11-1/4},{Q=2-9/32},{S=3/16},{W=1-27/32},{X=3-3/16},{Y=1-3/8}&hidePortlets=searchHeader |
| Dynamic Load Capacity | 143000 |
| Dynamic Load Capacity (Unit) | POUND_FORCE |
| Expansion Capability | Non-Expansion (Fixed) |
| Grease Name | MobilGrease XHP222 |
| Housing Construction | Split |
| Housing Dimensional Standard | SAF |
| Housing Material | Cast Iron |
| Housing Type | Four-Bolt Pillow Block |
| Insert Material | Steel |
| Lubrication | Grease |
| Maximum Speed | 1900 |
| Maximum Speed (Unit) | RPM |
| Seal Type | Single-Lip Contact |
| Shaft Attachment | Direct Mount |
| Shaft Diameter | 120.0000 |
| Shaft Diameter (Unit) | MILLIMETER |
| Static Load Capacity | 166000 |
| Static Load Capacity (Unit) | POUND_FORCE |
| HTS Code | 8483208080 |
| ECCN | ear99 |
