039175 - Dodge - P2B215-USAF-075MTT USAF
Regular price
$704.66 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.

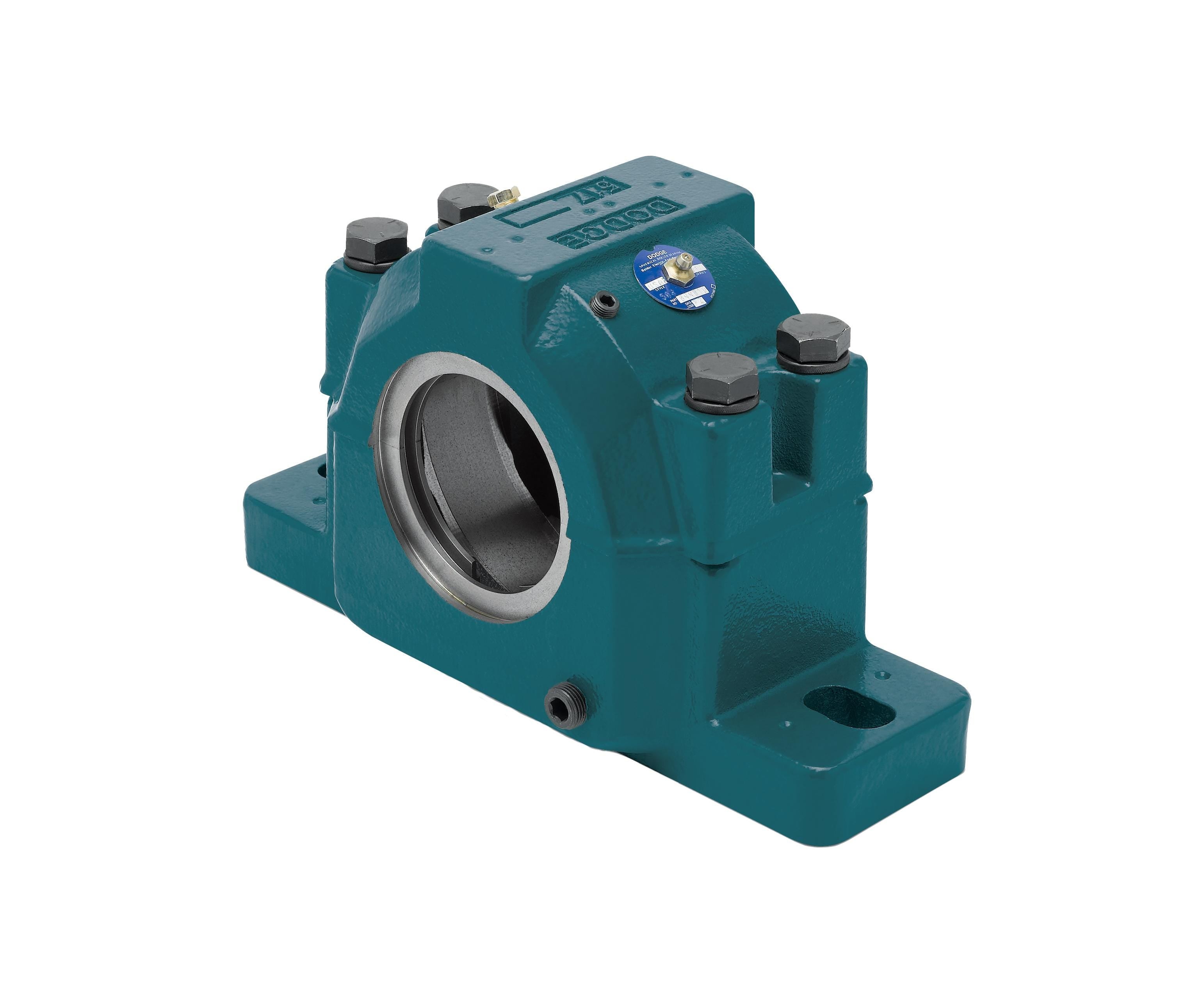

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
039175 - Dodge - P2B215-USAF-075MTT USAF
P2B215-USAF-075MTT USAF
Technical Specifications
| Base to Center Height | 3.2500 |
| Base to Center Height (Unit) | INCH |
| Bearing Component | Mounted Bearing |
| Bearing Type | Spherical Roller |
| Bolt Diameter | 0.6250 |
| Bolt Diameter (Unit) | INCH |
| Bolt to Bolt (Max) | 9.6800 |
| Bolt to Bolt (Max) (Unit) | INCH |
| Bolt to Bolt (Min) | 8.6300 |
| Bolt to Bolt (Min) (Unit) | INCH |
| Bore Length | 5.0900 |
| Bore Length (Unit) | INCH |
| CAD Link | https://dodge-embedded.partcommunity.com/3d-cad-models/?info=dodge/mounted_bearings/spherical_roller_bearings/saf/complete_pillow_blocks/uasf_200_asmtab.prj&varset={NOB=1},{S2=3-7/16},{S3=2-13/16},{SERIES=215},{TT=5-3/32},{L1=3-59/64},{L2=3-5/32},{A1=5-13/64},{B=11-1/8},{C=3-1/8},{DMIN4=8-5/8},{DMAX4=9-5/8},{E=1-7/8},{H=1-1/4},{J=6-7/16},{K=2-5/16},{M=3-1/4},{P=7-1/16},{Q=1-25/64},{S=1/8},{W=1-25/32},{X=1-25/32},{Y=7/8}&hidePortlets=searchHeader |
| Dynamic Load Capacity | 48000 |
| Dynamic Load Capacity (Unit) | POUND_FORCE |
| Expansion Capability | Non-Expansion (Fixed) |
| Grease Name | MobilGrease XHP222 |
| Housing Construction | Split |
| Housing Dimensional Standard | SAF |
| Housing Material | Cast Iron |
| Housing Type | Two-Bolt Pillow Block |
| Insert Material | Steel |
| Lubrication | Grease |
| Maximum Speed | 3400 |
| Maximum Speed (Unit) | RPM |
| Seal Type | Single-Lip Contact |
| Shaft Attachment | Direct Mount |
| Shaft Diameter | 75.0000 |
| Shaft Diameter (Unit) | MILLIMETER |
| Static Load Capacity | 53000 |
| Static Load Capacity (Unit) | POUND_FORCE |
| HTS Code | 8483208080 |
| ECCN | ear99 |
