039165 - Dodge - CP4B048-USAF-807TT USAF
Regular price
$12,601.08 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.

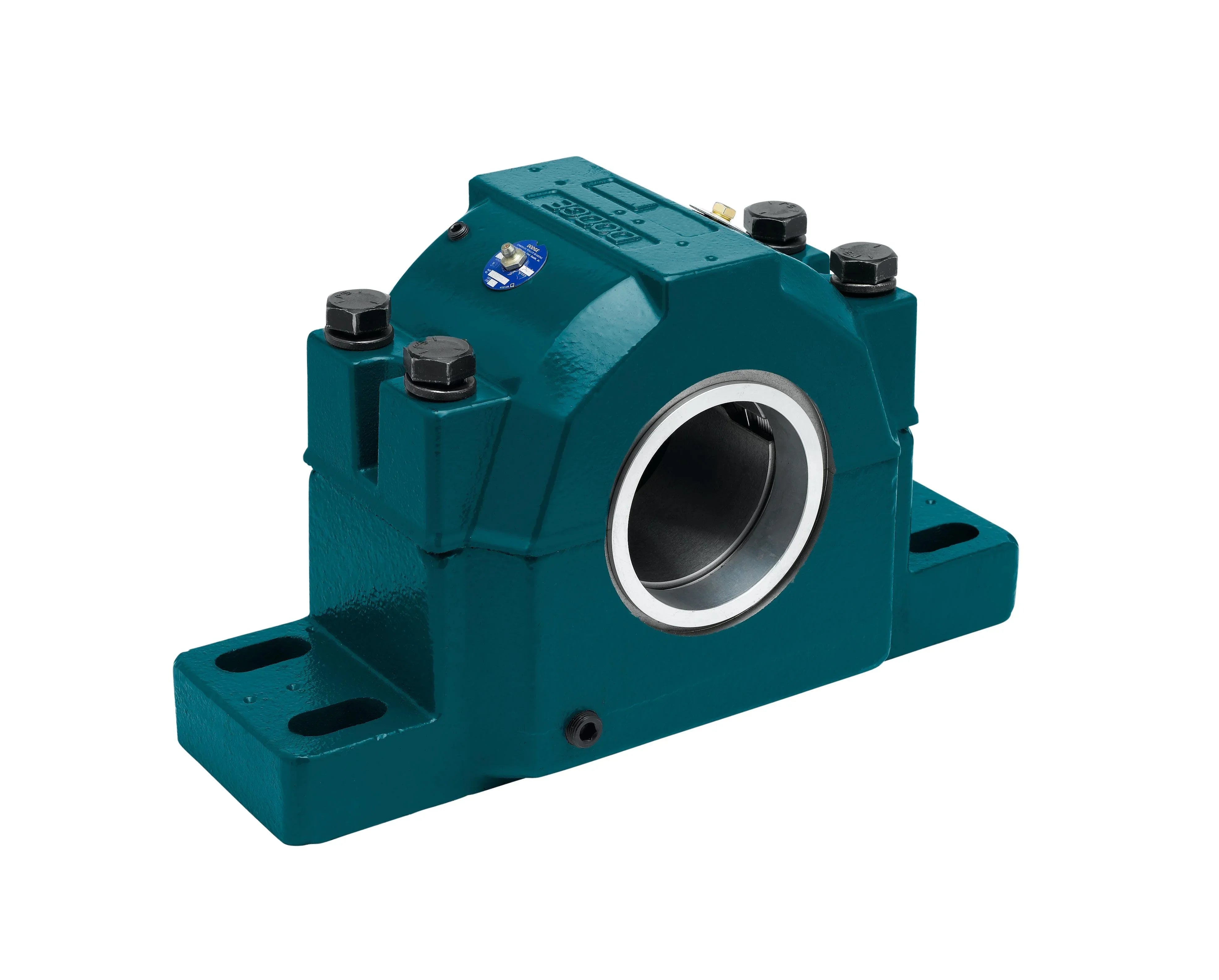

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
039165 - Dodge - CP4B048-USAF-807TT USAF
CP4B048-USAF-807TT USAF
Technical Specifications
| Base to Center Height | 8.2500 |
| Base to Center Height (Unit) | INCH |
| Bearing Component | Mounted Bearing |
| Bearing Type | Spherical Roller |
| Bolt Diameter | 1.2500 |
| Bolt Diameter (Unit) | INCH |
| Bolt to Bolt (Max) | 25.0000 |
| Bolt to Bolt (Max) (Unit) | INCH |
| Bolt to Bolt (Min) | 22.5000 |
| Bolt to Bolt (Min) (Unit) | INCH |
| Bolt Width | 5.0000 |
| Bolt Width (Unit) | INCH |
| Bore Length | 12.0600 |
| Bore Length (Unit) | INCH |
| CAD Link | https://dodge-embedded.partcommunity.com/3d-cad-models/?info=dodge/mounted_bearings/spherical_roller_bearings/saf/complete_pillow_blocks/usaf_500_cp_asmtab.prj&varset={NOB=2},{SS=8-7/16},{SERIES=048},{TT=12-1/16},{L1=9-21/64},{A1=N/A},{B=28-3/4},{C=8},{DMIN2=--},{DMAX2=--},{DMIN4=22-1/2},{DMAX4=25},{E=5},{F2=--},{F4=1-1/4},{H=3-3/8},{J=16-5/8},{K=5-7/16},{M=8-1/4},{P=19},{Q=3-9/16},{S=0},{W=2-1/4},{X=N/A},{Y=N/A}&hidePortlets=searchHeader |
| Dynamic Load Capacity | 260000 |
| Dynamic Load Capacity (Unit) | POUND_FORCE |
| Expansion Capability | Non-Expansion (Fixed) |
| Grease Name | MobilGrease XHP222 |
| Housing Construction | Split |
| Housing Dimensional Standard | SAF |
| Housing Material | Cast Iron |
| Housing Type | Cast Closed Four-Bolt Pillow Block |
| Insert Material | Steel |
| Lubrication | Grease |
| Maximum Speed | 950 |
| Maximum Speed (Unit) | RPM |
| Seal Type | Single-Lip Contact |
| Shaft Attachment | Tapered Adapter |
| Shaft Diameter | 8.4375 |
| Shaft Diameter (Unit) | INCH |
| Static Load Capacity | 490000 |
| Static Load Capacity (Unit) | POUND_FORCE |
| HTS Code | 8483208080 |
| ECCN | ear99 |
