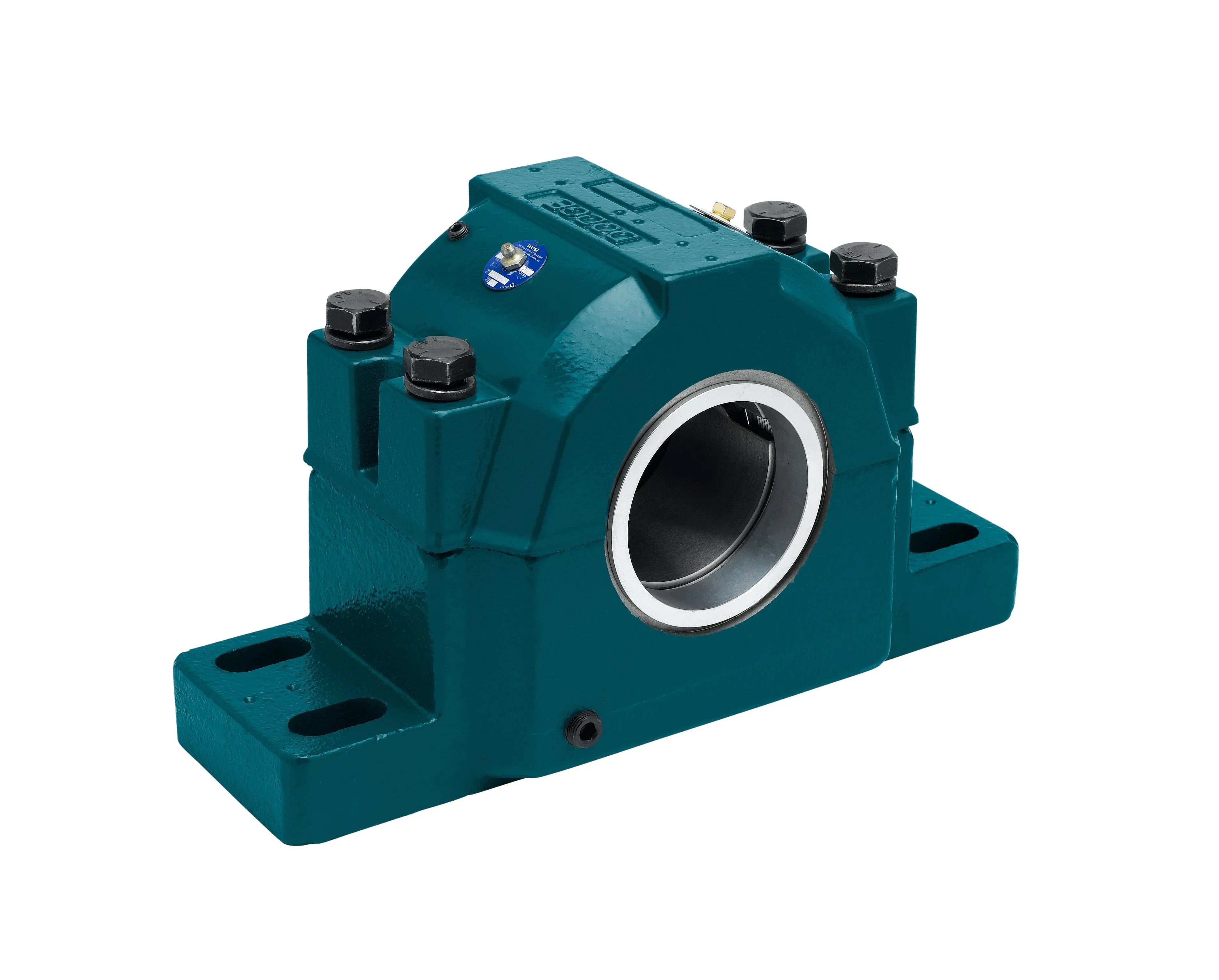

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
039156 - Dodge - CP4B538-USAF-700TT USAF
CP4B538-USAF-700TT USAF
Technical Specifications
| Base to Center Height | 7.8800 |
| Base to Center Height (Unit) | INCH |
| Bearing Component | Mounted Bearing |
| Bearing Type | Spherical Roller |
| Bolt Diameter | 1.2500 |
| Bolt Diameter (Unit) | INCH |
| Bolt to Bolt (Max) | 24.3800 |
| Bolt to Bolt (Max) (Unit) | INCH |
| Bolt to Bolt (Min) | 21.6300 |
| Bolt to Bolt (Min) (Unit) | INCH |
| Bolt Width | 4.5000 |
| Bolt Width (Unit) | INCH |
| Bore Length | 10.6900 |
| Bore Length (Unit) | INCH |
| CAD Link | https://dodge-embedded.partcommunity.com/3d-cad-models/?info=dodge/mounted_bearings/spherical_roller_bearings/saf/complete_pillow_blocks/usaf_500_cp_asmtab.prj&varset={NOB=2},{SS=7},{SERIES=538},{TT=10-11/16},{L1=7-3/8},{A1=10-13/16},{B=28},{C=7-1/2},{DMIN2=--},{DMAX2=--},{DMIN4=21-5/8},{DMAX4=24-3/8},{E=4-1/2},{F2=--},{F4=1-1/4},{H=3-1/8},{J=15-13/16},{K=5-1/16},{M=7-7/8},{P=18},{Q=3-19/64},{S=3/16},{W=2-17/32},{X=4-3/4},{Y=1-39/64}&hidePortlets=searchHeader |
| Dynamic Load Capacity | 270000 |
| Dynamic Load Capacity (Unit) | POUND_FORCE |
| Expansion Capability | Non-Expansion (Fixed) |
| Grease Name | MobilGrease XHP222 |
| Housing Construction | Split |
| Housing Dimensional Standard | SAF |
| Housing Material | Cast Iron |
| Housing Type | Cast Closed Four-Bolt Pillow Block |
| Insert Material | Steel |
| Lubrication | Grease |
| Maximum Speed | 1200 |
| Maximum Speed (Unit) | RPM |
| Seal Type | Single-Lip Contact |
| Shaft Attachment | Tapered Adapter |
| Shaft Diameter | 7.0000 |
| Shaft Diameter (Unit) | INCH |
| Static Load Capacity | 415000 |
| Static Load Capacity (Unit) | POUND_FORCE |
| ECCN | ear99 |
