128477 - Dodge - P2B-DLMAH-108
Regular price
$234.94 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.

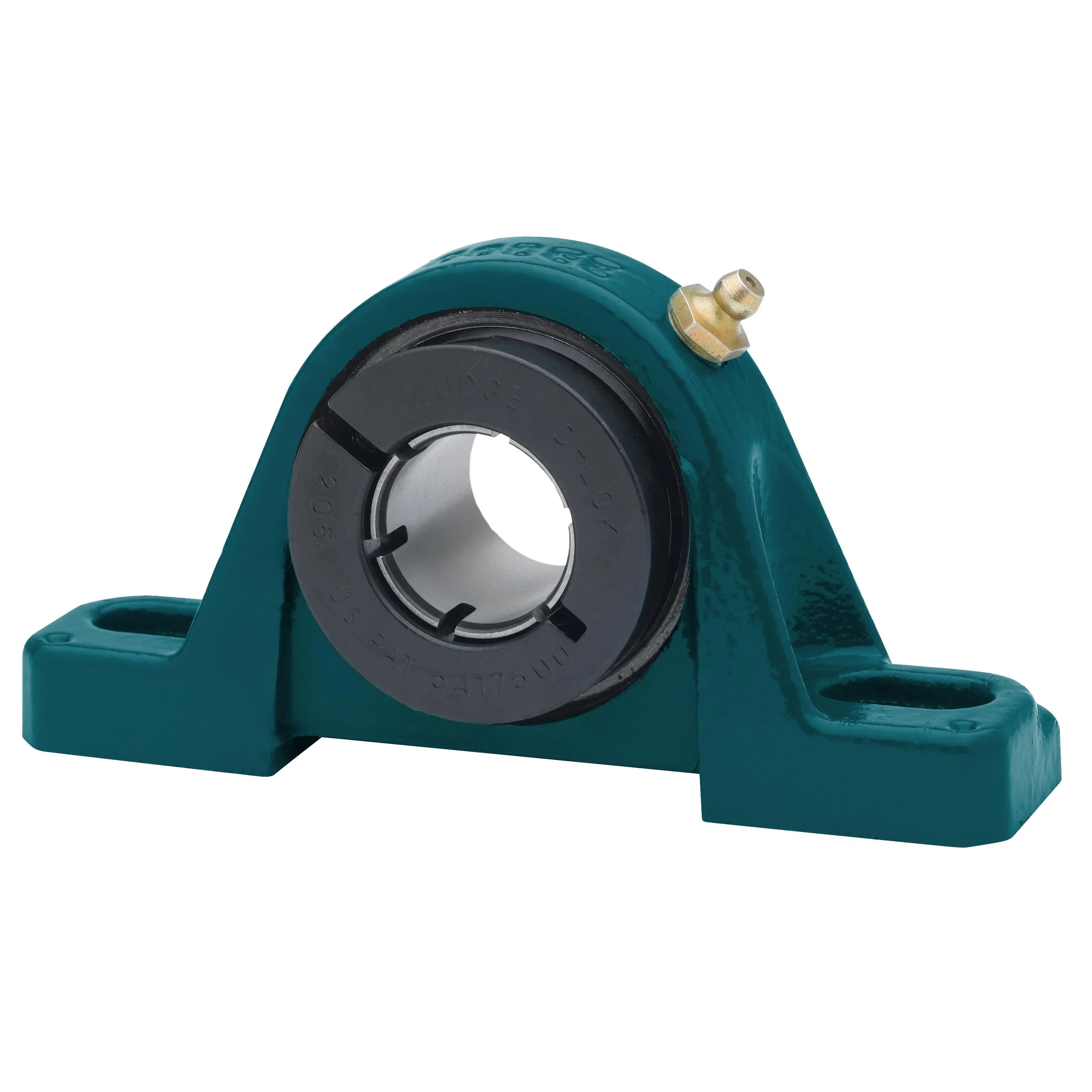

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
128477 - Dodge - P2B-DLMAH-108
P2B-DLMAH-108
Technical Specifications
| Ball Bearing Series | 209 Series |
| Base to Center Height | 2.1300 |
| Base to Center Height (Unit) | INCH |
| Bearing Type | Ball |
| CAD Link | https://dodge-embedded.partcommunity.com/3d-cad-models/?info=dodge/mounted_bearings/ball_bearings/standard/clamp_collar_d_lock/inch/p2b_dlm_air_asmtab.prj&varset={SERIES=209},{SS=1-1/2},{PN=128477},{DESCRIPTION=P2B-DLMAH-108},{WEIGHT=9.2},{A=2.01},{B=7.50},{C=2.13},{DMIN=5.44},{DMAX=6.06},{F=1/2},{G=0.88},{H=0.88},{J=4.44},{L=2.99},{M=2.31},{R=0.75},{S=1.26},{U=3.38},{V=6.75},{W=0.69},{X=0.19}&hidePortlets=searchHeader |
| Dynamic Load Capacity | 7891 |
| Dynamic Load Capacity (Unit) | POUND_FORCE |
| Expansion Capability | Non-Expansion (Fixed) |
| Grease Name | Unirex N2 |
| Housing Material | Cast Iron |
| Housing Type | Two-Bolt Pillow Block |
| Insert Material | Steel |
| Lubrication | Grease |
| Maximum Speed | 5000 |
| Maximum Speed (Unit) | RPM |
| Seal Type | Single-Lip Contact |
| Sensor Ready | Adapter Required |
| Shaft Attachment | Clamp Collar |
| Shaft Diameter | 1.5000 |
| Shaft Diameter (Unit) | INCH |
| Static Load Capacity | 4906 |
| Static Load Capacity (Unit) | POUND_FORCE |
