125919 - Dodge - WSTU-SC-75M
Regular price
$476.93 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.

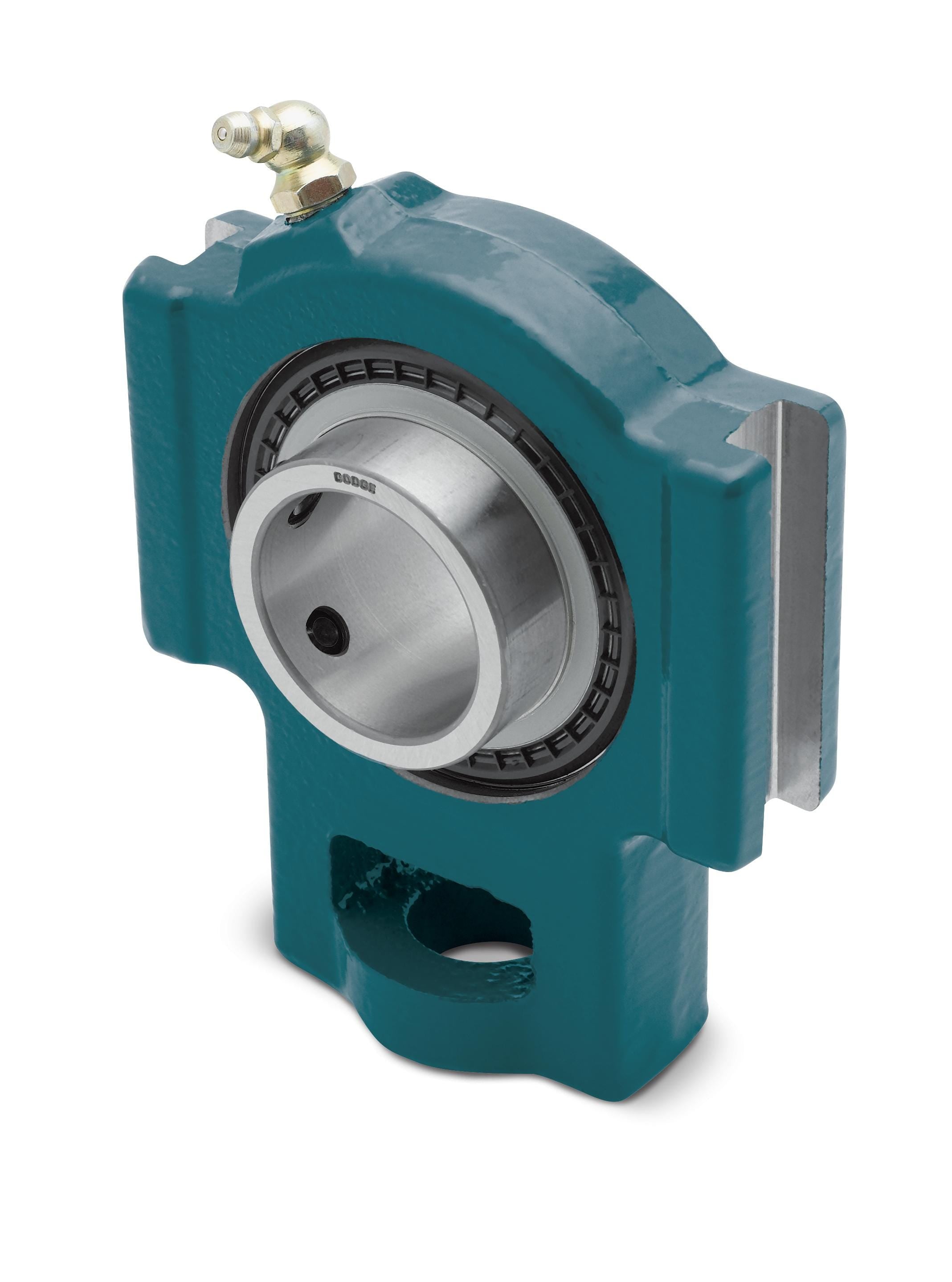

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
125919 - Dodge - WSTU-SC-75M
WSTU-SC-75M
Technical Specifications
| Ball Bearing Series | 215 Series |
| Bearing Type | Ball |
| Bore Length | 2.3300 |
| Bore Length (Unit) | INCH |
| CAD Link | https://dodge-embedded.partcommunity.com/3d-cad-models/?info=dodge/mounted_bearings/ball_bearings/standard/setscrew_sc/metric/take_up/wstu_sc_hm_asmtab.prj&varset={SERIES=215},{SS=75},{PN=125919},{DESCRIPTION=WSTU-SC-75M},{W=8.6},{FS=WS515},{LF=RE-LUBE},{A=59.2},{B=231.9},{C=27.00},{D=120.7},{E=139.7},{F=38.1},{G=20.6},{H=31.8},{J=111.3},{K=69.9},{L=91.9},{M=150.44/151.21},{N=169.9},{R=21.9},{S=37.3},{T=69.9}&hidePortlets=searchHeader |
| Dynamic Load Capacity | 14872 |
| Dynamic Load Capacity (Unit) | POUND_FORCE |
| Expansion Capability | Non-Expansion (Fixed) |
| Grease Name | Unirex N2 |
| Housing Construction | Solid |
| Housing Material | Cast Iron |
| Housing Type | Wide-Slot Take-up |
| Insert Material | Steel |
| Lubrication | Grease |
| Maximum Speed | 1750 |
| Maximum Speed (Unit) | RPM |
| Seal Type | Single-Lip Contact |
| Sensor Ready | Adapter Required |
| Shaft Attachment | Setscrew |
| Shaft Diameter | 75.0000 |
| Shaft Diameter (Unit) | MILLIMETER |
| Static Load Capacity | 11108 |
| Static Load Capacity (Unit) | POUND_FORCE |
| Take-Up Frame Size | WS-515 |
