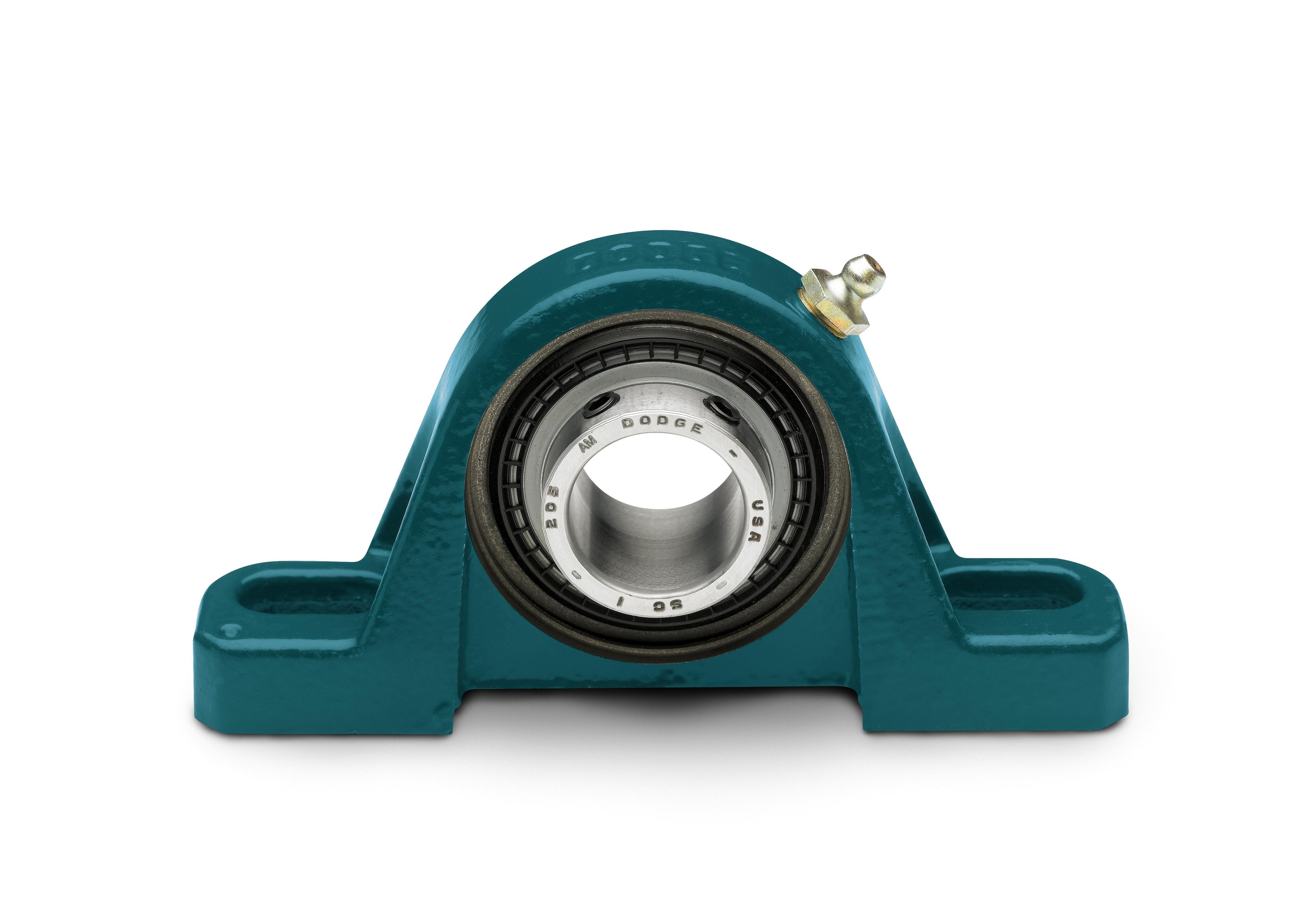

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
123831 - Dodge - P2B-SC-010
P2B-SC-010
Technical Specifications
| Ball Bearing Series | 203 Series |
| Base to Center Height | 1.0600 |
| Base to Center Height (Unit) | INCH |
| Bearing Type | Ball |
| Bolt Diameter | 0.3750 |
| Bolt Diameter (Unit) | INCH |
| Bolt to Bolt (Max) | 4.0600 |
| Bolt to Bolt (Max) (Unit) | INCH |
| Bolt to Bolt (Min) | 3.2500 |
| Bolt to Bolt (Min) (Unit) | INCH |
| Bore Length | 1.0000 |
| Bore Length (Unit) | INCH |
| CAD Link | https://dodge-embedded.partcommunity.com/3d-cad-models/?info=dodge/mounted_bearings/ball_bearings/standard/setscrew_sc/inch/pillow_blocks/p2b_sc_hi_asmtab.prj&varset={SERIES=203},{SS=5/8},{PN=123831},{DESCRIPTION=P2B-SC-010},{WEIGHT=1.0},{LF=RE-LUBE},{A=1.00},{B=5.00},{C=1.20},{DMIN=3.25},{DMAX=4.06},{F=3/8},{G=0.84},{H=0.47},{J=2.14},{L=0.96},{M=1.06},{R=0.36},{S=0.64},{U=2.25},{V=4.50},{W=0.38},{X=0.12}&hidePortlets=searchHeader |
| Dynamic Load Capacity | 2158 |
| Dynamic Load Capacity (Unit) | POUND_FORCE |
| Expansion Capability | Non-Expansion (Fixed) |
| Grease Name | Unirex N2 |
| Housing Construction | Solid |
| Housing Material | Cast Iron |
| Housing Type | Two-Bolt Pillow Block |
| Insert Material | Steel |
| Lubrication | Grease |
| Maximum Speed | 5000 |
| Maximum Speed (Unit) | RPM |
| Seal Type | Single-Lip Contact |
| Sensor Ready | Adapter Required |
| Shaft Attachment | Setscrew |
| Shaft Diameter | 0.6250 |
| Shaft Diameter (Unit) | INCH |
| Static Load Capacity | 1079 |
| Static Load Capacity (Unit) | POUND_FORCE |
| Take-Up Frame Size | LD-10 |
