056797 - Dodge - P2B-SCEZ-103-SH
Regular price
$119.72 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.

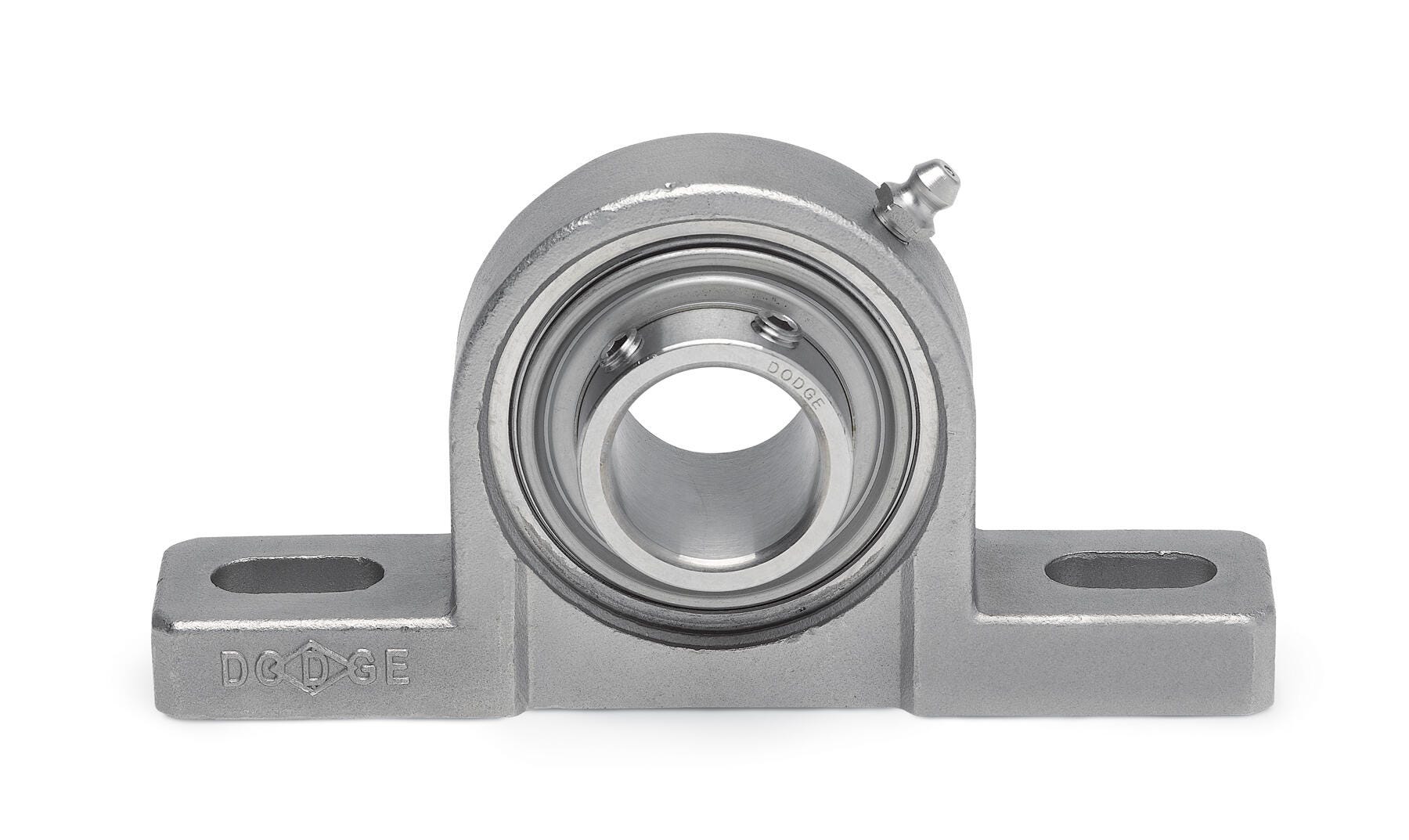

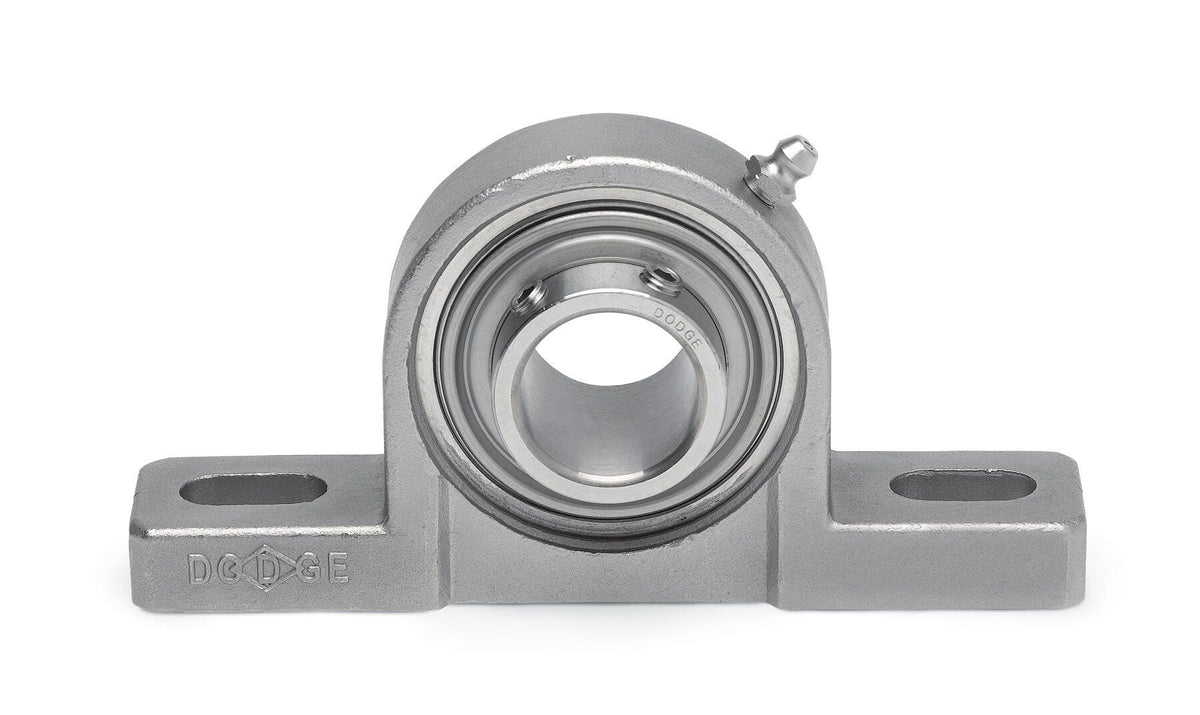

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
056797 - Dodge - P2B-SCEZ-103-SH
P2B-SCEZ-103-SH
Technical Specifications
| Ball Bearing Series | 206 Series |
| Base to Center Height | 1.6300 |
| Base to Center Height (Unit) | INCH |
| Bearing Type | Ball |
| Bolt Diameter | 0.5000 |
| Bolt Diameter (Unit) | INCH |
| Bolt to Bolt (Max) | 5.0000 |
| Bolt to Bolt (Max) (Unit) | INCH |
| Bolt to Bolt (Min) | 4.2500 |
| Bolt to Bolt (Min) (Unit) | INCH |
| Bore Length | 1.5200 |
| Bore Length (Unit) | INCH |
| CAD Link | https://dodge-embedded.partcommunity.com/3d-cad-models/?info=dodge/mounted_bearings/ball_bearings/washdown/ez_kleen/p2b_scez_sh_hi_asmtab.prj&varset={SERIES=206},{SS=1-3/16},{PN=056797},{DESCRIPTION=P2B-SCEZ-103-SH},{W=2.33},{A=1.52},{B=6.25},{C=1.25},{DMIN=4.26},{DMAX=5.00},{F=1/2},{G=0.93},{H=0.53},{J=3.13},{L=1.57},{M=1.63},{R=0.58},{S=0.94}&hidePortlets=searchHeader |
| Dynamic Load Capacity | 4368 |
| Dynamic Load Capacity (Unit) | POUND_FORCE |
| Expansion Capability | Non-Expansion (Fixed) |
| Grease Name | Unirex N2 |
| Housing Construction | Solid |
| Housing Material | Stainless Steel |
| Housing Type | Two-Bolt Pillow Block |
| Insert Material | Steel |
| Lubrication | Grease |
| Maximum Speed | 4500 |
| Maximum Speed (Unit) | RPM |
| Seal Type | Triple-Lip Contact |
| Sensor Ready | Adapter Required |
| Shaft Attachment | Setscrew |
| Shaft Diameter | 1.1875 |
| Shaft Diameter (Unit) | INCH |
| Static Load Capacity | 2538 |
| Static Load Capacity (Unit) | POUND_FORCE |
