039012 - Dodge - LD-30X18-TUFR
Regular price
$463.87 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.

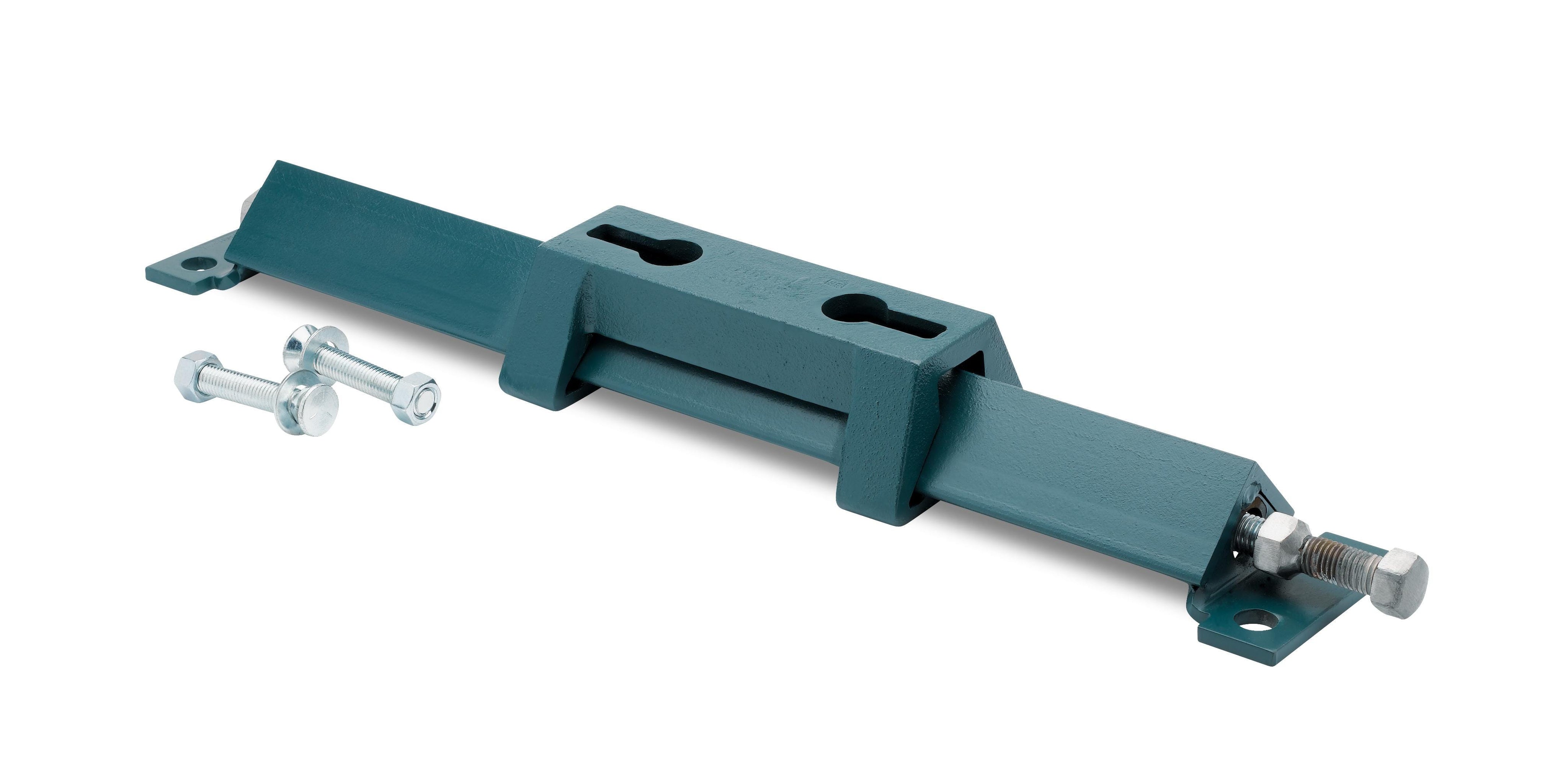

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
039012 - Dodge - LD-30X18-TUFR
LD-30X18-TUFR
Technical Specifications
| CAD Link | https://dodge-embedded.partcommunity.com/3d-cad-models/?info=dodge/mounted_bearings/take_up_frames/standard/light_duty_protected_screw_ld/ld_tuf_body.prj&varset={FS=LD-30x18},{PN=039012},{WEIGHT=21},{B=34-1/4},{C=3-3/4},{D=32-3/4},{E=2-1/2},{F=1/2},{H=1/4},{J=1-3/4},{K=9/16},{L=7-3/8},{N=2-11/16},{O=2-1/8},{P=8-1/2},{Q=2-1/4},{R=8},{AT=21-13/32},{S=3/4},{W=3-3/4},{X=15/16},{YMIN=5-3/4},{YMAX=7},{Z=5/8 x 2-1/2},{ANG=2 x 2 x 5/16},{KO=0.31500},{HEX=1.12500},{HEXWIDTH=0.42000}&hidePortlets=searchHeader |
| Take-Up Frame Travel | 18.0000 |
| Take-Up Frame Travel (Unit) | INCH |
