036352 - Dodge - TP-10X24-TUFR
Regular price
$730.84 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.

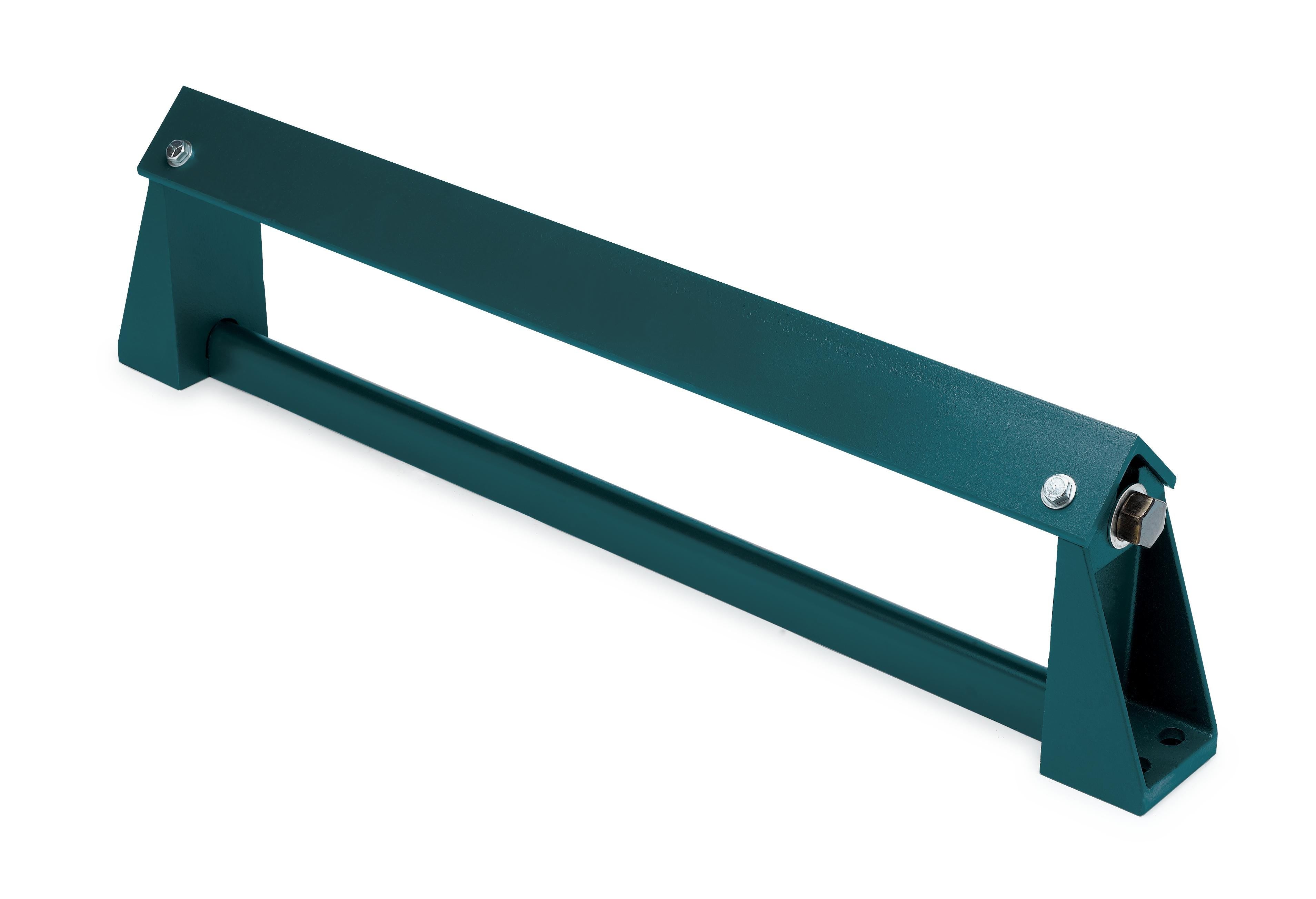

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
036352 - Dodge - TP-10X24-TUFR
TP-10X24-TUFR
Technical Specifications
| CAD Link | https://dodge-embedded.partcommunity.com/3d-cad-models/?info=dodge/mounted_bearings/take_up_frames/standard/top_angle_tp/tap_tuf_body.prj&varset={FS=TP10},{NT=24},{PN=036352},{WEIGHT=41},{B=40-1/2},{C=3-1/2},{D=38-1/2},{E=--},{F=5/8},{G=1},{H=3/4},{J=8-1/2},{K=3},{M=3-15/16},{R=6-11/32},{S=3/4},{T=26-1/2},{U=6},{W=5-5/32},{MTOPN=036401},{MTODE=TP-10X48-TUFR},{MTOWEIGHT=62}&hidePortlets=searchHeader |
| Take-Up Frame Travel | 24.0000 |
| Take-Up Frame Travel (Unit) | INCH |
