141049 - Dodge - P4B-DI-150ML-HT
Regular price
$11,756.89 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.

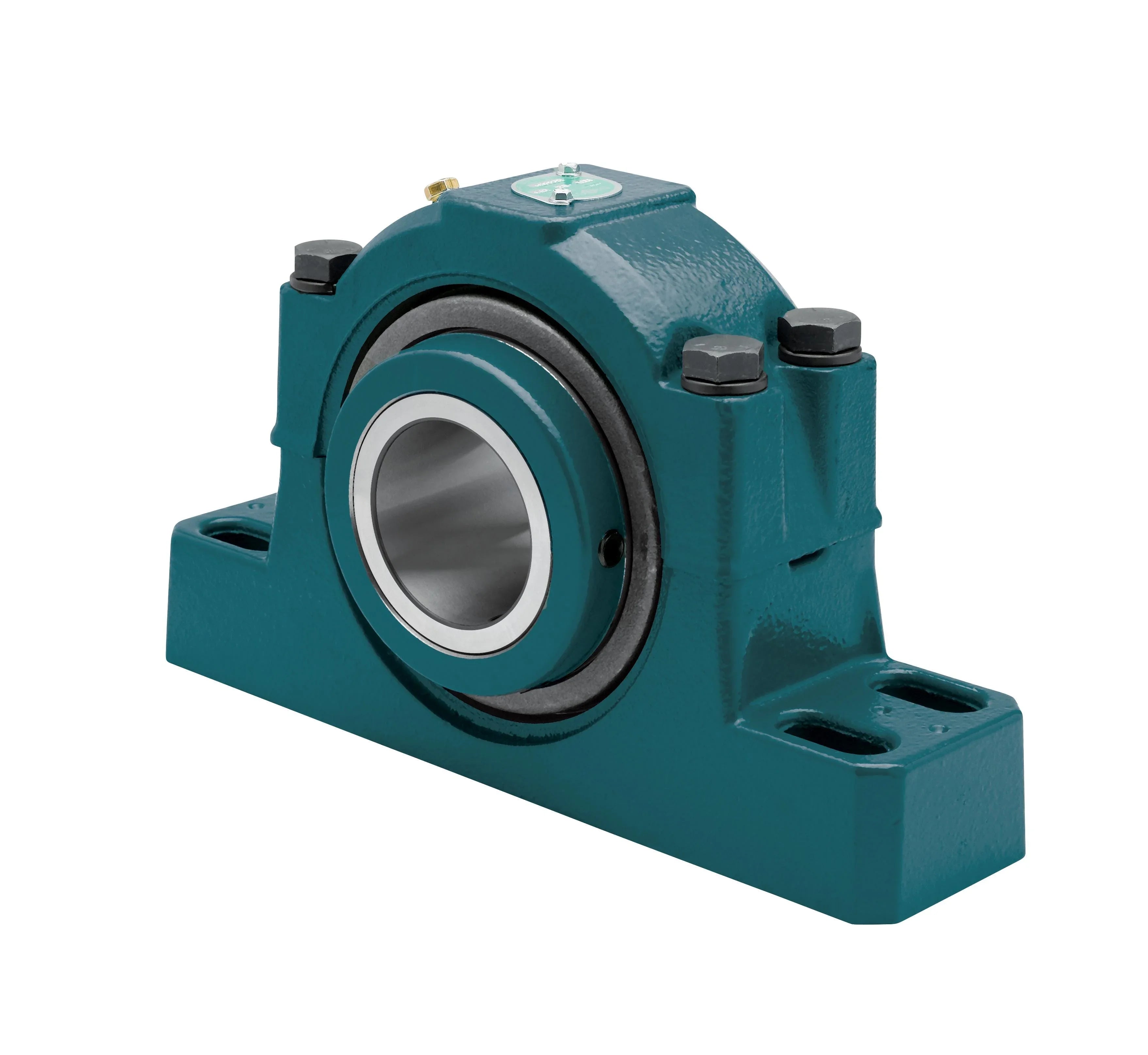

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
P4B-DI-150ML-HT
Dodge Mounted Bearing Resources
Mounted Bearings Solution Guide (PDF)Mounted Bearings Nomenclature Chart (PDF)Mounted Bearings Catalog (PDF)| Specifications | |
|---|---|
| Base to Center Height | 180.975 mm |
| Bearing Type | Tapered Roller |
| Bolt Diameter | 25.4 mm |
| Bolt to Bolt (Max) | 66.675 mm |
| Bolt to Bolt (Min) | 482.6 mm |
| Bolt Width | 76.2 mm |
| Bore Length | 228.6 mm |
| Dynamic Load Capacity | 181043 lbf |
| Expansion Capability | Non-Expansion (Fixed) |
| Greasable | Yes |
| Grease Name | MobilGrease HTS #2 |
| Housing Construction | Split |
| Housing Material | Cast Iron |
| Housing Type | Four-Bolt Pillow Block |
| Insert Material | Steel |
| Lubrication | Grease |
| Maximum Speed | 915 RPM |
| Seal Type | Labyrinth |
| Sensor Ready | Yes |
| Shaft Attachment | Set Screw |
| Shaft Diameter | 150 mm |
| Static Load Capacity | 1574670 lbf |
| Suitable for High Temperature | Yes |
