139313 - Dodge - F4S-IP-075MLE-DRY
Regular price
$953.04 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.

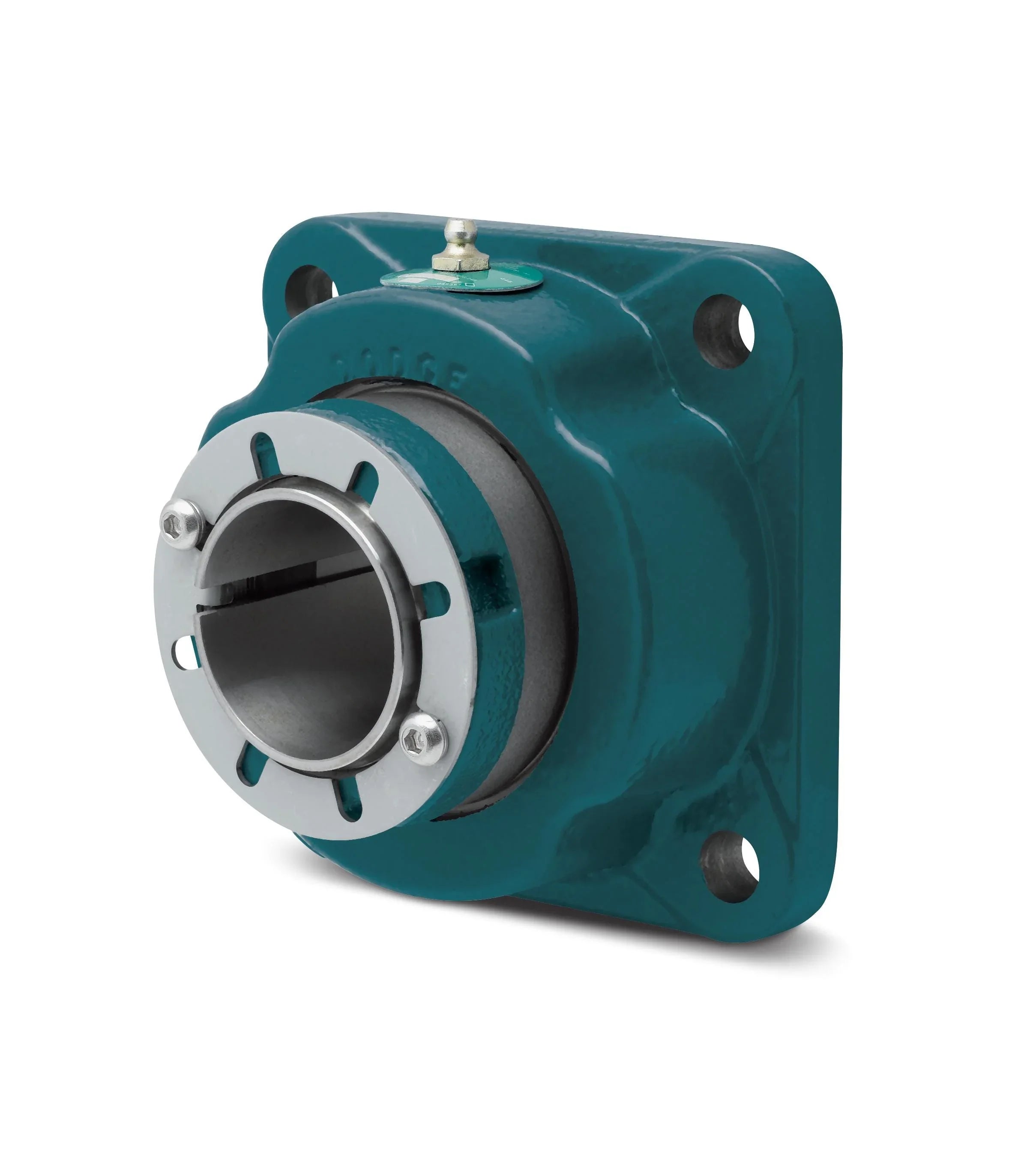

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
F4S-IP-075MLE-DRY
Dodge Mounted Bearing Resources
Mounted Bearings Solution Guide (PDF)Mounted Bearings Nomenclature Chart (PDF)Mounted Bearings Catalog (PDF)| Specifications | |
|---|---|
| Bearing Component | Mounted Bearing |
| Bearing Type | Spherical Roller |
| Bolt Circle | 200.152 mm |
| Bolt Diameter | 19.05 mm |
| Bolt to Bolt (Max) | 141.224 mm |
| Bolt to Bolt (Min) | 141.224 mm |
| Bolt Width | 0 mm |
| Bore Length | 88.9 mm |
| Dynamic Load Capacity | 184601 N |
| Expansion Capability | Expansion (Float) |
| Expansion Field Convertible | Yes |
| Greasable | Yes |
| Housing Construction | Solid |
| Housing Dimensional Standard | S-2000 |
| Housing Material | Cast Iron |
| Housing Type | Four-Bolt Flange (Square) |
| Insert Material | Steel |
| Insert Outer Diameter | 130 mm |
| Maximum Speed | 3400 RPM |
| Seal Type | Labyrinth |
| Sensor Ready | Yes |
| Shaft Attachment | Push-Pull Adapter |
| Shaft Diameter | 75 mm |
| Static Load Capacity | 235756 N |
